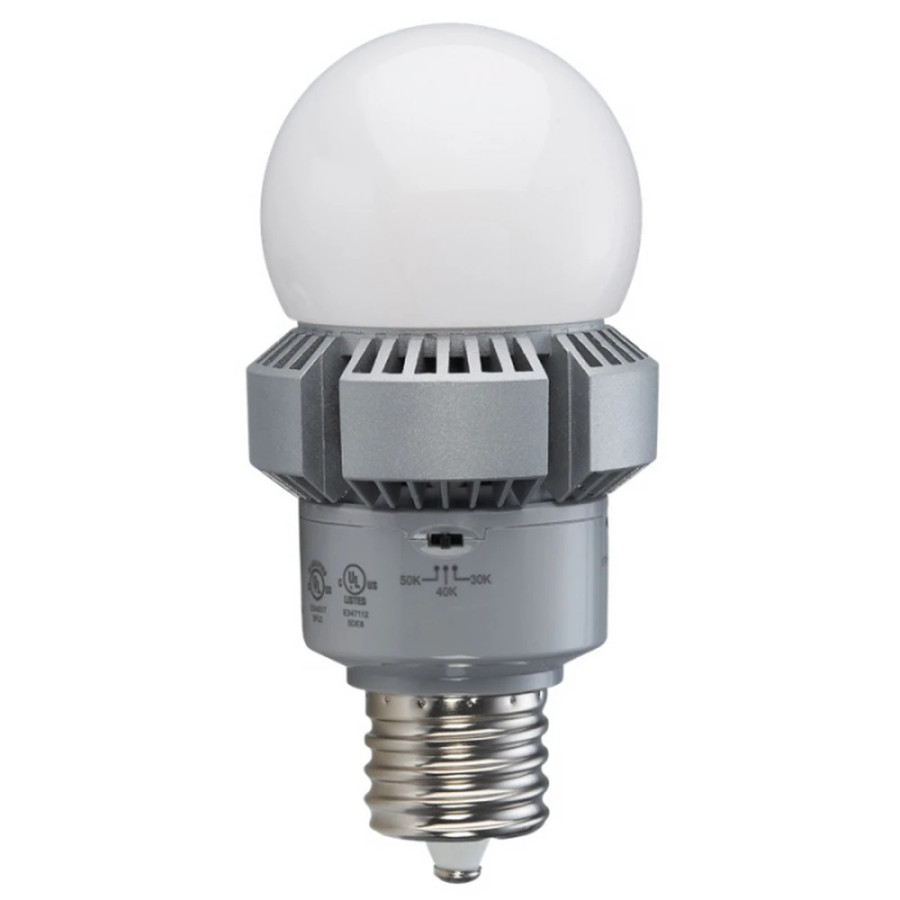

Light Efficient Design’s LED-8021M345-G3 is a high-output A23 LED lamp designed to replace HID lighting in a variety of post-top, bollard, and high-ceiling downlight applications. It delivers broad, even light distribution while operating at 120–277V, and provides selectable color temperatures to suit different spaces—from 3000K (warm) to 5000K (daylight). The lamp is frost-frosted to help minimize glare and is wired with an integrated driver that is pretested and potted, offering robustness against vibration and moisture. With a rated life of up to 50,000 hours, this 65W LED alternative is designed to replace a 200W HID source, delivering significant energy savings in enclosed and damp locations.
Key features include CCT selectable output at 3000K, 4000K, or 5000K, a side-mounted dimming control on the lamp for stepped adjustment, and an EX39 mogul base for compatibility with established HID fixtures. The design is rated for damp locations and enclosed fixtures, and the IP64 rating indicates a level of protection against dust and splash, making it suitable for outdoor or semi-exposed environments. The lamp’s frost lens helps reduce glare while maintaining good lumen output, and its 4.7-inch diameter with a 9.2-inch length keeps form factor aligned with typical A23/Mogul screw-in lamps.
Practical considerations include the lamp’s compatibility with fixtures designed for high-lumen LED upgrades and its energy-star certification, which reflects energy efficiency targets. The selectable color temperature capability allows installers to tailor lighting to the space without carrying multiple SKUs, while the 65W draw and up-to-50,000-hour life contribute to maintenance and operating-cost considerations in facilities upgrading from HID technology.
Features:
- 120-277V operation
- CCT selectable: 3000K, 4000K, 5000K
- Side-mounted dimmer switch (steps) and compatible with other wired protocols
- 8,450–8,775 lumens, 65W, Energy Star
- EX39 mogul base; A23 shape
- Damp location and enclosed fixture rated
- IP64-rated protection
- 50,000 hour rated life; equivalent to 320W HID
- Brand:
- Light Efficient Design
- Manufacturer Part Number:
- LED-8021M345-G3
- UPC:
- 844006080228
- Lumens:
- 8,450 Lumens
- Wattage:
- 65 Watts
- Input Voltage:
- 120-277V
- Color Temperature:
- 3000K, 4000K, 5000K
- Color:
- Frosted
- Lamp / Base Type:
- EX39 Mogul
- Lamp Shape:
- A23
- Rated Hours:
- 50,000 Hours
- Equivalent:
- 320W HID
- Min Operating Temp:
- -40 Degrees F
- CRI:
- 80+
- Special Features:
- CCT Selectable, Enclosed Fixture Rated, Energy Star Rated
- Length:
- 9.2
- Diameter:
- 4.7
- Package Size:
- Each
