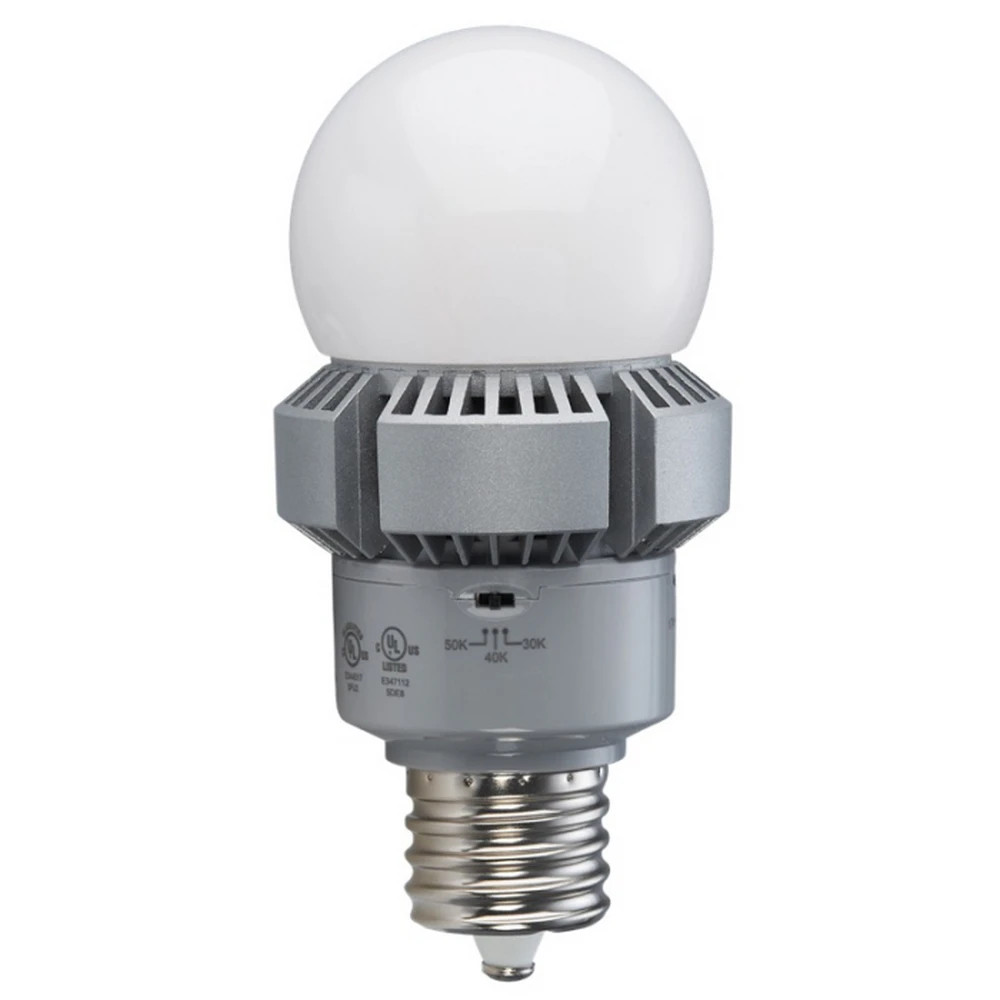

The Light Efficient Design LED-8020M345-G3 is a high-output A23-style LED lamp designed to replace 200 W HID lighting in a compact form factor. It provides broad, even illumination suitable for post-tops, bollards, low-bay, and high-ceiling downlight applications. The lamp features a frosted lens to help reduce glare and a compact EX39 mogul base for easy retrofit into compatible fixtures. With a rated life of 50,000 hours and damp location as well as enclosed-fixture ratings, the design supports durable operation across variable environments.
This model offers selectable color temperature, allowing the user to choose from 3000 K (warm), 4000 K (neutral), or 5000 K (cool daylight) to match ambient lighting preferences or task requirements. It operates on 120–277 V, which provides flexibility for multi-voltage systems without the need for a separate driver. The built-in driver is pretested and potted, with vibration and moisture protection, contributing to reliability in installations where fixture orientation or exposure to elements is a concern. The light is rated at 45 W and delivers approximately 5,850–6,075 lumens, providing a useful substitute for HID performance while benefiting from energy efficiency.
Considerations for installation and use include ensuring the fixture is listed for LED replacements with an EX39 mogul base and that the application is suitable for damp and enclosed environments. The combination of energy-star recognition and a 50,000-hour life expectancy supports long-term operation in commercial or outdoor-lit settings where maintenance intervals are a factor. This lamp’s 7.9-inch length and 3.9-inch diameter, along with its frosted appearance, influence fit and light distribution in the chosen luminaire.
Features:
- 120-277V operation
- CCT-selectable: 3000K, 4000K, or 5000K
- Side-switch dimming to 50%
- Equivalent to 250W HID
- Frosted lens reduces glare
- EX39 Mogul base
- Damp location rated and enclosed fixture rated
- Brand:
- Light Efficient Design
- Manufacturer Part Number:
- LED-8020M345-G3
- UPC:
- 844006080211
- Lumens:
- 5,850 Lumens
- Wattage:
- 45 Watts
- Input Voltage:
- 120-277V
- Color Temperature:
- 3000K, 4000K, 5000K
- Color:
- Frosted
- Lamp / Base Type:
- EX39 Mogul
- Lamp Shape:
- A23
- Rated Hours:
- 50,000 Hours
- Equivalent:
- 250W HID
- Min Operating Temp:
- -40 Degrees F
- CRI:
- 80+
- Special Features:
- CCT Selectable, Enclosed Fixture Rated, Energy Star Rated
- Length:
- 7.9
- Diameter:
- 3.9
- Package Size:
- Each
