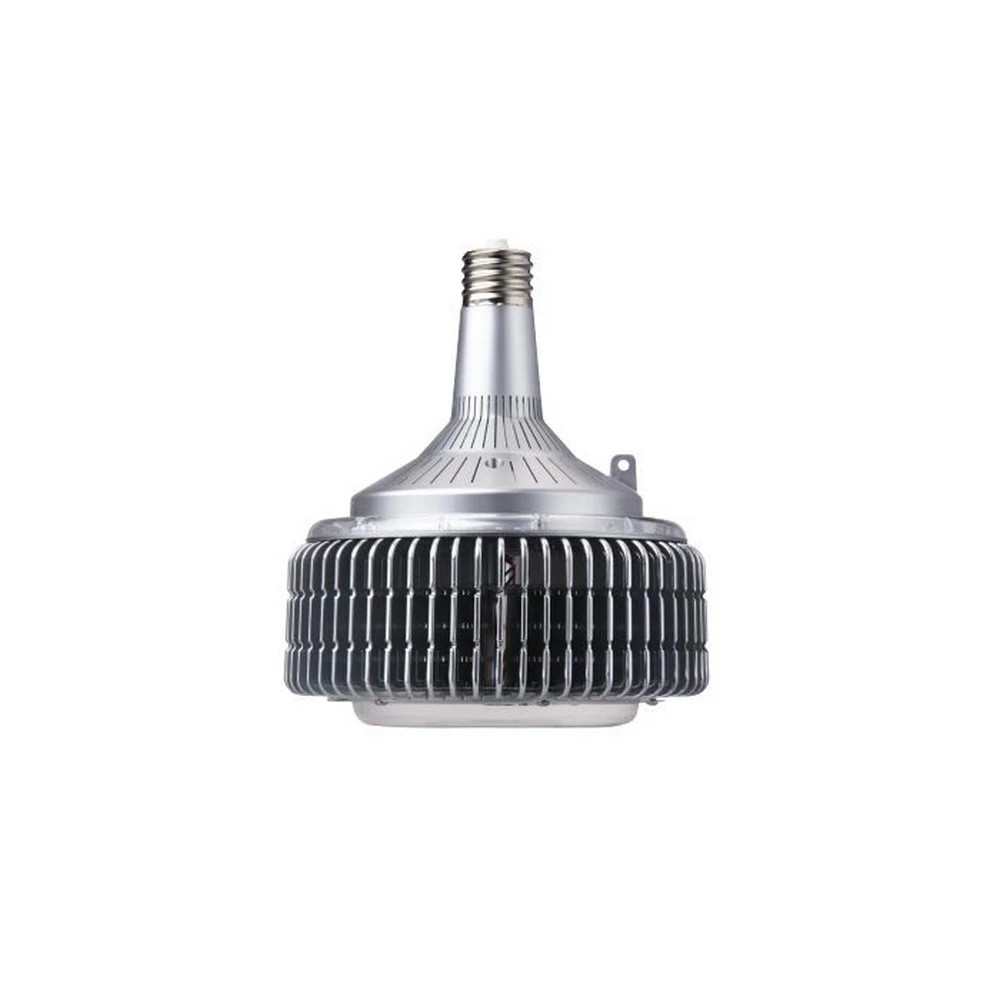

The LED-8130M50D is a high performance LED high bay retrofit designed to replace a 400W HID in open fixtures and damp locations. It is a 150-watt, 5000K high-lumen solution that delivers approximately 21,200 lumens with a Mogul EX39 base, enabling straightforward retrofits in industrial and commercial lighting applications. The unit features a US-designed LED driver that is pretested and burnt in three times before shipping, providing protection against vibration and moisture and helping ensure long-term reliability in challenging environments. A notable design element is the integrated ring of uplight, which can contribute to distributing light more effectively within a space, while the fanless construction supports silent operation in noise-sensitive areas.
This lamp is rated for a wide input range of 120-277V and supports 0-10V dimming, offering flexibility for varying lighting control strategies. Built for durability, the fixture is rated for damp locations and open fixtures, and it operates down to -40°F and up to 122°F, expanding its suitability for exposure to temperature extremes. It also includes dual stage MOV protection with 10kA surge protection, which helps mitigate voltage transients in demanding industrial environments. With a rated life of 50,000 hours, the LED-8130M50D aims to reduce maintenance frequency relative to legacy HID solutions.
Consider this retrofit when upgrading existing high bay or large storefront lighting where immediate energy savings and reduced cooling loads are priorities. Because the design uses an EX39 Mogul base, verify compatibility with your luminaire’s socket and physical fit; measure height and diameter to ensure clearance. While the product page lists the key electrical and optical characteristics, always confirm mounting, dimming wiring, and electrical compatibility with your facility’s controls and electrical system before installation.
Features:
- 120-277V / Type B ballast bypass operation
- 0-10V dimmable
- Equivalent to 400W HID fixtures
- Mogul EX39 base with uplight ring
- Fanless, silent operation
- Dual stage MOV protection with 10kA surge protection
- Damp location and open fixture rated
- U.S.A. designed driver, pretested and burn-in
- Brand:
- Light Efficient Design
- Manufacturer Part Number:
- LED-8130M50D
- UPC:
- 844006077648
- Lumens:
- 21,200 Lumens
- Wattage:
- 150 Watts
- Input Voltage:
- 120-277V
- Dimmable:
- 0-10V
- Color Temperature:
- 5000K
- Lamp / Base Type:
- EX39 Mogul
- Rated Hours:
- 50,000 Hours
- Equivalent:
- 400W HID
- Min Operating Temp:
- -40 Degrees F
- CRI:
- 80+
- Diameter:
- 8.7
- Height:
- 10
- Package Size:
- Each
