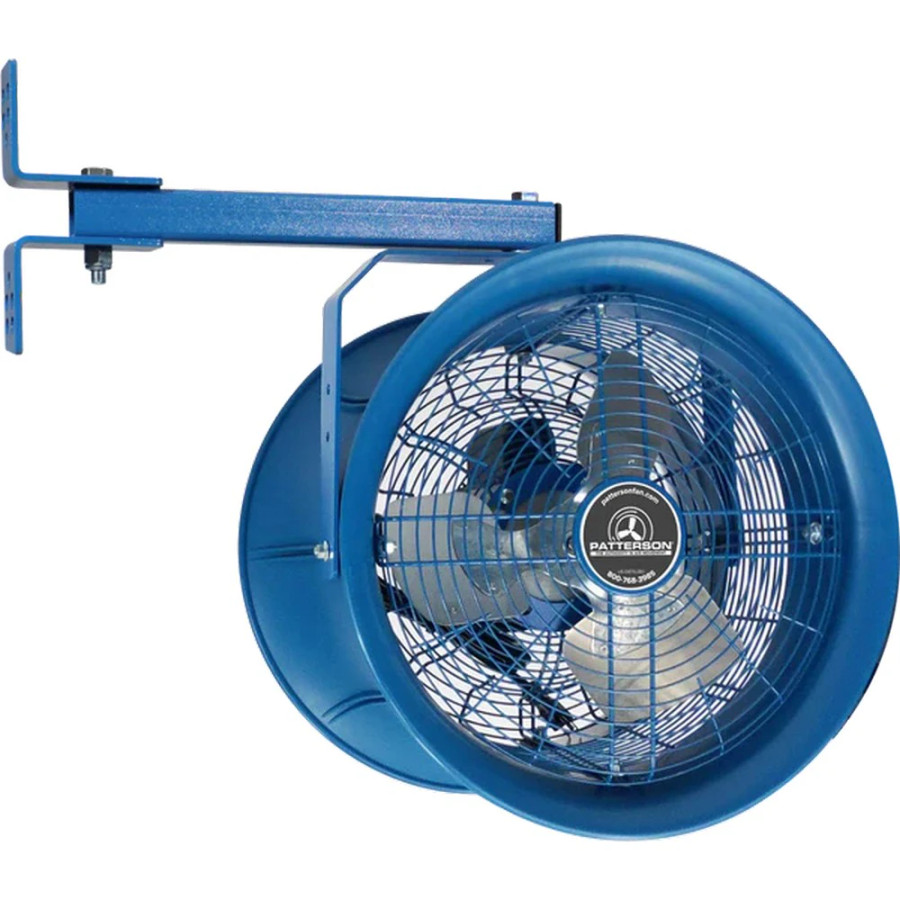

The Patterson RM30B high-velocity fan is designed for demanding industrial spaces where effective air movement is essential. This 30-inch, direct-drive unit delivers strong airflow to help improve ventilation in aisles, workstations, pick modules, and staging or shipping areas. It features a durable combination of high-impact polypropylene and heavy-gauge steel construction, with a patented Venturi barrel design and side air intakes to project and entrain air over long distances. The unit is available with multiple voltage options (ranging from 115V to 460V) and offers maintenance-free, direct-drive motors with sealed, long-lasting bearings, reducing downtime and upkeep. An OSHA-compliant steel finger guard is included to help protect personnel in busy environments, and the system can be specified with an oscillator kit if wider air coverage is required. The RM30B is built for versatility, providing 12,000 CFM with a 200-foot air throw and a reported sound level around 82–86 dB(A) at typical operating distances, making it suitable for large facility spaces where noise and energy usage are considerations.
Practical use of this fan centers on enhancing air circulation in high-traffic zones while contributing to condensation control and employee comfort in areas where localized ventilation is needed. The unit ships as a standalone fan; it does not include a cord for all voltage configurations, though a 12-foot cord is standard for 115V installations with an optional switch. With eight mounting options and optional oscillator kits, it can be adapted to various facility layouts and workflows. When selecting this model, verify voltage compatibility, mounting configuration, and rotor speed (standard 1800 RPM, with a 1200 RPM option) to align performance with your space requirements and noise tolerance.
Features:
- 30" diameter two-blade galvalum propeller
- High-impact polypropylene housing with heavy-gauge steel construction
- Patented Venturi-designed barrels for efficient airflow
- Maintenance-free, direct-drive motors with sealed bearings
- Multiple voltages: 115V–460V
- RPM: 1800 standard; 1200 optional
- OSHA-compliant steel finger guards
- Eight mounting options and optional oscillator kits
- Propeller:
- 30” Diameter, 2-Blade Galvalum, 15°
- Fan Inlet/Outlet:
- High-Impact Polypropylene
- Finger Guards:
- OSHA-Compliant
- Power Cord (115V Only):
- 12’ Length (Switch Optional)
- RPM:
- 1800 (standard)/ 1200 (optional)
- Decibels:
- 82.2 @ 20’ - 85.5 @ 3 inches (1800)
- Coverage:
- 12,000 ft²
- Warranty:
- 2 Years
- CFM:
- 12,000
- HP:
- 1
- Width:
- 37 inches
- Depth:
- 22 inches
- Air Throw:
- 200’
- Weight:
- 99 lbs
- Package Size:
- Each
