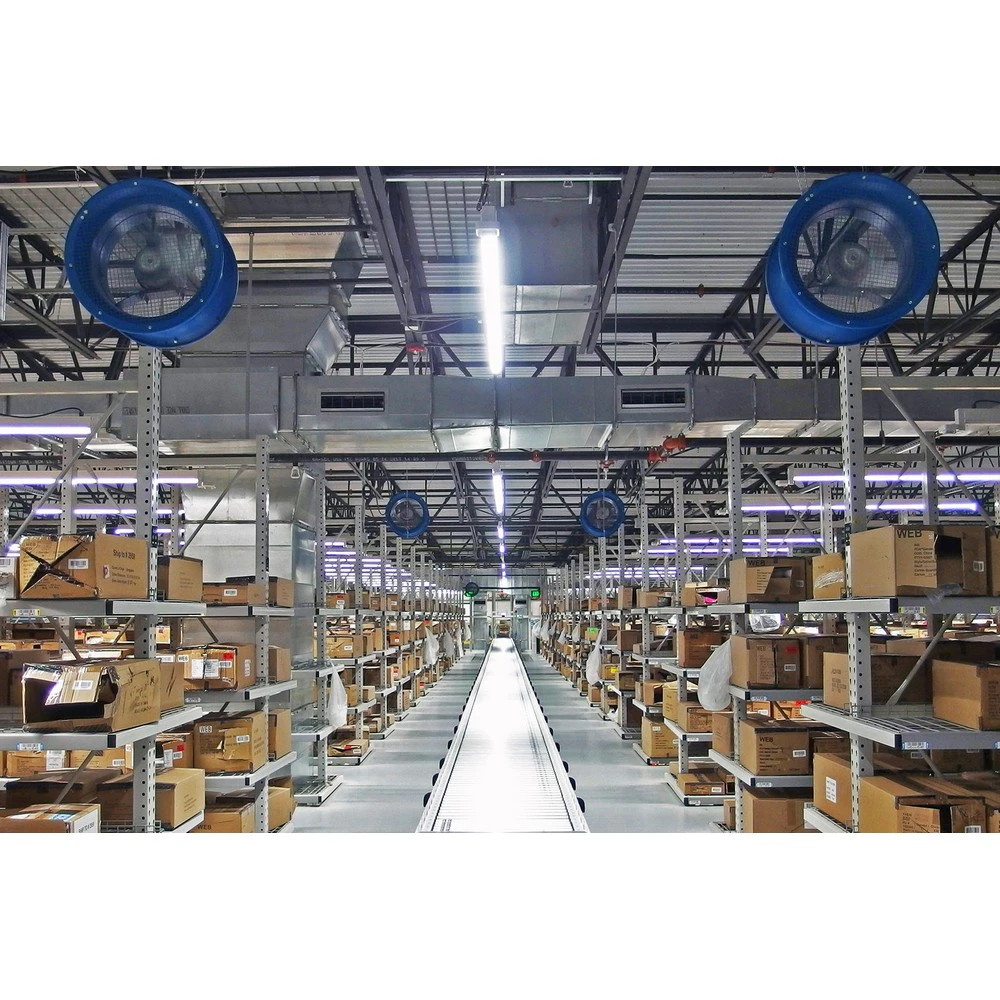

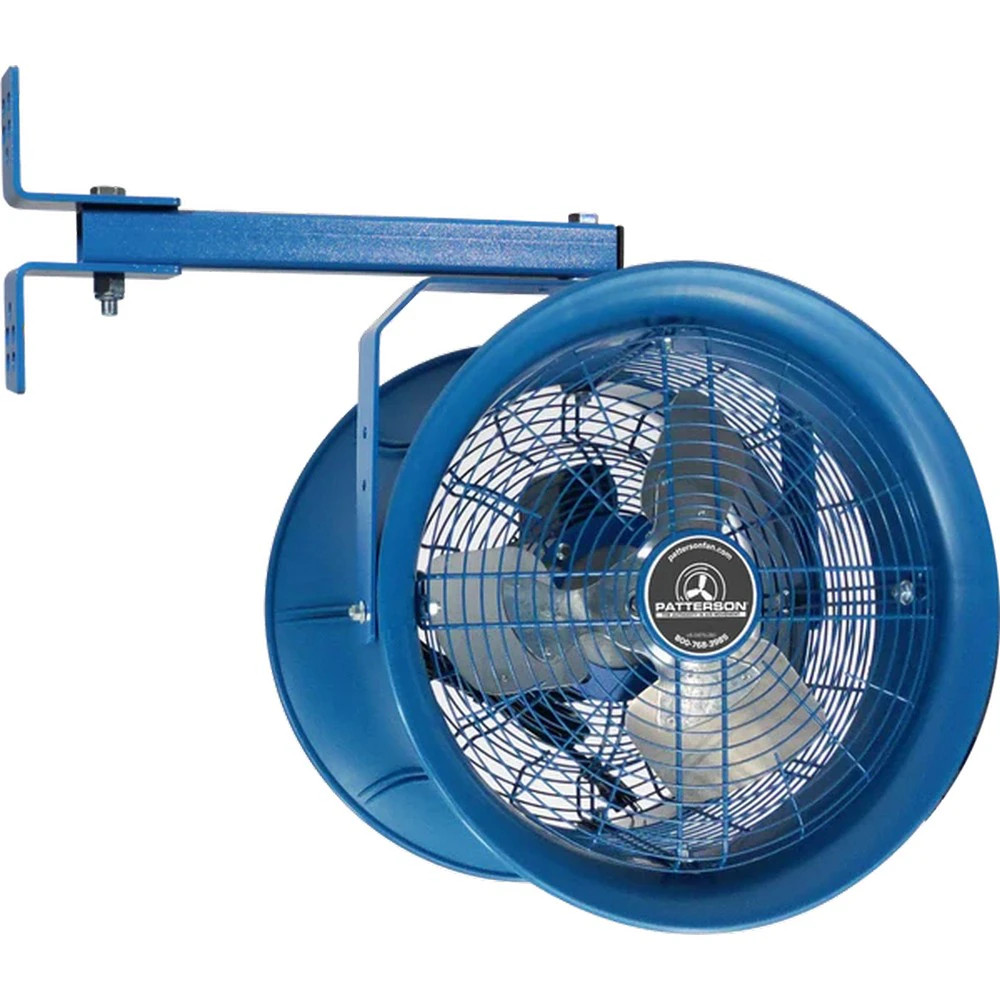

Patterson RM26B high-velocity wall- or rack-mount fan is designed to move substantial volumes of air in industrial settings. With a 26-inch propeller and a three-blade galvalume design, this unit delivers high airflow to help ventilate aisles, workstations, pick modules, and shipping areas. The fan is built around a ventilated barrel with side air intakes and a heavy-gauge steel frame paired with high-impact polypropylene components, creating a durable, maintenance-friendly solution for demanding environments. The direct-drive motor is custom-spec and maintenance-free, with sealed bearings and a totally enclosed design to minimize service needs while supporting extended operation at multiple voltages.
Key features include OSHA-compliant steel finger guards, eight mounting options for flexible installation, and optional oscillator kits to broaden air distribution. The RM26B model supports voltages from 115V to 460V and is available with variable-speed motors in some configurations, providing control to match room size and changing conditions. A 12-foot power cord is included on 115V units, and typical operation yields substantial air movement, backed by a two-year warranty. These attributes together help improve air circulation, aiding in employee comfort, condensation control, and overall workspace productivity.
When selecting this Patterson high-velocity fan, consider the area to ventilate and the distance air needs to travel. The 26-inch unit is rated for large coverage areas, with an air throw designed to reach across substantial spaces. Proper mounting and adherence to guard and electrical requirements will influence performance and safety. The product ships as a single unit and is compatible with multiple installation scenarios thanks to its broad mounting options and robust construction.
Features:
- 26" diameter, 3-blade Galvalum propeller
- High-impact polypropylene housing with heavy-gauge steel construction
- Patented Venturi-designed barrels for efficient airflow
- Direct-drive maintenance-free motor with sealed bearings
- Multiple voltages: 115V–460V; adjustable RPM (1800 standard / 1200 optional)
- OSHA-compliant steel finger guards
- Eight mounting options and optional oscillator kits
- 12 ft power cord for 115V installations (No cord for some configurations)
- Propeller:
- 26” Diameter, 3-Blade Galvalum, 18°
- Fan Inlet/Outlet:
- High-Impact Polypropylene
- Finger Guards:
- OSHA-Compliant
- Power Cord (115V Only):
- 12’ Length (Switch Optional)
- RPM:
- 1800 (standard)/ 1200 (optional)
- Decibels:
- 80.8 @ 20’ - 85.2 @ 3’ (1800)/ 75.7 @ 20' - 81.3 @ 3' (1200)
- Coverage:
- 6100 ft²
- Warranty:
- 2 Years
- CFM:
- 7650
- HP:
- 1
- Width:
- 33”
- Depth:
- 18.5”
- Air Throw:
- 150’
- Weight:
- 93 lbs
- Package Size:
- Each
