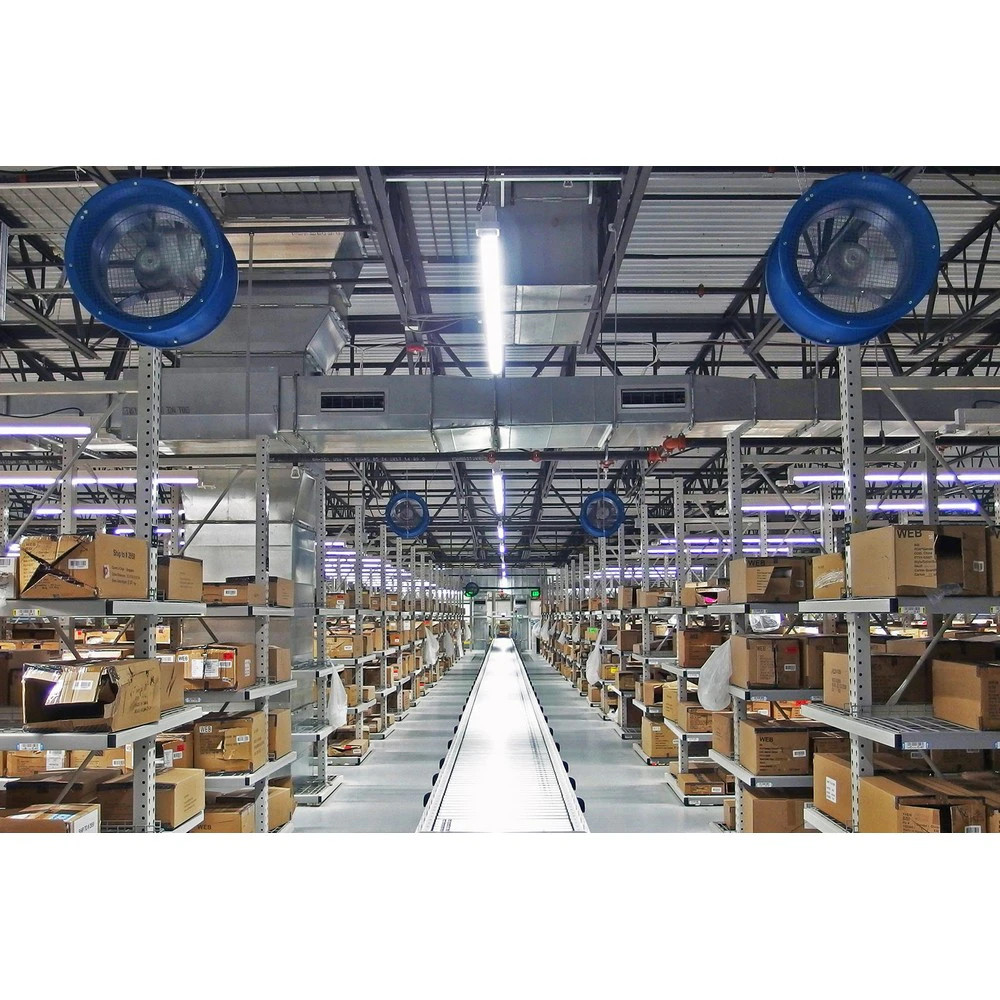

The Patterson PB34B High Velocity Fan is a large-diameter, direct-drive ventilation solution designed for demanding industrial settings such as warehouses, manufacturing floors, and shipping/receiving areas. With a 34-inch propeller and a compact footprint, this unit delivers high-volume air movement over long distances to improve air circulation, help with condensation control, and provide targeted cooling where workers are stationed or moving along aisles and workstations.
Construction combines a high-impact polypropylene housing with heavy-gauge steel, reinforced for durability in rugged environments. The patented Venturi-designed barrels and side air intakes optimize airflow projection and entrainment, enabling effective coverage up to about 230 feet from the source. The fan uses maintenance-free, direct-drive motors with sealed bearings and a totally enclosed design, reducing downtime and service requirements. It accommodates multiple voltages from 115V to 460V, with options for variable-speed motors in the 14"–22" range, and there are eight mounting configurations to fit a variety of facility layouts. OSHA-compliant steel finger guards add a layer of operator protection where needed.
This model ships without a cord and includes a robust set of mounting and installation options to suit fixed or portable configurations. Its performance specifications—up to 17,000 CFM, 3 HP, 1200 RPM, and a sound level around 88 dB at 20 feet—reflect its role as a high-velocity contributor to improved air movement in larger spaces. When planning use, consider the power requirements, mounting geometry, and appropriate guarding to ensure compliant, effective ventilation in your specific application.
Features:
- 34" diameter, 3-blade galvalum propeller
- High-impact polypropylene housing with heavy-gauge steel construction
- Venturi-designed barrels for improved airflow
- Direct drive, maintenance-free motors with sealed bearings
- Supports 115V–460V and multiple voltage configurations
- Eight mounting options and optional oscillator kits
- OSHA-compliant steel finger guards
- 12' power cord (115V only); 2-year warranty
- Propeller:
- 34” Diameter, 3-Blade Galvalum, 15°
- Fan Inlet/Outlet:
- 14-Gauge Spun Steel
- Finger Guards:
- OSHA-Compliant
- Power Cord:
- N/A
- RPM:
- 1200
- Decibels:
- 88 @ 20’
- Coverage:
- 17,000 ft²
- Warranty:
- 2 Years
- CFM:
- 17,000
- HP:
- 3
- Width:
- 43.5”
- Depth:
- 25.5”
- Air Throw:
- 230’
- Weight:
- 215 lbs
- Package Size:
- Each
