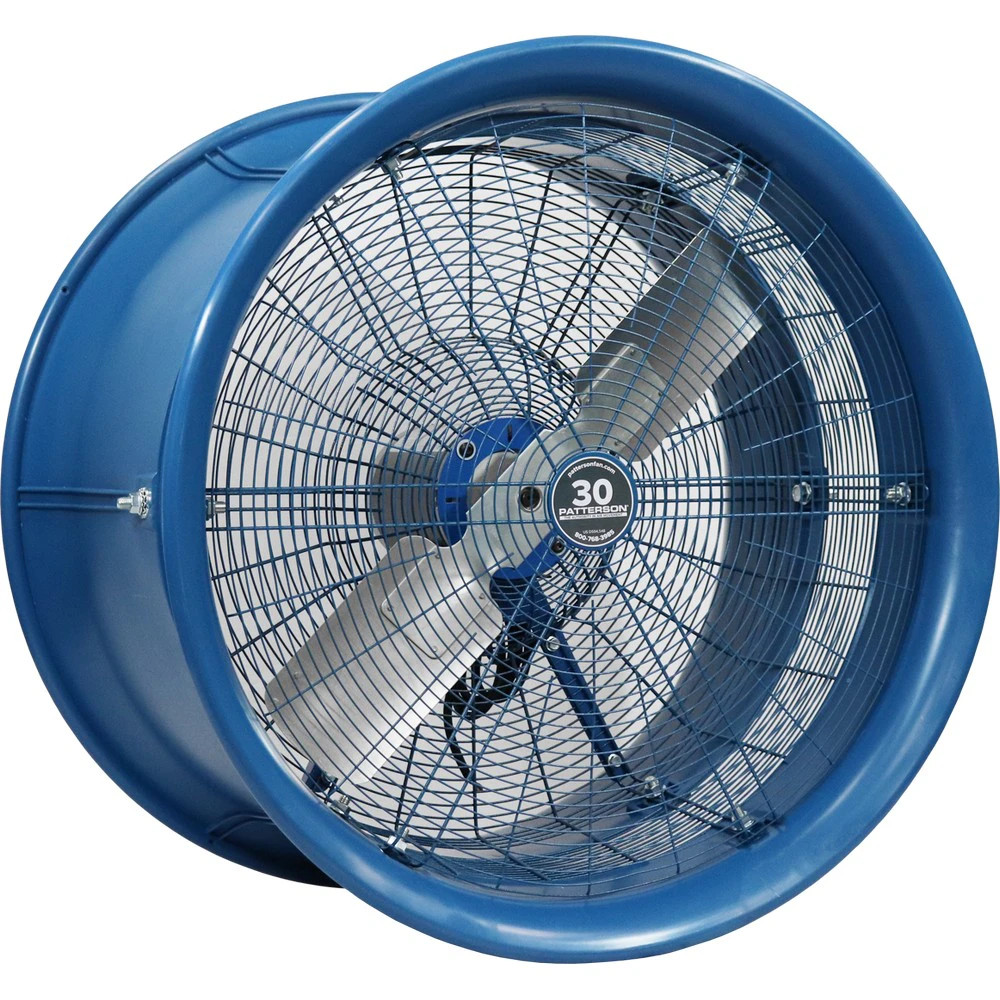

The Patterson CS30B High Velocity Fan is an industrial-strength 30-inch, direct-drive air mover designed for demanding factory, warehouse, and staging areas. It features a robust propeller assembly and Venturi-designed barrels to project and entrain air efficiently, helping to improve air circulation, reduce condensation, and provide localized cooling in aisles, workstations, and loading zones. The unit is built for durability with a high-impact polypropylene fan housing paired with heavy-gauge steel construction, and it includes OSHA-compliant steel finger guards for enhanced safety where personnel are present.
This model offers flexible electrical compatibility with multiple voltages from 115V up to 460V, and it provides options for variable speed motors (through 14"–22" configurations) to tailor airflow to changing conditions. The standard configuration includes a 12-foot power cord for 115V operation, and the design supports a variety of mounting arrangements with eight different mounting options to fit varied site layouts. The CS30B is designed for maintenance-free operation thanks to custom-spec, direct-drive motors with sealed bearings, reducing downtime and service needs. The unit’s measured performance, including a 12,000 CFM airflow rating and an air throw up to 200 feet, makes it suitable for moving large volumes of air across extensive spaces while minimizing noise—an important consideration in noise-sensitive or occupied areas.
When planning installation, consider the application environment and required air movement. The unit’s 2-year warranty provides coverage for typical industrial use, and optional oscillator kits may be added to broaden the oscillation pattern for more uniform coverage. Ensure compatibility with the chosen voltage source and confirm mounting hardware and space for the 37-inch width, 22-inch depth, and 99-pound weight when selecting a location and service plan.
Features:
- 30" diameter, 2-blade galvalum propeller
- Multi-volt operation: 115V–460V
- Maintenance-free direct-drive motor with sealed bearings
- Venturi-designed barrels for efficient airflow
- OSHA-compliant steel finger guards
- Eight mounting options; optional oscillator kits
- 12' power cord included (115V model)
- Propeller:
- 30” Diameter, 2-Blade Galvalum, 15°
- Fan Inlet/Outlet:
- High-Impact Polypropylene
- Finger Guards:
- OSHA-Compliant
- Power Cord (115V Only):
- 12’ Length (Switch Optional)
- RPM:
- 1800 (standard)/ 1200 (optional)
- Decibels:
- 82.2 @ 20’ - 85.5 @ 3’ (1800)
- Coverage:
- 12,000 ft²
- Warranty:
- 2 Years
- CFM:
- 12,000
- HP:
- 1
- Width:
- 37”
- Depth:
- 22”
- Air Throw:
- 200’
- Weight:
- 99 lbs
- Package Size:
- Each
