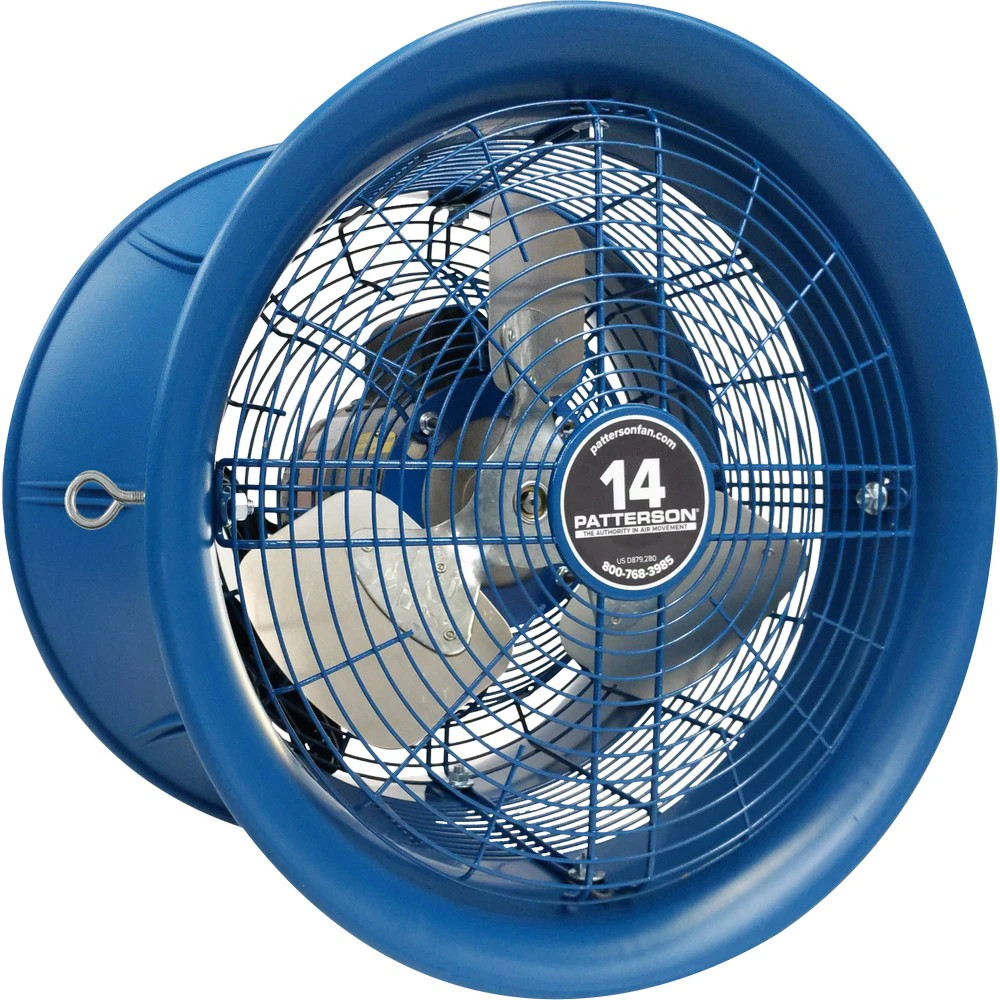

Patters on Patterson Fan BC14B High Velocity Fan is a 14-inch, industrial-grade air mover designed for demanding factory and warehouse environments. This unit delivers high-volume airflow with a compact footprint, making it suitable for projecting air through aisles, around pick modules, and across workstations. The 14" diameter three-blade propeller moves air efficiently, creating a broad sweep and an extended air throw to help with cooling, condensation control, and overall ventilation in busy spaces.
Constructed with a durable combination of high-impact polypropylene housing and heavy-gauge steel components, the fan features patented Venturi-designed barrels and side air intakes to optimize air entrainment and projection. The motors are custom-spec, direct-drive, maintenance-free, and fully enclosed with long-lasting sealed bearings, reducing maintenance needs. The unit is available in multiple voltages from 115V to 460V and can be configured with variable-speed options for precise airflow control. An OSHA-compliant steel finger guard is included for safety, and the system offers multiple mounting options (up to eight) to adapt to varied installations. Depending on the model, a 12' power cord is provided for 115V installations.
This Patterson high-velocity fan is designed to enhance worker comfort and workspace conditions by improving air movement in hot or stagnant areas while contributing to condensation management. When selecting, consider the 2600 CFM rating, 60' air throw, and the footprint 20"W x 16"D with an approximate weight around 35 lb to ensure it fits your space and meets your mounting or clearances. The product comes with a two-year warranty, reflecting its intended use in rugged environments and the manufacturer’s confidence in its durability.
Features:
- 14" diameter, 3‑blade galvalum propeller
- High-Impact Polypropylene housing with heavy‑gauge steel construction
- Venturi‑designed barrels for efficient airflow
- Side air intakes for improved performance
- Maintenance-free direct-drive motors with sealed bearings
- Multiple voltages: 115V–460V
- Eight mounting options and optional oscillator kits
- OSHA-compliant steel finger guards
- 12' power cord (115V only)
- 2-year warranty
- Propeller:
- 14” Diameter, 3-Blade Galvalum, 37°
- Fan Inlet/Outlet:
- High-Impact Polypropylene
- Finger Guards:
- OSHA-Compliant
- Power Cord (115V Only):
- 12’ Length (Switch Optional)
- RPM:
- 1725
- Decibels:
- 63.1 @ 20’ - 73.1 @ 3’
- Coverage:
- 1800 ft²
- Warranty:
- 2 Years
- CFM:
- 2600
- HP:
- 1/4
- Width:
- 20”
- Depth:
- 16”
- Air Throw:
- 60’
- Weight:
- 35 lbs
- Package Size:
- Each
