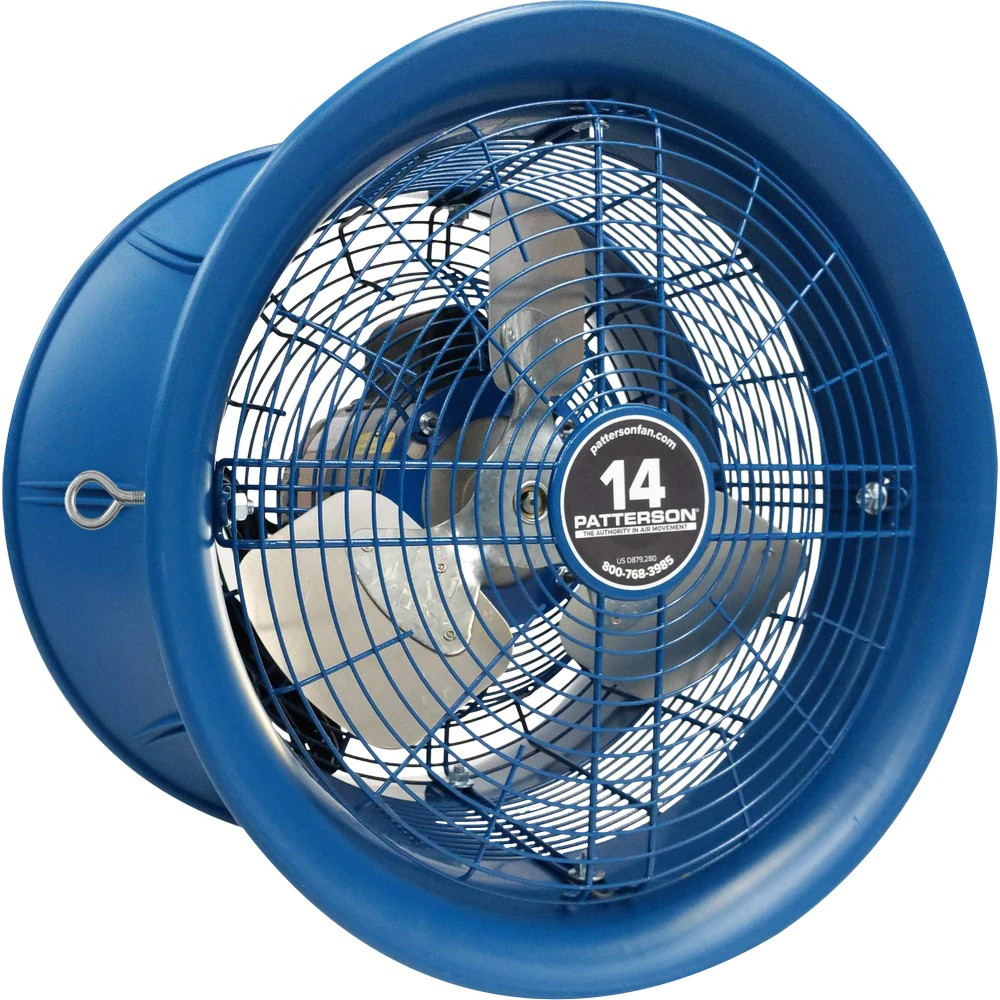

The Patterson BC14A High Velocity Fan is a durable ceiling- or beam-mount ventilation solution designed for demanding industrial spaces like factories, warehouses, aisles, and staging areas. This 14-inch, 3-blade unit combines a heavy-gauge steel frame with a high-impact polypropylene housing, delivering a focused blast of air to improve circulation, aid condensation control, and help keep work zones cooler for employees.
Key construction features include the patented Venturi-designed barrels and side air inlets, which work together to project and entrain air over a considerable distance. The direct-drive, maintenance-free motor is custom-spec and maintenance-free, with sealed bearings and a totally enclosed design to resist dust and debris common in industrial environments. The unit is offered in multiple voltages (115V–460V) and can be paired with an optional oscillator kit for broader air distribution. OSHA-compliant steel finger guards provide a measure of safety in high-traffic work areas, and the fan ships with a 12 ft power cord when operated at 115V.
In practical terms, this fan delivers up to 2600 CFM and a 60 ft approximate air throw, making it suitable for larger open areas or where direct airflow requirements are needed across aisles and workstations. With eight mounting options available, installation can be tailored to fit specific facility layouts. Consider pairing with compatible mounting hardware and accessories, and plan for routine maintenance of the sealed bearings to preserve performance. This product is listed with a 2-year warranty, reflecting The Safety Source’s commitment to reliable, long-term support.
Designed to meet the needs of industrial environments without compromising safety or performance, the BC14A emphasizes robust construction and flexible electrical options while offering practical features that support versatile placement and easy integration into existing safety and ventilation plans.
Features:
- 14" diameter, 3-blade galvalume propeller
- High-impact polypropylene housing with heavy-gauge steel construction
- Patented Venturi-designed barrels
- Direct-drive, maintenance-free motors with sealed bearings
- Multiple voltages: 115V–460V (115V version includes 12' cord)

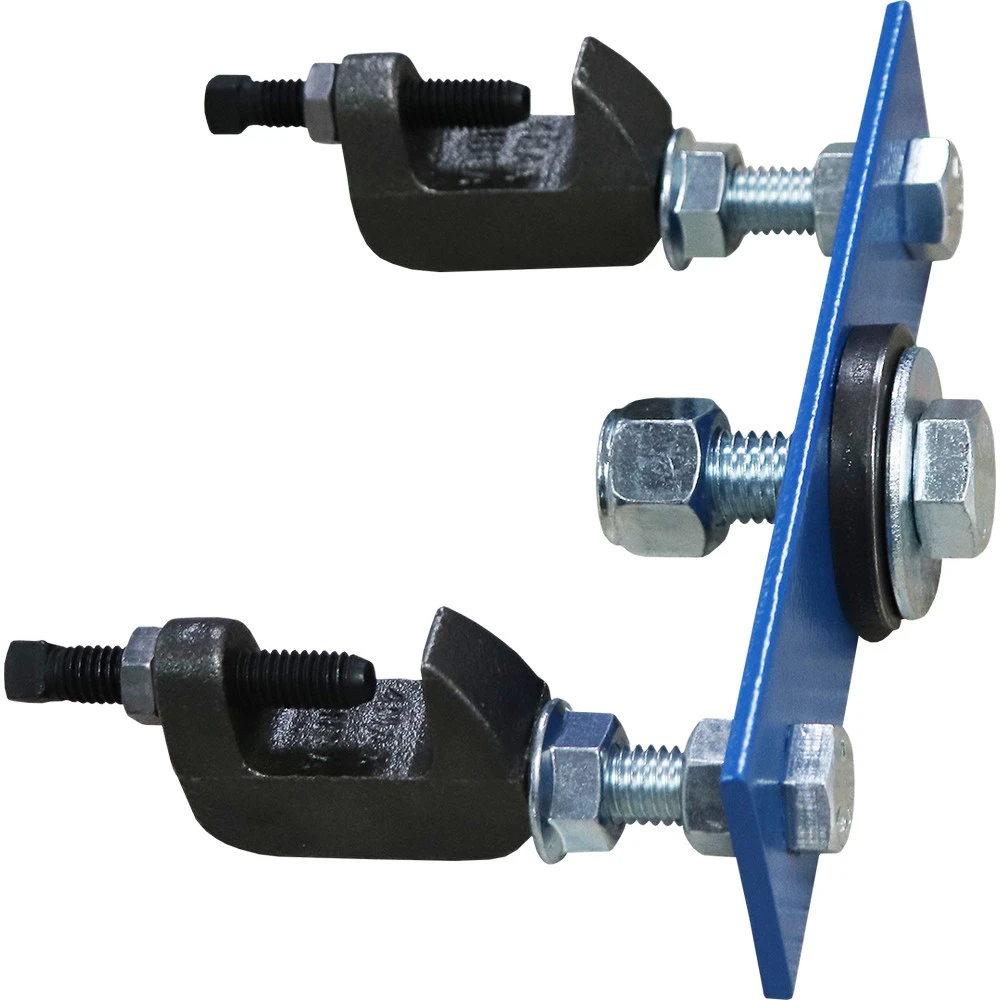

- Eight mounting options and optional oscillator kits
- OSHA-compliant steel finger guards
- Propeller:
- 14” Diameter, 3-Blade Galvalum, 37°
- Fan Inlet/Outlet:
- High-Impact Polypropylene
- Finger Guards:
- OSHA-Compliant
- Power Cord (115V Only):
- 12’ Length (Switch Optional)
- RPM:
- 1725
- Decibels:
- 63.1 @ 20’ - 73.1 @ 3’
- Coverage:
- 1800 ft²
- Warranty:
- 2 Years
- CFM:
- 2600
- HP:
- 1/4
- Width:
- 20”
- Depth:
- 16”
- Air Throw:
- 60’
- Weight:
- 35 lbs
- Package Size:
- Each
