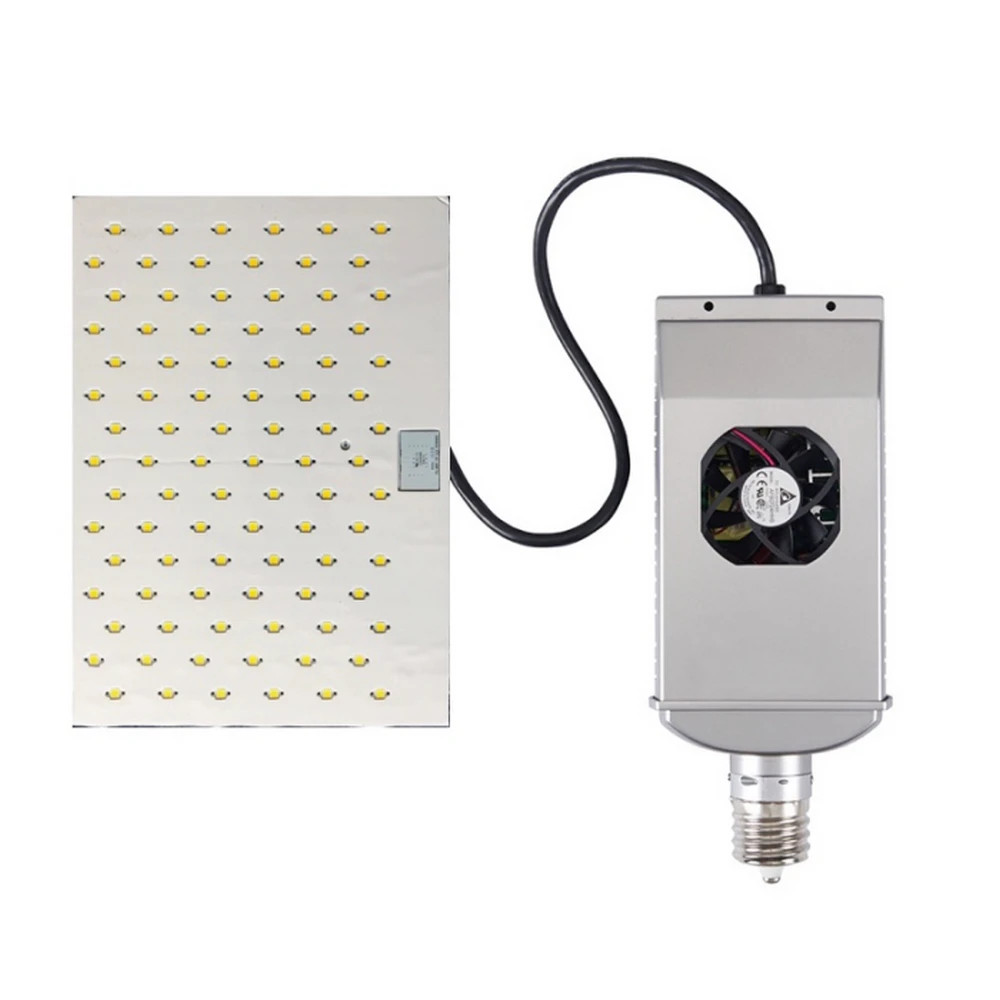

The LED-8091M50D is a high-output, ballast-bypass LED solution designed to retrofit large HID shoebox and wall-pack luminaires. It delivers approximately 44,610 lumens from a 320-watt LED module with a 5000K color temperature, intended to replace a 1000W HID fixture in enclosed, glass-lens installations. The lamp is built for active cooling and long life, featuring an integrated fan and thermal sensor to help manage heat and maintain consistent light output. A practical design element is the included support feet, which helps prevent socket sag when installed in high-mount fixtures, and it includes 10kA surge protection for electrical safety. The unit can be dimmed to 50% by using the LO switch on the top of the lamp, providing flexibility for varying illumination needs while keeping the retrofit straightforward.
This product uses a Mogul EX39 base and operates on a wide input voltage range of 120–277V, making it compatible with many existing electrical circuits without the need for a separate ballast. The fixture is rated for a long service life, with a 50,000-hour expected life and a DLC Standard designation, which can streamline certain project procurement processes. The combination of enclosed-fixture compatibility, robust cooling, and a ballast-bypass configuration means installation must ensure the existing housing is suitable for such retrofit, including a glass, flat-lens enclosure as referenced in the manufacturer guidance. The compact dimensions (12.6 in length, 8.9 in width, and 3.6 in height) help clarify fitment within supplied housings and reduce misfit risk during retrofits.
Features:
- 120-277V operation
- Mogul EX39 base
- Retrofits 1000W HID fixtures
- Enclosed fixture required
- Active cooling technology for long life
- Includes support feet to prevent socket sag
- 10kA surge protection
- Dim to 50% with switch on lamp
- Operating temp: -40 to 122 F
- DLC Standard
- 50,000 hour rated
- Brand:
- Light Efficient Design
- Manufacturer Part Number:
- LED-8091M50D
- UPC:
- 844006077587
- Lumens:
- 44,610 Lumens
- Wattage:
- 320 Watts
- Input Voltage:
- 120-277V
- Color Temperature:
- 5000K
- Lamp / Base Type:
- EX39 Mogul
- Rated Hours:
- 50,000 Hours
- Equivalent:
- 1000W HID
- Min Operating Temp:
- -40 Degrees F
- CRI:
- 70+
- Special Features:
- Enclosed Fixture Rated
- Length:
- 12.6
- Width:
- 8.9
- Height:
- 3.6
- Package Size:
- Each
