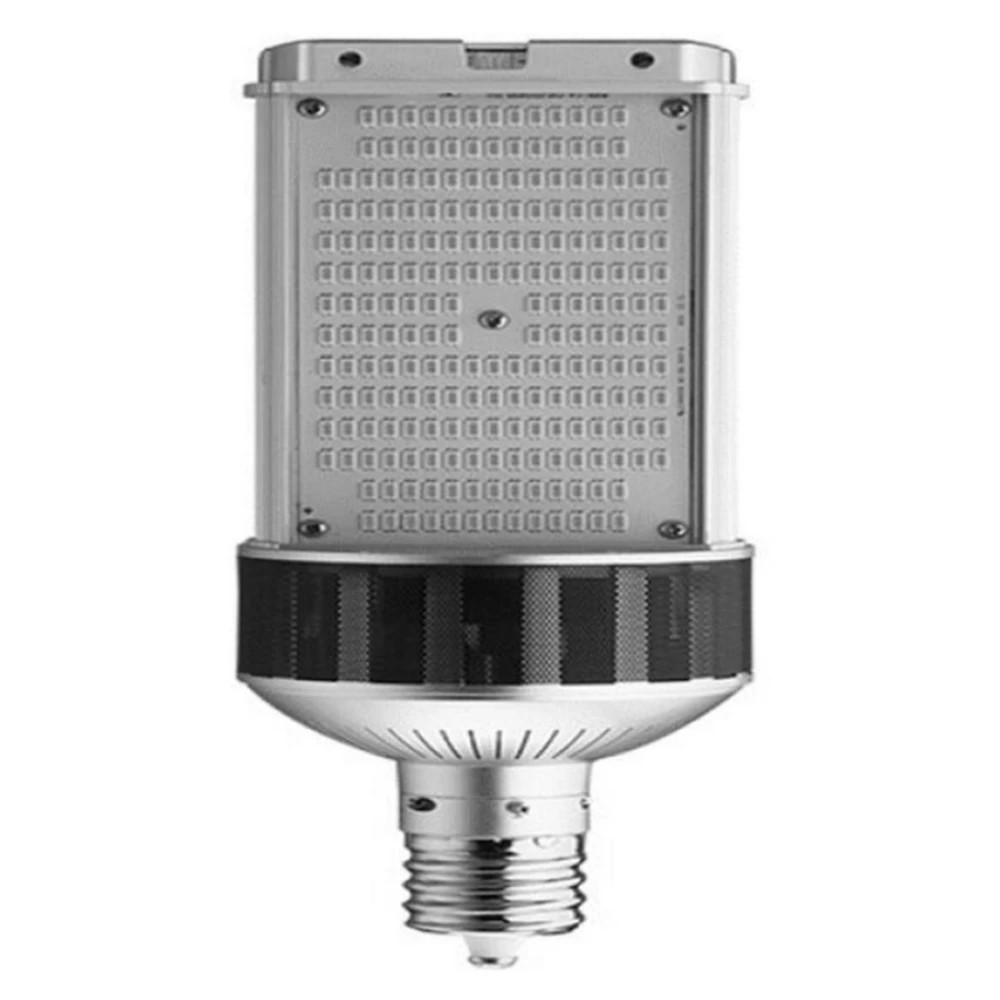

Light Efficient Design LED-8089M50D-G5 LED Shoe Box / Wall Pack Retrofit Lamp - Dimmable - EX39 - 80W - 5000K - 10,850 Lumens - 120-277V

The Light Efficient Design LED-8089M50D-G5 is an 80-watt, Mogul EX39 (E39) base LED retrofit lamp designed to replace a 250-watt HID shoebox or wall-pack configuration. It delivers broad-area illumination with a nominal 10,850 lumens and a 5000K color temperature, providing a daylight appearance suitable for outdoor and parking-area applications. This model operates on 120-277V and is dimmable via a “LO” setting on the top switch, allowing light output to be reduced to approximately half when needed. The lamp is built to be compatible with enclosed fixtures and damp locations, and includes an integrated cooling system and a rotatable base that enables directional adjustment after installation. Its design supports long life and reliable operation with a rated lifespan of up to 50,000 hours and an integrated 10kA surge protection element.

The unit is specifically engineered to replace HID installations while fitting into existing EX39 mogul sockets, with a compact footprint (approximately 8.3 inches by 4.3 inches) that suits retrofit scenarios in shoebox or wall-pack luminaires. The product is DLC Standard listed, which helps align it with certain utility rebate and program requirements, and the housing is described as having an Advance active cooling system to maintain cooler operation under continuous use. The lamp’s rotatable panel base helps maximize light distribution within the fixture boundaries, and its damp-location rating supports external, weather-exposed settings typical of outdoor lighting installations.

Use cases include parking lots, building perimeters, loading zones, and other high-ceiling outdoor spaces where HID replacement is desired for energy efficiency and reduced maintenance. When planning, ensure the EX39 mogul base matches the existing ballast or fixture configuration, and note the top-switch dimming function if you expect variable lighting levels. The 120–277V compatibility provides flexibility for multi-site deployments without requiring a separate ballast, while the enclosed-fixture and damp-location ratings help ensure suitability for exterior environments.

Features:

• 120-277V operation
• Mogul EX39 base
• Daylight 5000K white light
• Dim to 50% by selecting “LO” on the top switch
• 250W HID equivalent
• Rotatable base for directional lighting
• Damp location rated
• Enclosed fixture rated
• Integrated 10kA surge protection
• DLC Standard
• 50,000 hour rated
