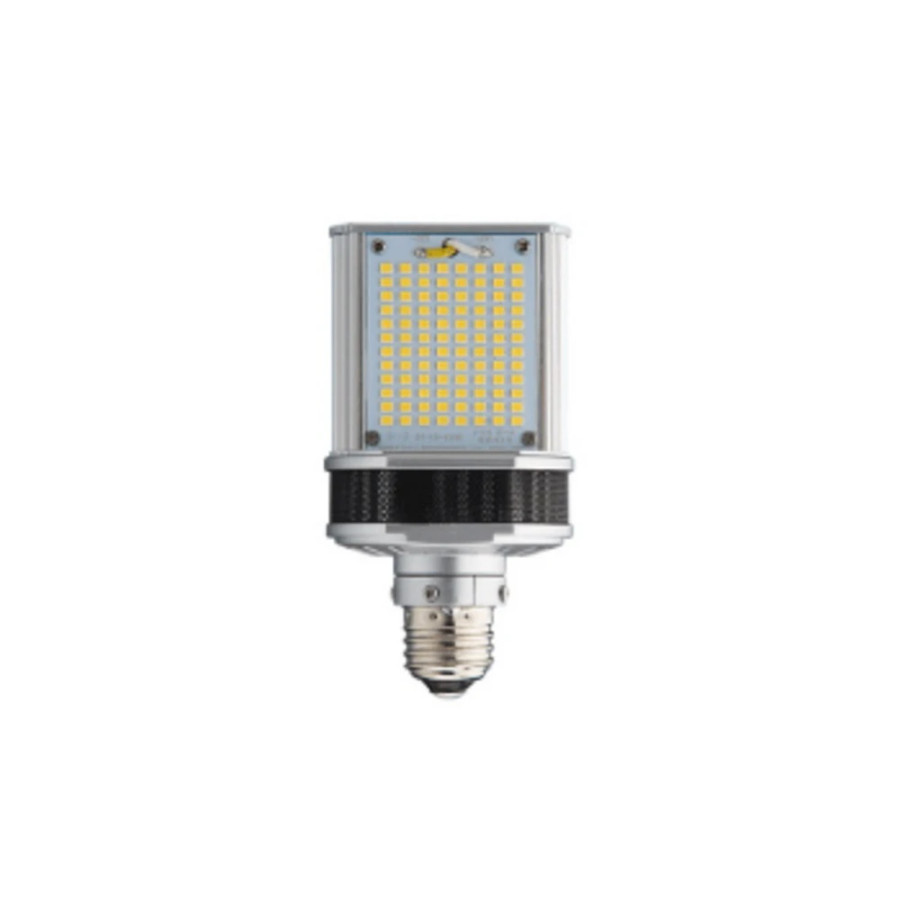

The Light Efficient Design LED-8086E50-G4 is a retrofit LED luminaire designed to replace a 70 W HID lamp in shoebox and wall-pack applications. This 20 W LED operates on 120–277 V and uses an E26 medium screw base, enabling easy installation in existing fixtures without changing the mounting hardware. It emits about 2,880–2,940 lumens with a 5000 K color temperature, providing a bright, neutral white light suitable for area and exterior illumination. The lamp is engineered for long life, featuring a rated 50,000 hours of operation and a 144 lm/W efficiency, which supports sustained performance for demanding outdoor or high-traffic areas. An enclosed fixture-rated design and a rotatable base allow installation in fixtures that require environmental sealing and directional adjustment, respectively. The unit also incorporates an active cooling system to help keep the LED assembly cool during operation and to protect the longevity of the driver and LEDs, complemented by 10 kA surge protection for resiliency against power transients. In addition to DLC Standard compliance, this lamp is suitable for damp locations, making it adaptable to exterior and covered environments.
This product is intended as a direct, ballast-bypass retrofit compatible with fixtures currently wired for HID operation, offering a lower wattage, longer-life alternative without changing the overall fixture footprint. It is important to verify fixture compatibility, mounting orientation, and driver conditions before replacement. Given the rotatable base and the enclosure-rated construction, the lamp supports flexible aiming and reliable performance in outdoor housings and similar installations. Package sizing is listed as each unit, with dimensions of approximately 5.2 inches in length and 2.6 inches in width, suitable for space-constrained retrofit projects.
Features:
- 120-277V operation
- E26 medium base
- 70W HID equivalent
- Rotatable base
- Damp location rated
- Advance active cooling system
- Enclosed fixture rated
- 10kA surge protection
- DLC Standard
- 50,000 hour rated
- Brand:
- Light Efficient Design
- Manufacturer Part Number:
- LED-8086E50-G4
- UPC:
- 844006047238
- Lumens:
- 2,880 Lumens
- Lumens Per Watt:
- 144
- Wattage:
- 20 Watts
- Input Voltage:
- 120-277V
- Color Temperature:
- 5000K
- Lamp / Base Type:
- E26 Medium
- Lamp Shape:
- Corn Cob
- Rated Hours:
- 50,000 Hours
- Equivalent:
- 70W HID
- Min Operating Temp:
- -40 Degrees F
- CRI:
- 80+
- Special Features:
- Enclosed Fixture Rated, Rotatable Base
- Length:
- 5.2
- Width:
- 2.6
- Package Size:
- Each
