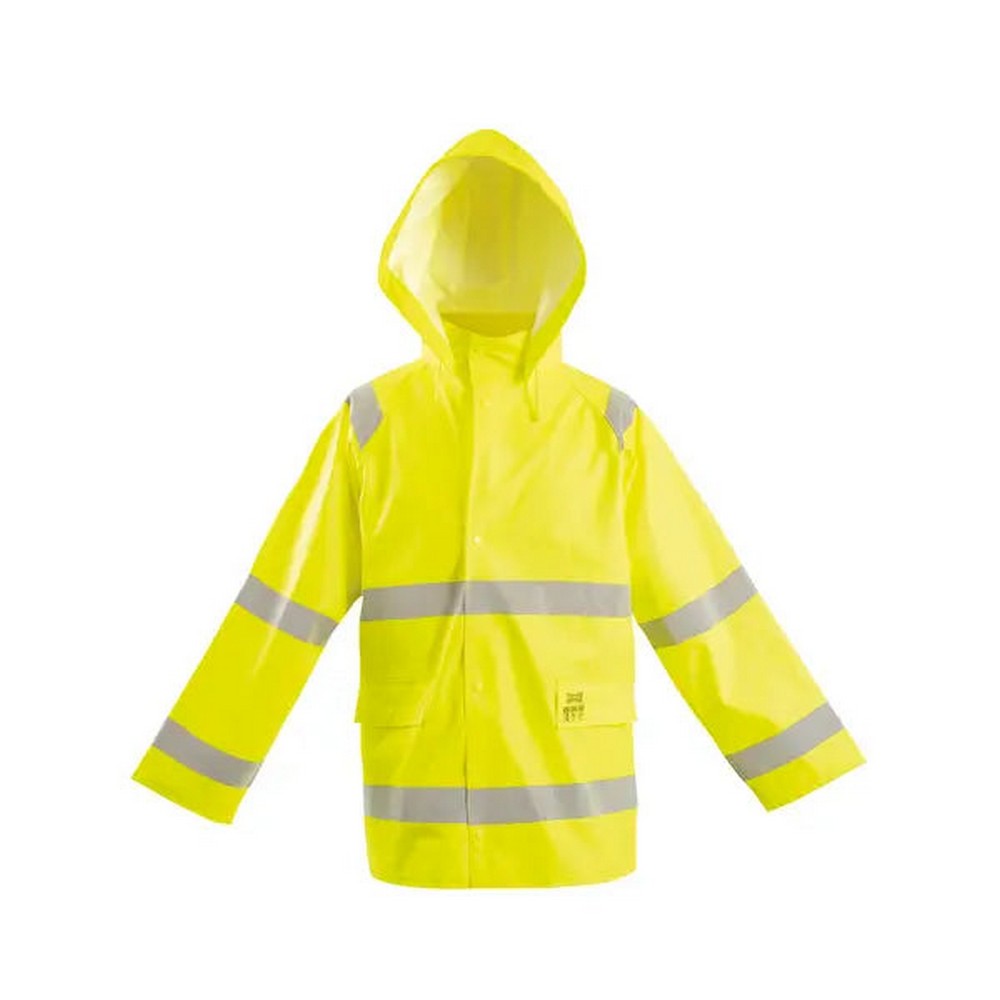

The OCCLUX-TJR/FR2-Y is a flame resistant rain jacket designed for high-visibility protection in challenging work environments. The shell combines 10 oz FR cotton jersey knit with a polyurethane coating to create a rainproof, wind-sealing barrier while maintaining flexibility for movement. It is built to meet Type R Class 3 ANSI/ISEA 107-2020, and carries NFPA 70E CAT 2 and NFPA 2112 compliance indicators, with an arc rating of ATPV 10 cal/cm², signaling its suitability for certain arc-flash and flash-fire scenarios when used as part of a broader PPE program. The garment is fully sealed at the seams to prevent water intrusion and features a vented Cape Back to improve air circulation during active wear, reducing heat buildup under rain protection. A removable, adjustable hood is designed to fit most full-brim hard hats, and the cuffs are adjustable with snaps to help seal out wind and rain. It also includes a covered D-ring access and two lower front pockets with snap closures for secure storage of small tools or personal items.
For practical use, this jacket provides 100% waterproof performance thanks to welded seams, making it suitable for wet, contaminated, or dusty outdoor work where visibility and weather protection are priorities. Raglan sleeves offer range of motion, which can be beneficial for tasks requiring overhead or lateral movement. The jacket is color-coded in Hi-Vis Yellow to enhance visibility in daytime and low-light conditions, supporting safety protocols in workplaces with traffic, equipment operation, or pedestrian activity.
Sizing is listed as M-6X with a case quantity of 10 and packaging per each, providing scalable inventory options for crews or job sites. When selecting this garment, verify compatibility with your other FR PPE and the specific arc-flash and flash-fire assessment of your worksite, as the certification ratings indicate suitability within those program parameters rather than universal protection for all scenarios. Downloads include a spec sheet for additional technical details.
Features:
- Meets ANSI/ISEA 107-2020 Type R Class 3
- Meets ASTM F1891 (ARC FLASH) & F2733 (FLASH FIRE)
- Arc Rating: ATPV = 10 cal/cm²
- NFPA 70E/CAT 2
- 10 oz Flame Resistant, Polyurethane Coated, FR Cotton Jersey Knit
- 100% Waterproof w/ Welded Seams
- Vented Cape Back for Increased Air Circulation
- Removable, Adjustable Hood Fits Most Full Brim Hard Hats
- 2 Pockets: Lower Front w/ Snap Closures
- Covered D-ring Access
- Raglan Sleeves for Easy Movement
- Storm Flap Front w/ Zipper & Snaps
- Type:
- Jacket
- ANSI Class:
- Type R Class 3
- CAL Rating:
- 10 CAL/cm² Rating / CAT2
- Number of Pockets:
- 1
- Water Resistant:
- Yes
- Closure:
- Zipper
- Closure:
- Snaps
- NFPA2112:
- Yes
- NFPA70E:
- Yes
- ASTM-F1506:
- Yes
- Color:
- Hi-Vis Yellow
- Package Size:
- Each
- Case Quantity:
- 10
