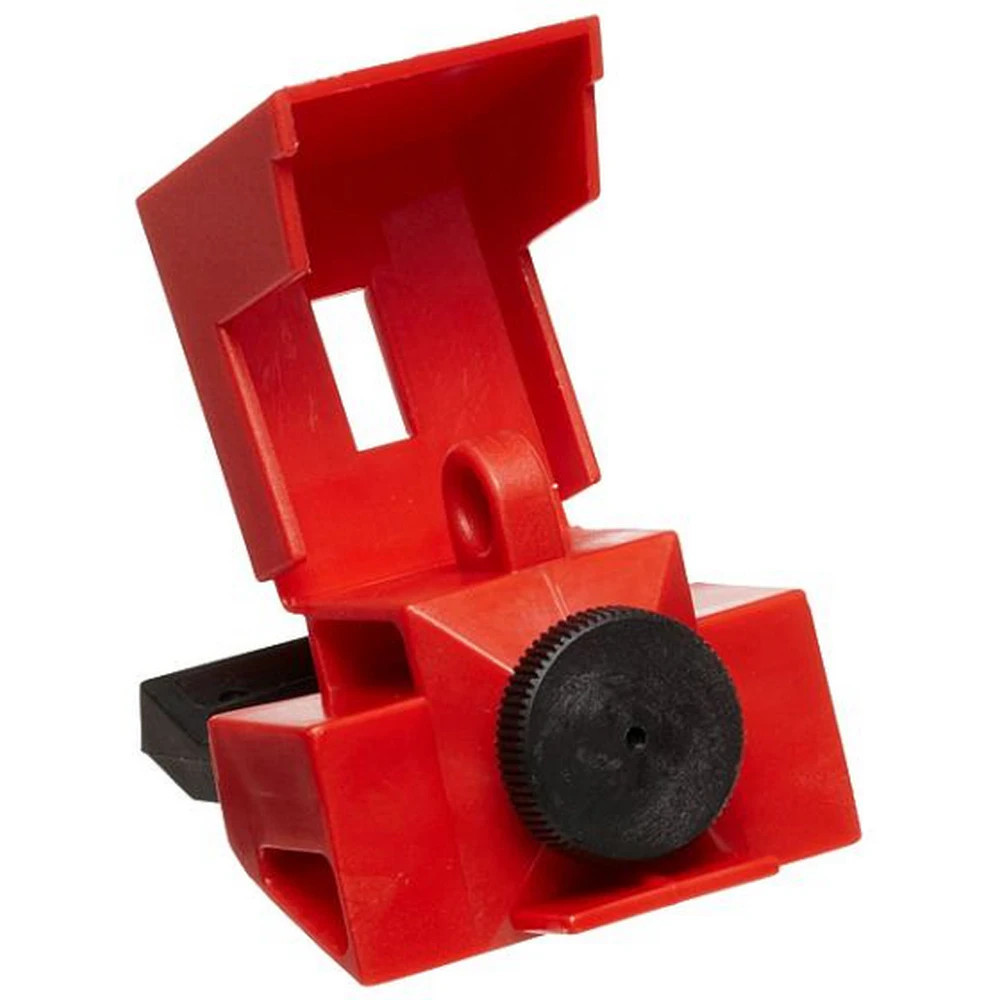

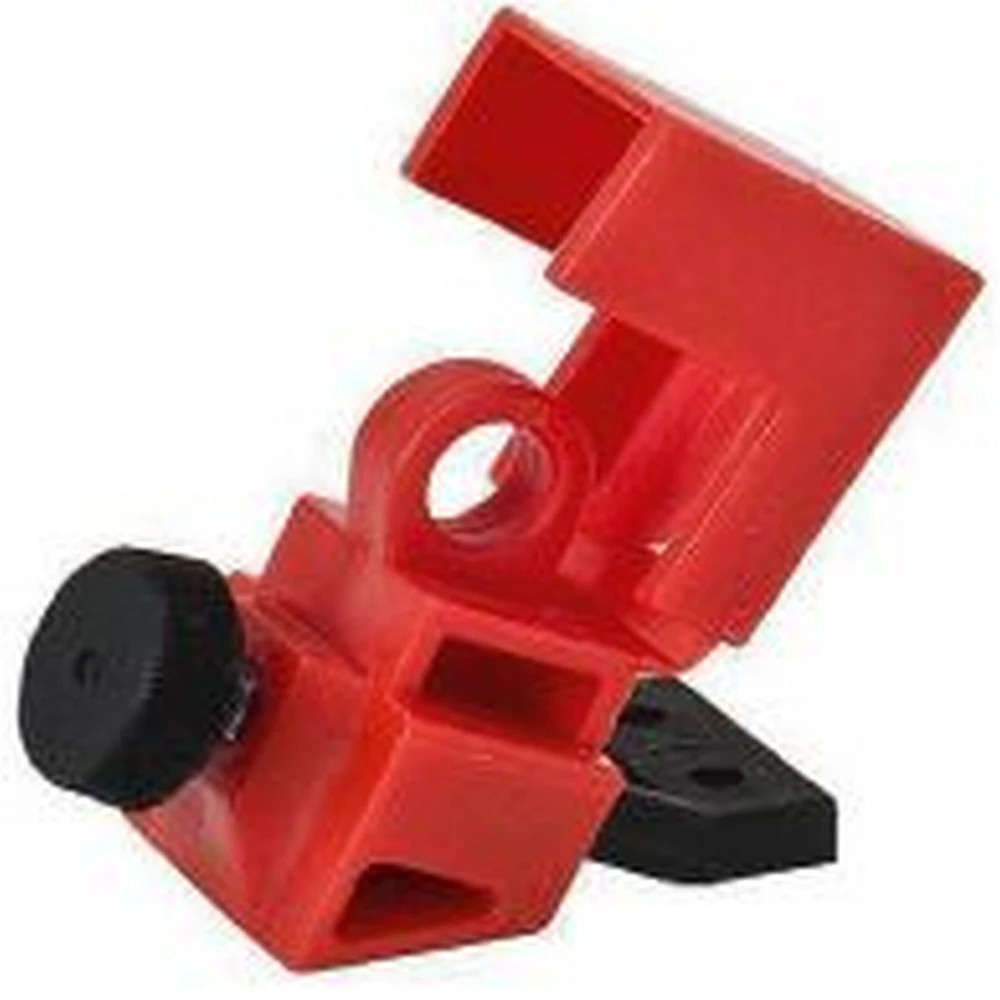

The Reece Safety CB09 277 Volt Circuit Breaker Lockout is designed for breakers that lack an integrated locking point. Its No Hole design provides a secure wrap-around fit by using a thumb wheel to clasp onto the switch, enabling lockout protection even on hard-to-lock circuits. This model is typically suitable for breakers with a width of about 16.5 mm and a thickness of 11.6 mm, commonly associated with 277-volt systems. For longer or more complex switch throws, the CB09 can be used in combination with the CLT1 lockout cleat to achieve a positive lockout on long sliding switches or switches with substantial angular rotation. The snap-on/off capability of the cleat facilitates use only when needed, supporting flexible maintenance procedures.

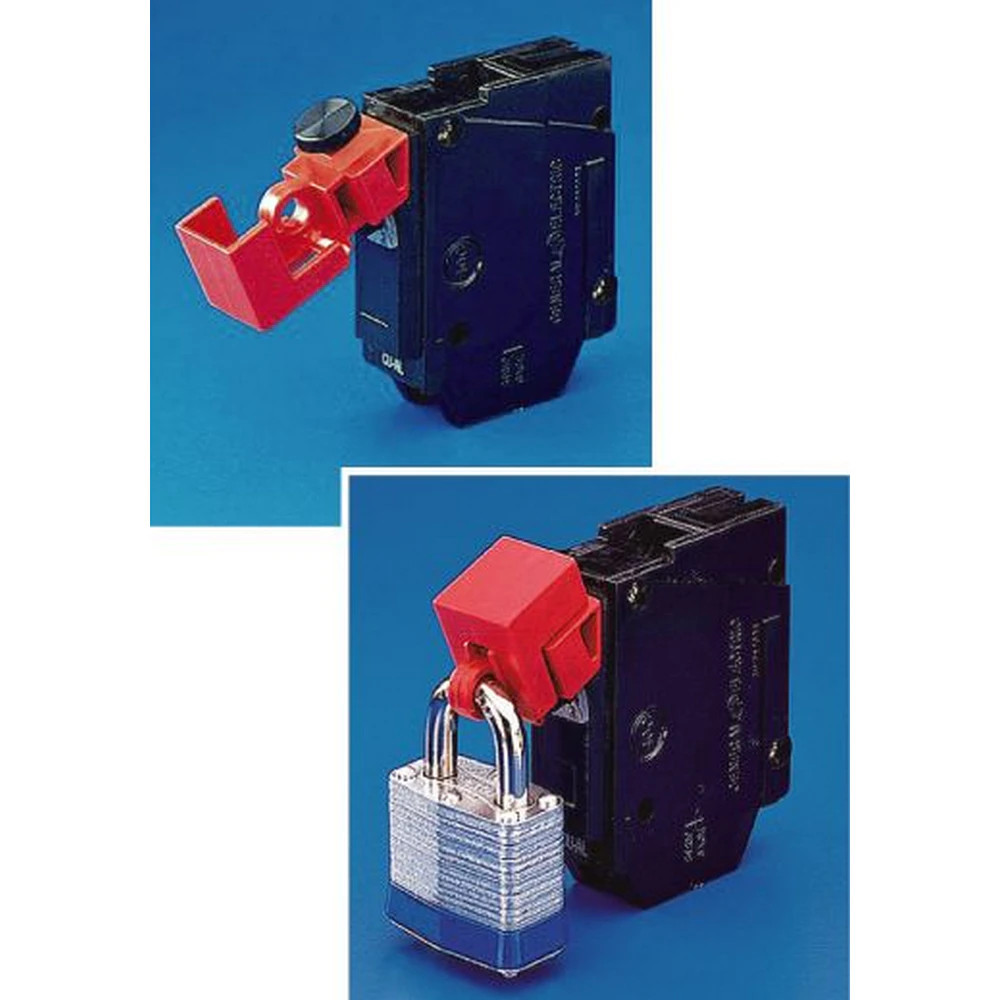

Constructed from nylon, the lockout is designed to accept lock shackles up to 10 mm in diameter, allowing standard padlock security to be applied without interfering with normal operation when the lockout is engaged. This keeps working personnel protected during maintenance while ensuring that the device remains compatible with common lockout practices. The package is listed as each, reflecting its individual-use packaging, and branding is by Reece Safety, with no tool fixing that simplifies installation and removal without specialized tools.
When selecting a lockout solution, ensure the breaker’s physical dimensions align with the CB09’s targeted slot size and that a compatible lock can be used. The CB09 may be paired with CLT1 for additional versatility on switches with challenging geometries, and it fits into standard lockout procedures for circuit protection during servicing. If you need assistance choosing the right configuration, contact The Safety Source for guidance on compatibility and procurement.
Features:
- Nylon construction for durability
- Accepts lock shackles up to 10 mm diameter
- No-tool installation for quick setups
- Branded: Reece, Model: CB09
- Designed for 277-volt circuit breakers
- Branding:
- Reece
- Fixing:
- No Tool
- Package Size:
- Each
