The Illinois Engineered Products XPPF36 Portable Folding Gate provides flexible, temporary access control for facilities. Designed to close off rack aisles, hallways, or maintenance areas, this extra heavy-duty gate is built to be moved and stored as needed. When not in use, it folds up and rolls away on its 3-inch casters, allowing quick reconfiguration of traffic flow without disassembly. The unit ships standing and assembled, ready to deploy, with a layout and components optimized for frequent setup and removal in demanding environments.
Constructed from heavy-gauge steel with electro-galvanized finishes, the gate features a 6'6" expanded height and a 3' to 6' width range, enabling precise closures across a variety of openings. The pressure-fit attachment and included padlock hasp support secure positioning, while the lattice framework (3/8" x 3/4" 14-gauge galvanized) and zinc-plated rivets provide robust rigidity. The design incorporates rollers on moving parts to enhance durability during frequent repositioning, and the overall weight (approximately 270 lb per unit) reflects its extra heavy-duty specialization. An unlimited number of 6-foot adders can be connected to create barriers tailored to changing site conditions.
This gate is suitable for temporary closures during maintenance, equipment protection, or to limit traffic as needed. When planning installation, consider that the extra heavy-duty line offers options for pressure-fit, wall mount, or floor mount attachments, accommodating various facility layouts. The unit is intended for standing use, and its built-in transport features, including a transport strap and rolling capability, support efficient relocation between areas or storage when not in use.
Features:
- Instant security for openings and enclosures
- Expands to 3'–6' wide; 6'6" tall

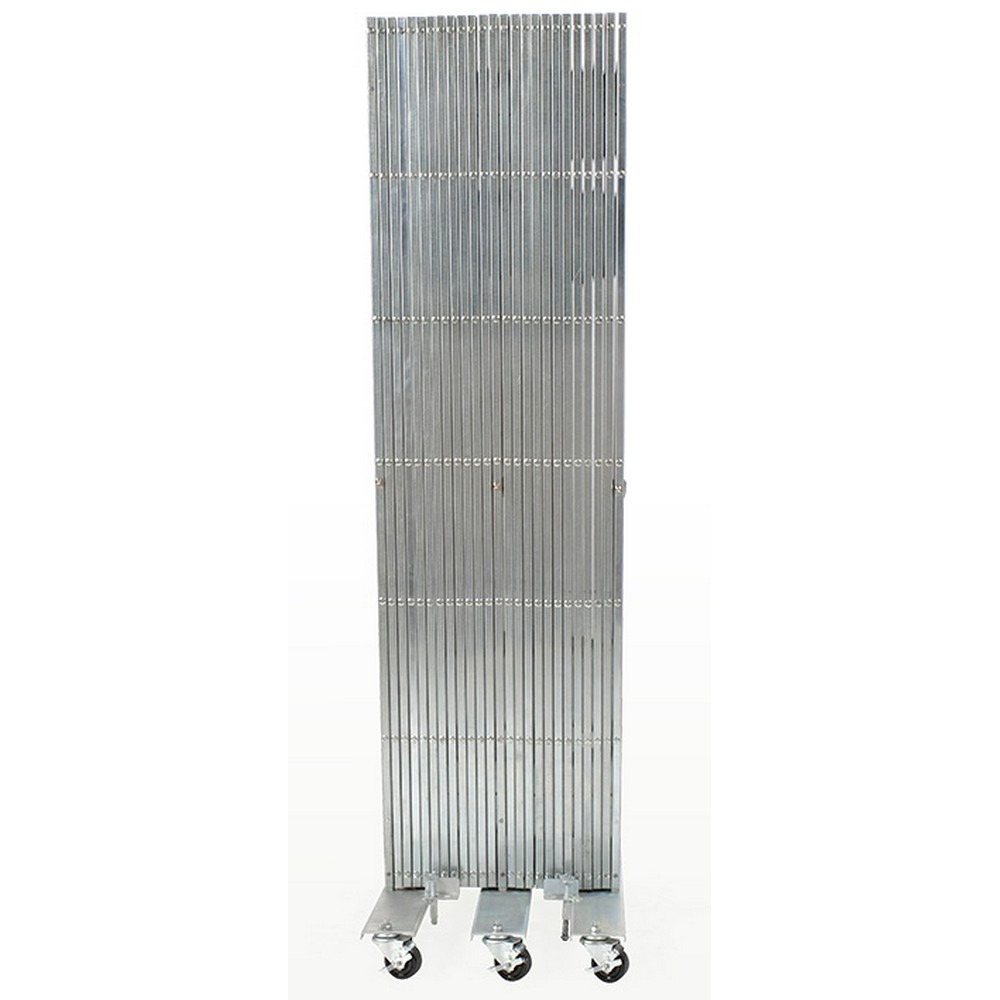

- Folds and rolls away for easy storage
- Starter and adder configurations available to tailor barrier size
- Extra heavy duty options with pressure fit and mounting choices
- Padlock hasp included for locking
- Fits Widths:
- 3' to 6'
- Expanded Height:
- 6'6
- Collapsed Height:
- 6'6
- Type:
- Extra heavy duty
- Attachment:
- Pressure fit
- Lattice:

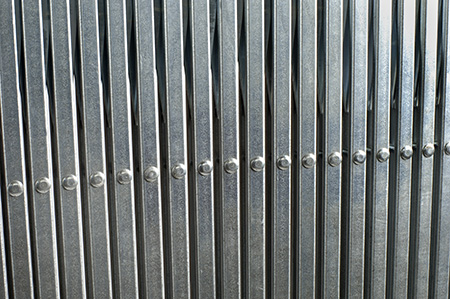

- 3/8 x 3/4 14 gauge galvanized, with 1/4 x 1/2 zinc plated steel rivets
- Assembly:
- Ships standing and assembled, ready to use
- Axle:
- 2-1/4W x 24D x 1H, 11-gauge CRS, zinc-plated
- Casters:
- 3Dia., 2 per axle
- Support Bars:
- Galvanized 3/4 round tubing
- Transport Strap:
- 11-gauge U-channel, welded to axle
- Pressure Fit Locking Mechanism:
- 1-7/8 x 1-3/8 11-gauge box channel and 2-1/4 U-channel, zinc finish, 5/8 holes with 1/2Dia. x 1L male pin welded to channel
- Finish:
- Electro-galvanized
- Weight:
- 270.0 lbs. ea.
- Package Size:
- Each
