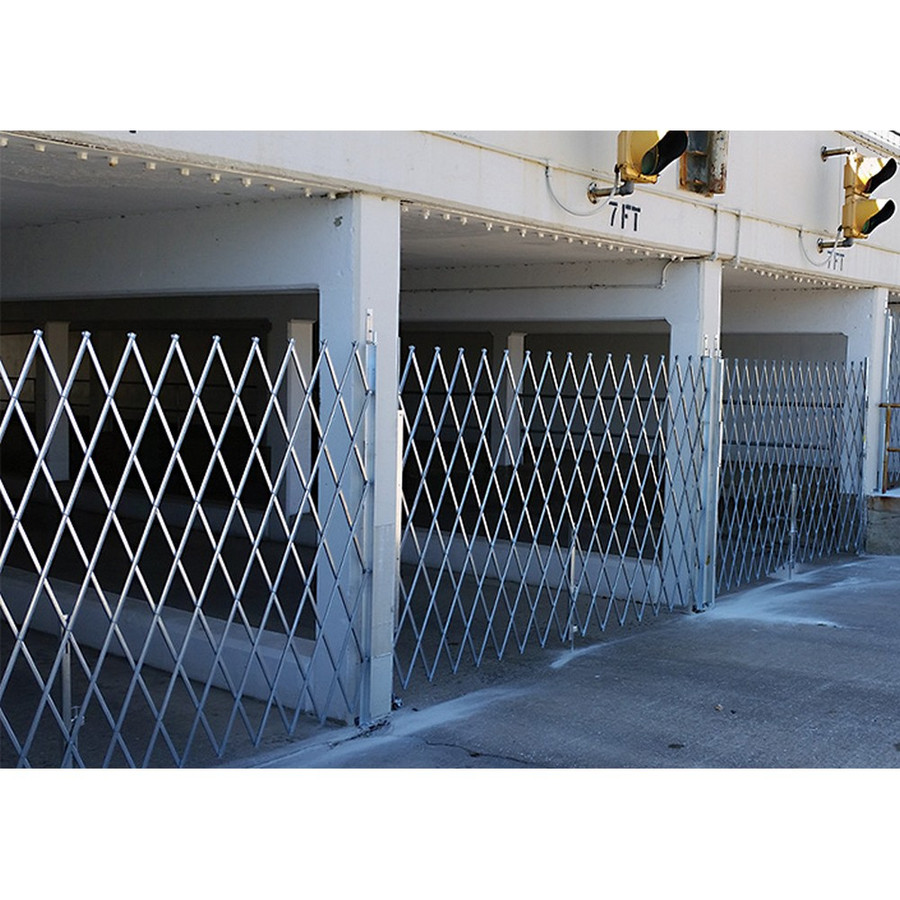

The Illinois Engineered Products SSG1170-ANG Retractable Folding Gate is designed to secure openings such as loading docks, doors, hallways, and entrances while preserving visibility, airflow, and access control. This single-gate system collapses and retracts to move completely out of the way, allowing unfettered passage when gate security is not required. When extended, the gate reduces its height by 6 inches, a practical consideration for spaces with variable headroom.
Built for durability in industrial environments, the gate features a heavy-duty 12-gauge steel vertical frame paired with 14-gauge steel lattice webbing. The galvanized finish enhances rust resistance and eases maintenance, helping the system withstand routine cleaning and exposure to environmental moisture. Each unit ships unassembled but includes mounting brackets, a bearing washer, and a solid steel caster to simplify installation; lag bolts and padlock are not included. The design accommodates secure access control through a padlock hasp and a lockable drop pin, supporting controlled entry while maintaining visibility through the gate when closed.
Ideal use cases include securing receiving doors, lift-up doors, and interior or exterior corridors where light and air flow are important. The assembly is tailored for 10' to 11' wide openings, with a collapsed height of 7' and an expanded height of 6' 6", ensuring compatibility with typical dock and doorway configurations. Verified specifications indicate a heavy frame, sturdy webbing, and a galvanized finish for durability; users should factor in the total system weight (95.0 lbs. per unit) and the requirement for mounting hardware not included in the package when planning installation.
Features:
- Secures doors, hallways, and entryways while allowing light and air circulation
- Heavy-duty 12-gauge steel vertical frame with 14-gauge webbing
- Galvanized finish for durability and corrosion resistance
- Retracted gate pivots to move completely out of the way
- Gates lose 6" in height when extended
- Includes mounting brackets, bearing washer, and solid steel caster
- Width:
- 10' to 11'
- Height:
- 7'
- Depth:
- 15 stacked
- Fits Widths:
- 10' to 11'
- Expanded Height:
- 6' 6
- Collapsed Height:
- 7'
- Frame:
- Heavy-duty 12-gauge 1-1/2 x 1-1/2 vertical angles
- Caster:
- Solid steel
- Finish:
- Galvanized finish, custom powder coating is also available, consult us for details
- Lattice:
- Heavy-duty 14-gauge steel U-channel webbing riveted back to back with aircraft quality aluminum rivets
- Type:
- Single Gate
- Assembly:
- Ships unassembled
- Weight:
- 95.0 lbs. ea.
- Package Size:
- Each
