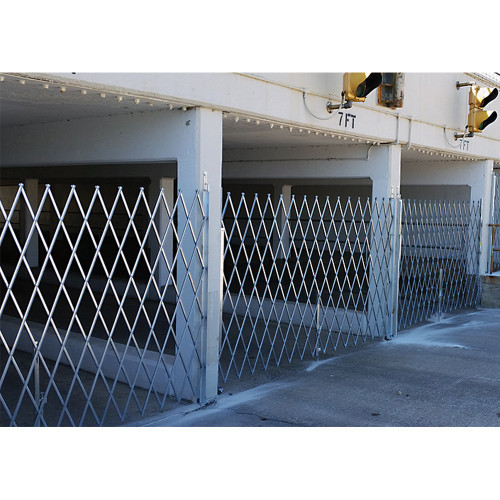

The Illinois Engineered Products SSG1065-ANG is a single retractable folding gate designed to secure wide openings such as loading docks, service doors, hallways, and entryways while preserving access, visibility, and ventilation. The gate folds away to clear the opening and pivots on its mounts, allowing it to be moved completely out of the way when access is required. When extended, the gate reduces the overall opening height by 6 inches, a trade-off that helps maintain a low-profile barrier without obstructing overhead clearance.
Constructed for durability, the gate features a heavy-duty 12-gauge steel vertical frame paired with 14-gauge steel webbing for rigidity and long-term service. The galvanized finish provides corrosion resistance and easier cleaning in demanding environments, contributing to lower maintenance. The system includes mounting brackets, a bearing washer, and a solid steel caster, with lag bolts and padlock not included, giving installers the flexibility to secure the assembly to a variety of substrates while still enabling quick, tool-free removal when needed.
This single-gate unit is sized to fit widths of 9 to 10 feet, with a collapsed height of 6 feet 6 inches and an expanded height of 6 feet. Assembly ships unassembled, so on-site installation can be tailored to the doorway or passage site. For added customization, a custom powder coating option is listed, inviting inquiries for color or finish beyond the standard galvanized surface. This configuration is suitable where light, air, and visibility must be preserved even while securing an opening, and where controlled access and theft deterrence are priorities.
Features:
- Secures doors, hallways, and entryways while allowing airflow
- Heavy-duty 12-gauge vertical frame with 14-gauge webbing
- Galvanized finish for durability and rust resistance
- Retracted gate pivots to fully clear the opening
- Gates lose 6" in height when extended
- Includes mounting brackets, bearing washer, and solid steel caster; hardware not included
- Width:
- 9' to 10'
- Height:
- 6' 6
- Depth:
- 15 stacked
- Fits Widths:
- 9' to 10'
- Expanded Height:
- 6'
- Collapsed Height:
- 6' 6
- Frame:
- Heavy-duty 12-gauge 1-1/2 x 1-1/2 vertical angles
- Caster:
- Solid steel
- Finish:
- Galvanized finish, custom powder coating is also available, consult us for details
- Lattice:
- Heavy-duty 14-gauge steel U-channel webbing riveted back to back with aircraft quality aluminum rivets
- Type:
- Single Gate
- Assembly:
- Ships unassembled
- Weight:
- 85.0 lbs. ea.
- Package Size:
- Each
