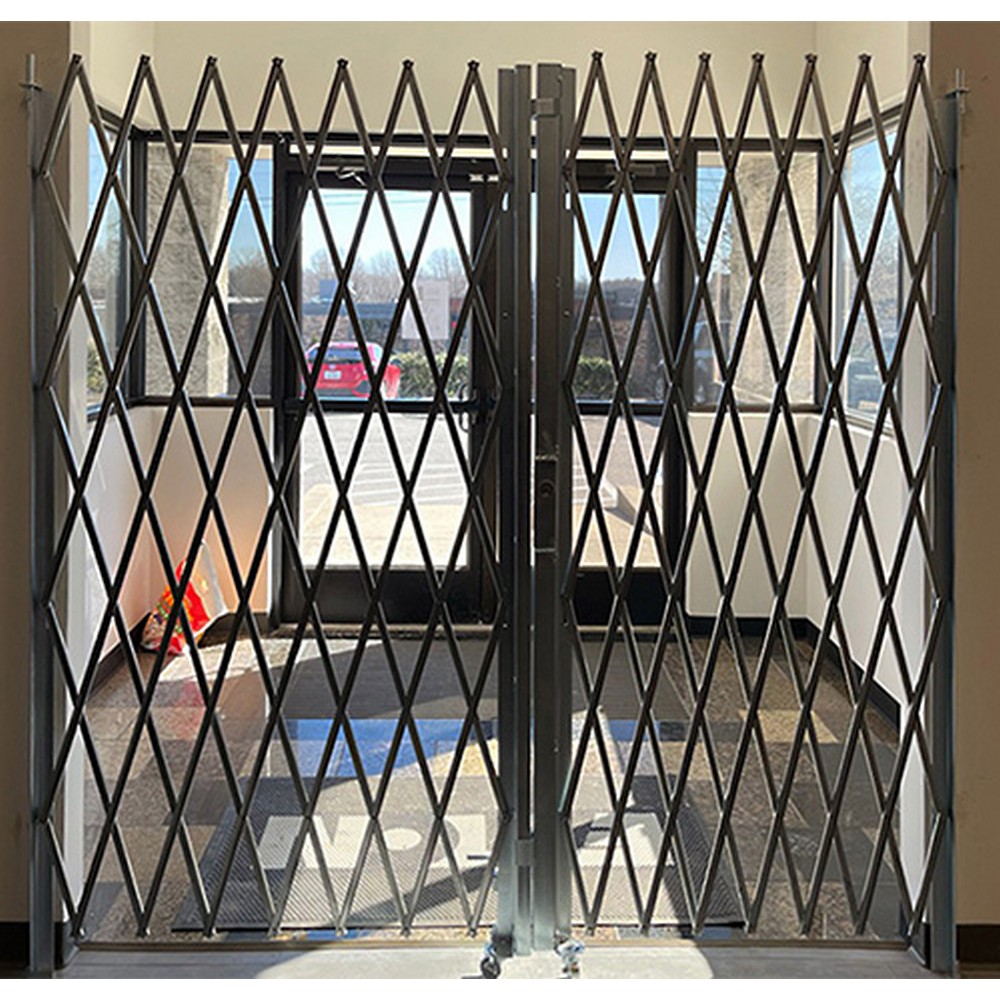

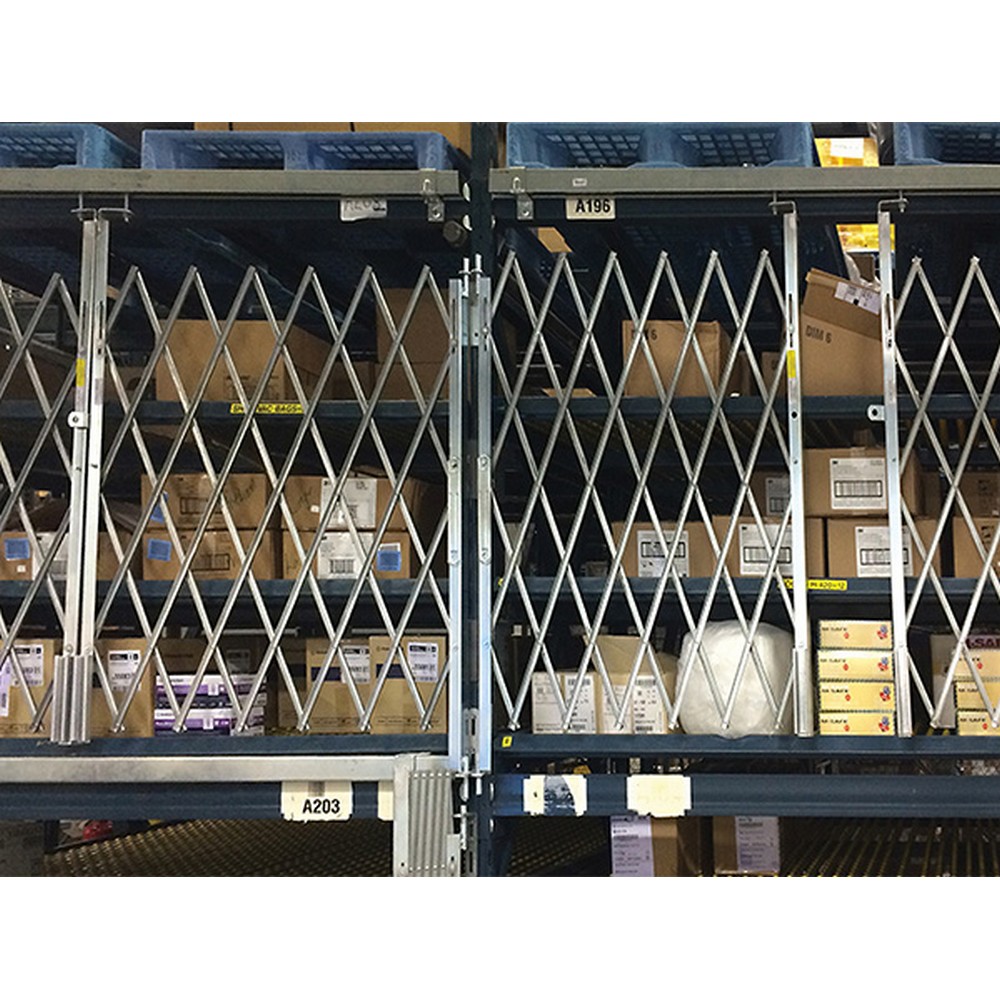

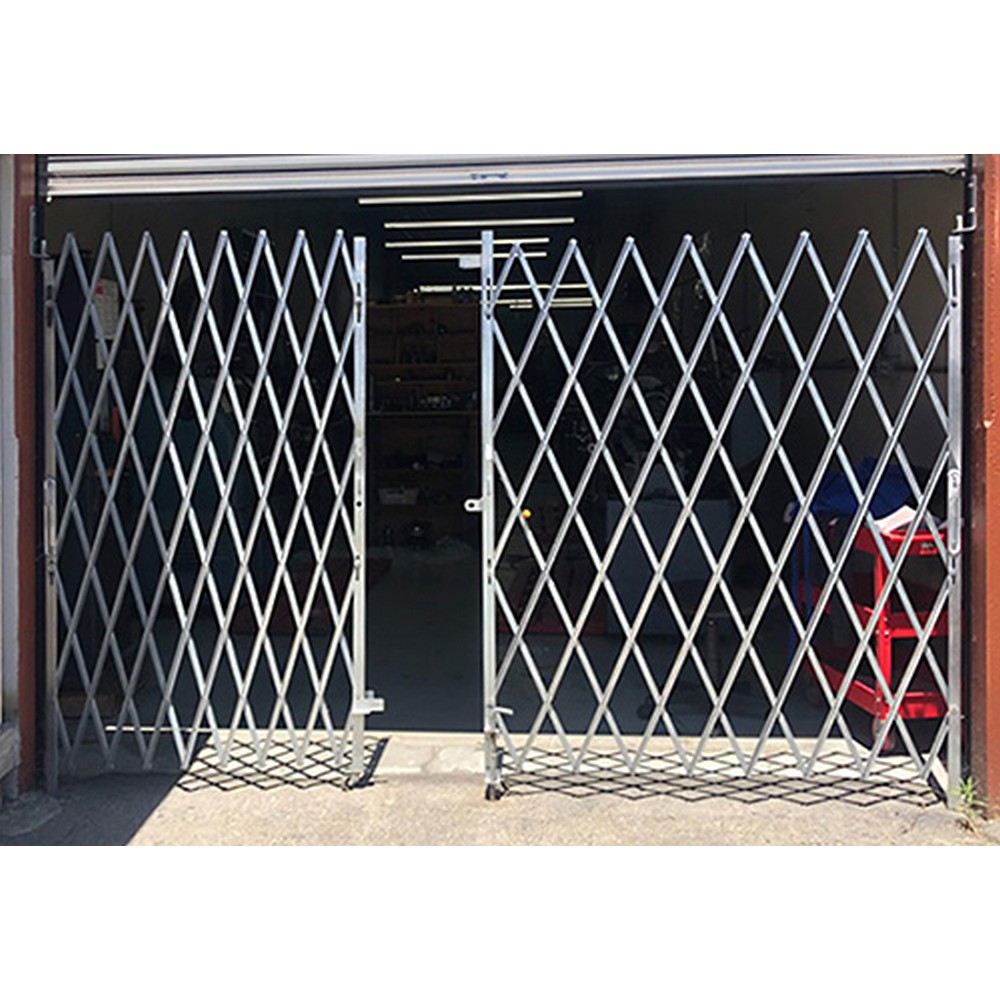

The IEPPFG2480-ANG is a double retractable folding gate designed to secure wide openings such as loading docks, hallways, and entryways while preserving visibility and airflow. This gate locks with a padlock hasp and includes four lockable drop pins for added security when required. It folds away on its mountings to clear the opening, allowing uninterrupted access and quick retraction when movement is needed. The assembly ships unassembled and requires mounting brackets, bearing washers, and solid steel casters for installation; lag bolts and padlocks are not included, so planning for compatible fasteners is necessary. The unit features a heavy-duty steel frame built from 12-gauge vertical angles and heavy 14-gauge lattice webbing, with a galvanized finish that enhances corrosion resistance and ease of cleaning.
Engineered to fit widths from 22 to 24 feet, this double-gate system provides an 8-inch collapsed height and a 7 ft 6 in expanded height. When extended, the gate reduces height by 6 inches, which is an important consideration for doorway clearance and structural headroom. The design uses rubber casters for mobility and provides a robust, ready-to-install solution for securing large openings without sacrificing air circulation or light penetration. The lattice is riveted back-to-back with aircraft-quality aluminum rivets to balance strength with lightweight performance, and the galvanized finish contributes to durability in industrial environments.
Typical applications include securing receiving doors, lift-up doors, hallways, and entryways where visibility and airflow must be maintained. The gate ships as a kit and must be mounted to compatible brackets and bearings; planned installation should account for the absence of padlocks and lag bolts in the package. If customization is needed, powder coating is available as an option—consult for details and lead times.
Features:
- Secure doors, lift-up doors, hallways, and entryways while allowing light and air to circulate
- Sturdy 12-gauge steel vertical frame with 14-gauge steel webbing
- Galvanized finish for durability, rust resistance, and easy cleaning
- Folded gates pivot on mountings to move completely out of the way
- Gates lose 6" in height when extended
- Easily installed with included mounting brackets, bearing washers, and solid steel casters
- Width:
- 22' to 24'
- Height:
- 8'
- Depth:
- 22 stacked per side
- Fits Widths:
- 22' to 24'
- Expanded Height:
- 7' 6
- Collapsed Height:
- 8'
- Frame:
- Heavy-duty 12-gauge 1-1/2 x 1-1/2 vertical angles.
- Casters:
- Rubber
- Finish:
- Galvanized finish, custom powder coating is also available, consult us for details
- Lattice:
- Heavy-duty 14-gauge steel U-channel webbing riveted back to back with aircraft quality aluminum rivets
- Type:
- Double Gate
- Assembly:
- Ships unassembled
- Weight:
- 240.0 lbs. ea.
- Package Size:
- Each
