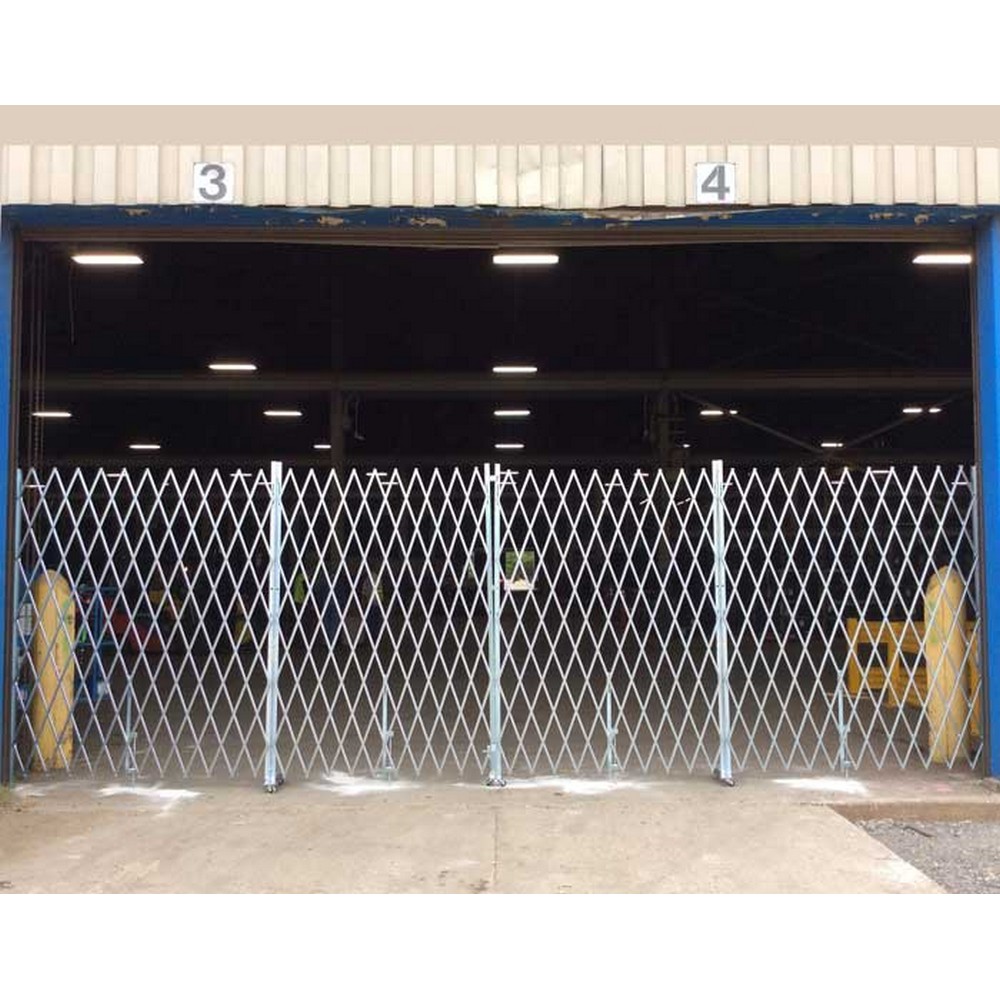

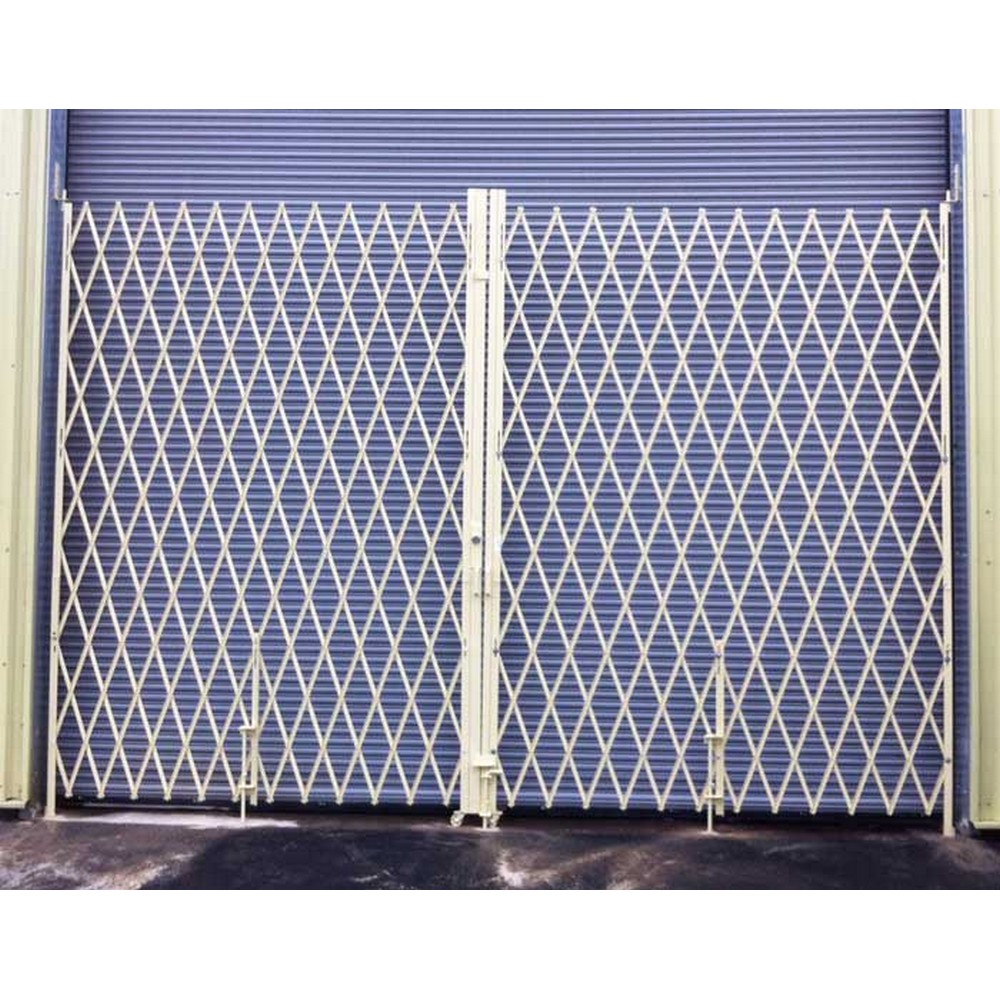

The Illinois Engineered Products PFG2075-ANG retractable folding gate provides secure, controlled access for loading docks, service doors, hallways, and entrances while preserving light, air circulation, and visibility. This double gate design offers wide coverage with an 18' to 20' adjustable width and a 7' 6" collapsed height, expanding to 7' high when in use. The gate is built with a rugged 12-gauge steel vertical frame and 14-gauge steel webbing, all finished in galvanized coating to resist rust and simplify maintenance in demanding environments. When extended, the assembly loses 6 inches in height, a behavior that helps fit tighter openings while maintaining security. The units roll back and pivot on their mountings to move completely out of the way, reducing obstruction during periods of high traffic or when access is required.
A practical installation is supported by included mounting brackets, bearing washers, and solid steel casters. Note that lag bolts and padlocks are not included, so facilities can select hardware that matches their security and attachment needs. The lattice comprises heavy-duty 14-gauge steel U-channel webbing riveted with aircraft-grade aluminum rivets, ensuring a sturdy barrier that still allows light and air to pass through the opening. Optional customization is available as a powder coating finish beyond the standard galvanized finish, enabling color or coating preferences to align with facility standards. Each unit ships unassembled, which facilitates transport and field assembly where space or access limitations exist during installation.
This product is suitable for securing receiving doors, lift-up doors, hallways, and entryways where controlled access and visibility are important. For best results, verify opening widths, mounting surface compatibility, and anchoring provisions at the job site, and plan for the necessary padlock security solution to match the hasp and lock-pin provisions offered with the gate.
Features:
- Secure doors, hallways, and entryways while allowing light and air circulation
- Sturdy 12-gauge steel vertical frame with 14-gauge steel webbing
- Galvanized finish for durability and rust resistance
- Fold-out gates pivot to move completely out of the way
- Height reduces by 6" when extended
- Includes mounting brackets, bearing washers, and solid steel casters
- Width:
- 18' to 20'
- Height:
- 7' 6
- Depth:
- 15 stacked per side
- Fits Widths:
- 18' to 20'
- Expanded Height:
- 7'
- Collapsed Height:
- 7' 6
- Frame:
- Heavy-duty 12-gauge 1-1/2 x 1-1/2 vertical angles.
- Casters:
- Solid steel
- Finish:
- Galvanized finish, custom powder coating is also available, consult us for details
- Lattice:
- Heavy-duty 14-gauge steel U-channel webbing riveted back to back with aircraft quality aluminum rivets
- Type:
- Double Gate
- Assembly:
- Ships unassembled
- Weight:
- 185.0 lbs. ea.
- Package Size:
- Each
