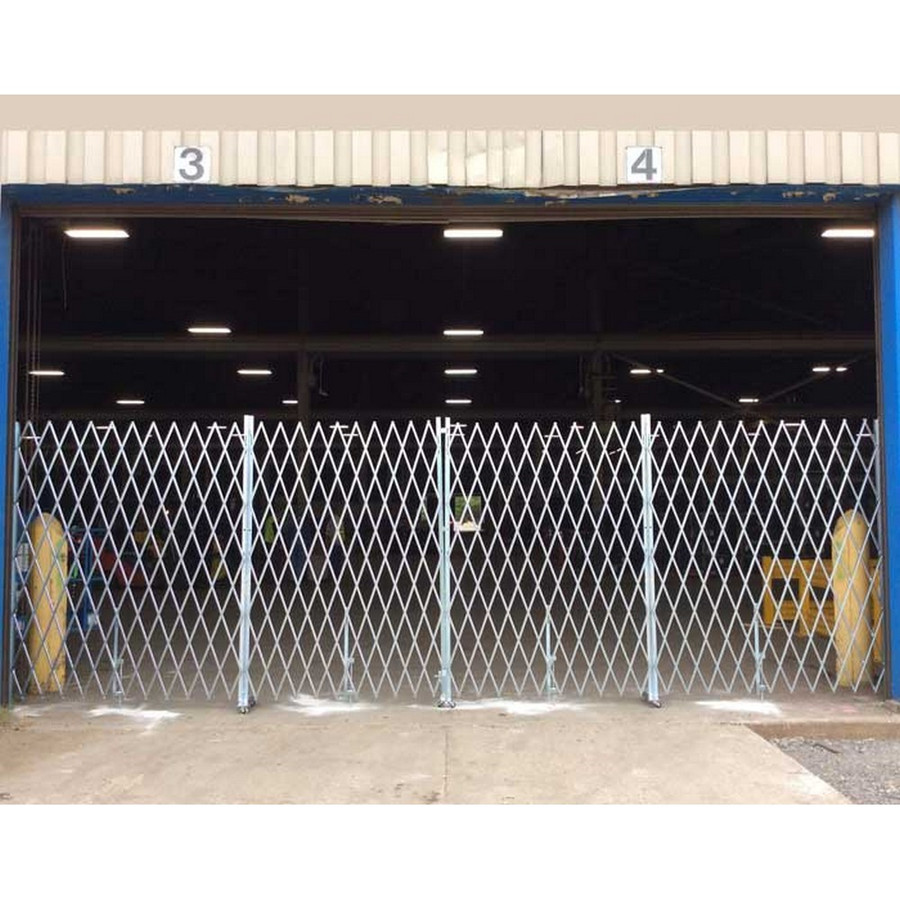

The IEPPFG1665-ANG Retractable Folding Gate from Illinois Engineered Products is designed to secure openings such as loading docks, doors, hallways, and entrances while preserving light, air flow, and visibility. The double gate configuration provides a wider barrier with a combined width range of 14 to 16 feet, making it suitable for securing larger openings without completely blocking access. The system folds back and pivots on its mounting, allowing the gate to move completely out of the way when access is required, and it loses 6 inches of height when extended to its full width, which can help with clearance in tight spaces.
Constructed for durability, the vertical frame is built from heavy-duty 12-gauge steel with 14-gauge steel webbing. The galvanized finish enhances corrosion resistance and makes cleaning easier, which is advantageous in facilities with exposure to moisture or industrial dust. The lattice consists of heavy-duty 14-gauge steel U-channel webbing riveted to aircraft-quality aluminum rivets, contributing to a rigid, secure barrier that still permits light and air passage. The gate ships unassembled and includes mounting brackets, bearing washers, and solid steel casters to facilitate installation; lag bolts and padlocks are not included, so you can select hardware to fit your specific mounting surface and security requirements.
This product is suited for securing receiving areas, lift-up doors, hallways, and entryways where controlled access is important but unrestricted ventilation and visibility are still desired. When planning installation, consider the need for padlock security and the necessary mounting hardware, as these are not part of the package. With its galvanized finish and robust construction, the gate is designed for environments where durability and straightforward maintenance are priorities, while the folding mechanism helps maximize space and minimize obstruction when the gate is not engaged.
Features:
- Securely separates doors and hallways while permitting light and air flow
- Sturdy 12-gauge steel vertical frame with 14-gauge steel webbing
- Galvanized finish for durability, rust resistance, and easy cleaning
- Foldable gates pivot to move completely out of the opening
- Height reduces by 6" when extended to full width
- Includes mounting brackets, bearing washers, and solid steel casters
- Width:
- 14' to 16'
- Height:
- 6' 6
- Depth:
- 15 stacked per side
- Fits Widths:
- 14' to 16'
- Expanded Height:
- 6'
- Collapsed Height:
- 6' 6
- Frame:
- Heavy-duty 12-gauge 1-1/2 x 1-1/2 vertical angles.
- Casters:
- Solid steel
- Finish:
- Galvanized finish, custom powder coating is also available, consult us for details
- Lattice:
- Heavy-duty 14-gauge steel U-channel webbing riveted back to back with aircraft quality aluminum rivets
- Type:
- Double Gate
- Assembly:
- Ships unassembled
- Weight:
- 150.0 lbs. ea.
- Package Size:
- Each
