Roll Out Rack Universal Sheet Rack

Roll Out Sheet Racks For Sheet Metal & Flat Material Storage

High-density storage that gives you complete access to every sheet, every time

Store sheet metal, plate, panels, and other flat materials in a compact, organized system that provides complete access to every storage level.



Roll Out Universal Sheet Racks combine heavy-duty construction with full-extension drawers and modular configurations, helping manufacturing and fabrication facilities improve material accessibility while making better use of available floor space.



Up to 5,000 lb Capacity Per Drawer
Full-Extension Roll-Out Drawers
Adjustable & Reconfigurable Storage
Multiple Rack Configurations Available





Roll Out Sheet Racks For Sheet Metal & Flat Material Storage

High-density storage that gives you complete access to every sheet, every time

Store sheet metal, plate, panels, and other flat materials in a compact, organized system that provides complete access to every storage level.



Roll Out Universal Sheet Racks combine heavy-duty construction with full-extension drawers and modular configurations, helping manufacturing and fabrication facilities improve material accessibility while making better use of available floor space.



Up to 5,000 lb Capacity Per Drawer
Full-Extension Roll-Out Drawers
Adjustable & Reconfigurable Storage
Multiple Rack Configurations Available



Get A Budgetary Roll Out Rack Quote

Complete the form below and a racking specialist will contact you within one business day.

Value is required
Value is required
Value is required
Value is required
Value is required
Value is required
Value is required
Value is required
This field is required
Value is required
Thank you!

Trusted By Industrial Facilities Across North America

Logo of Magna with stylized text and a red dot.
Logo of Power Design with a lightning bolt icon.
Strattec logo featuring a stylized 'S' and the company name.
Logo of Chatsworth Products with blue and black text.
Logo of Bravo Ordnance with red and black text.
Logo of The Conservation Fund with blue and green elements.
Logo of Magna with stylized text and a red dot.
Logo of Power Design with a lightning bolt icon.
Strattec logo featuring a stylized 'S' and the company name.
Logo of Chatsworth Products with blue and black text.
Logo of Bravo Ordnance with red and black text.
Logo of The Conservation Fund with blue and green elements.

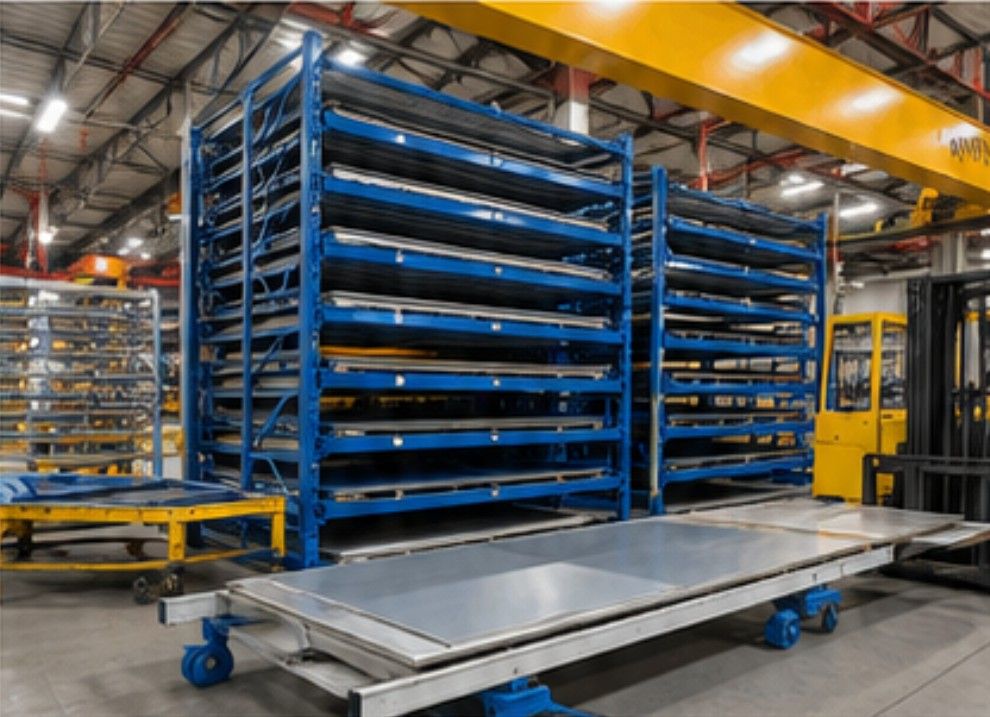

Built to Maximize Space and Improve Productivity

Roll Out Universal Sheet Racks help you organize and protect your material while making every sheet easy to access. Full-extension drawers, adjustable spacing, and heavy-duty construction deliver a smarter way to store sheet metal, plate, panels and more.



✓ Save valuable floor space with high-density verticle storage

✓ Full-extension drawers provide 100% access to material

✓ Adjustable in 3" increments to fit your inventory

✓ Built-in lock-in/lock-out for added safety

✓ Rear loading and depalletizer compatible



Warehouse shelves and equipment in a manufacturing facility.

Configurable to Fit Your Operation

Different materials require different methods of storage. Roll Out Racks offers several systems designed around common manufacturing and material-handling applications.

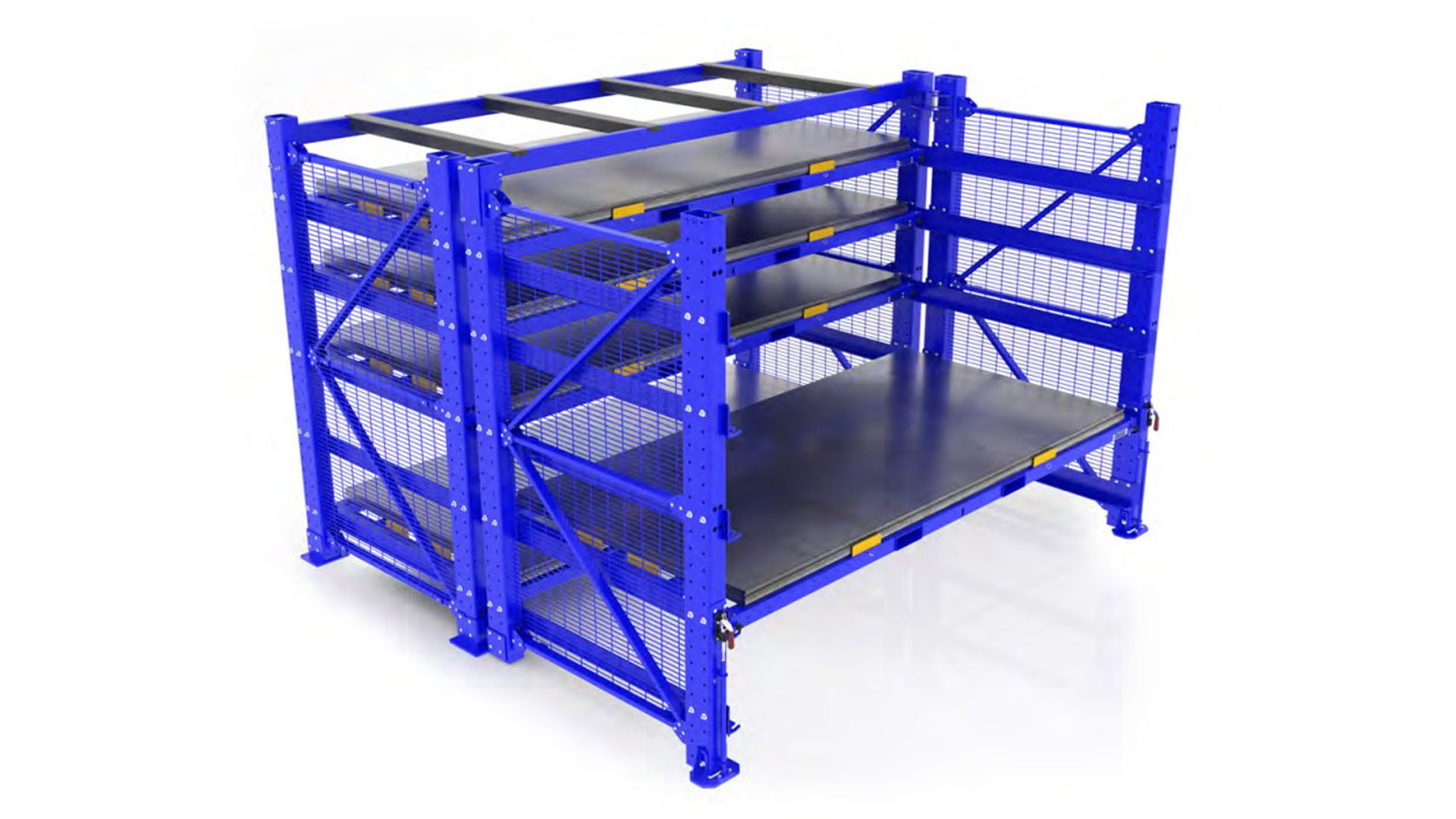

Universal Sheet Rack

The Universal Sheet Rack provides high-density storage for sheet metal, plate, panels, and other flat materials while keeping each storage level easily accessible. Full-extension drawers allow operators to access materials without digging through stacked sheets, while adjustable drawer spacing helps maximize available vertical space. With heavy-duty drawer capacities, the system is well suited for manufacturing, metalworking, and fabrication environments.



Blue metal shelving unit with three shelves and mesh sides.

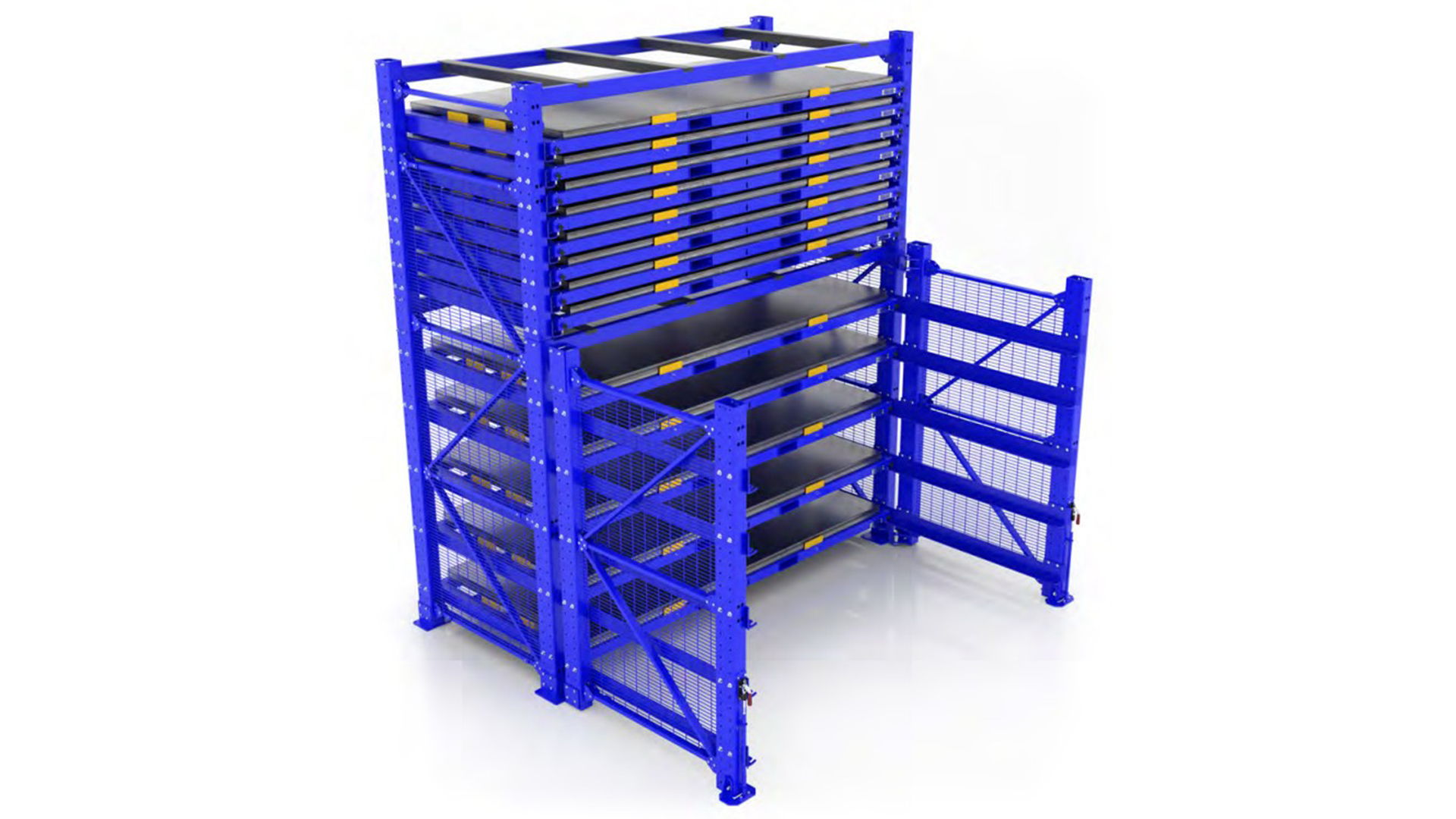

Universal Hybrid Rack

The Universal Hybrid Rack combines roll-out drawers and fixed storage levels in one system, giving facilities greater flexibility for materials with different handling requirements. Frequently accessed sheets can be stored on full-extension drawers, while other materials can be kept on fixed levels or cassettes. This configuration is ideal for operations that need multiple storage methods without dedicating additional floor space to separate racks.



Blue storage rack with multiple shelves and open sides.

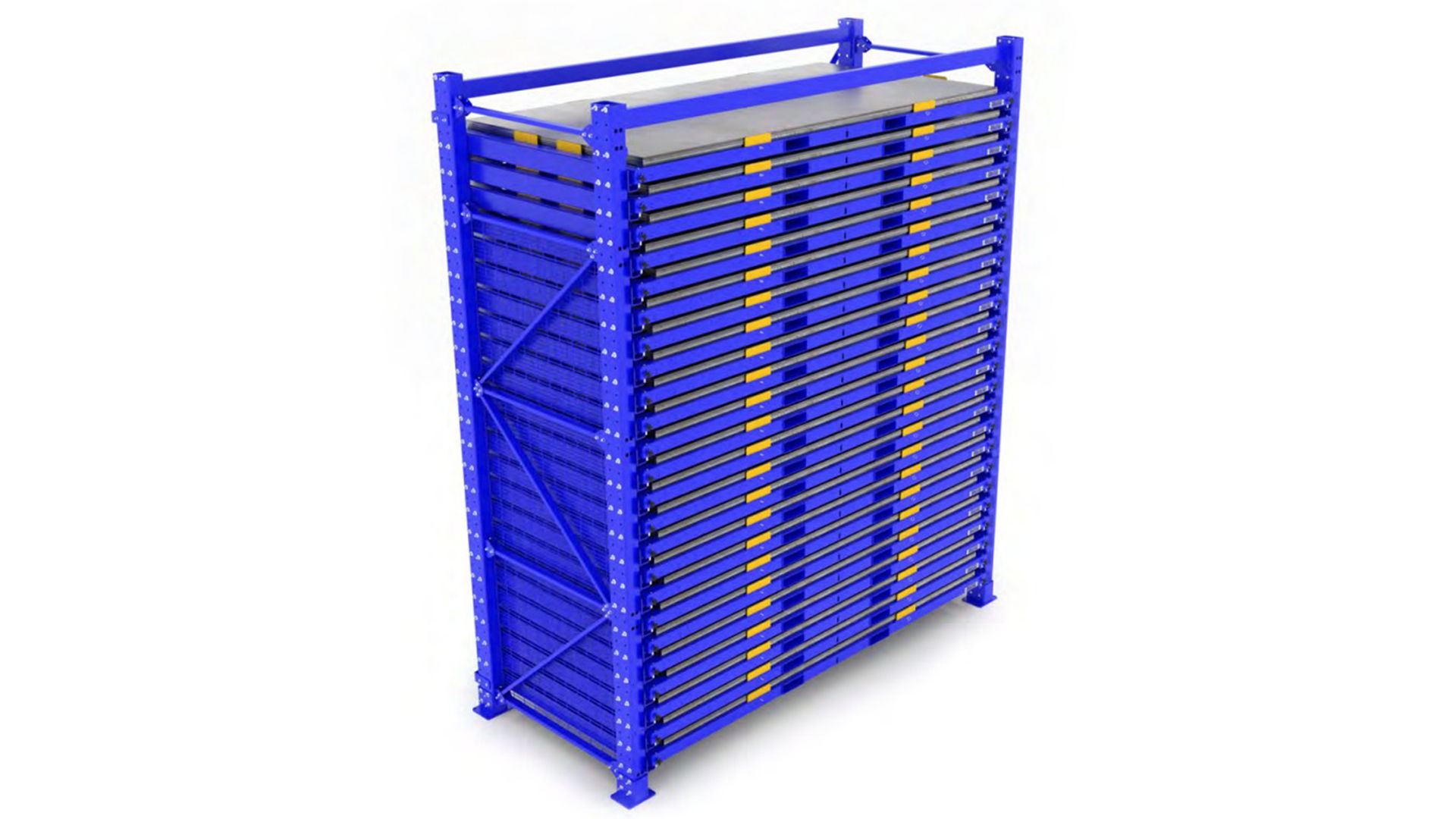

Universal Sheet Tower

The Universal Sheet Tower takes advantage of vertical space to increase storage capacity within a compact footprint. Designed for facilities with larger inventories or limited floor space, the tower configuration provides multiple levels for organizing sheet metal and other flat materials. It is an effective solution for manufacturers looking to consolidate material storage and reduce the amount of valuable production space dedicated to inventory.



Blue folding cot with a striped design and sturdy frame.

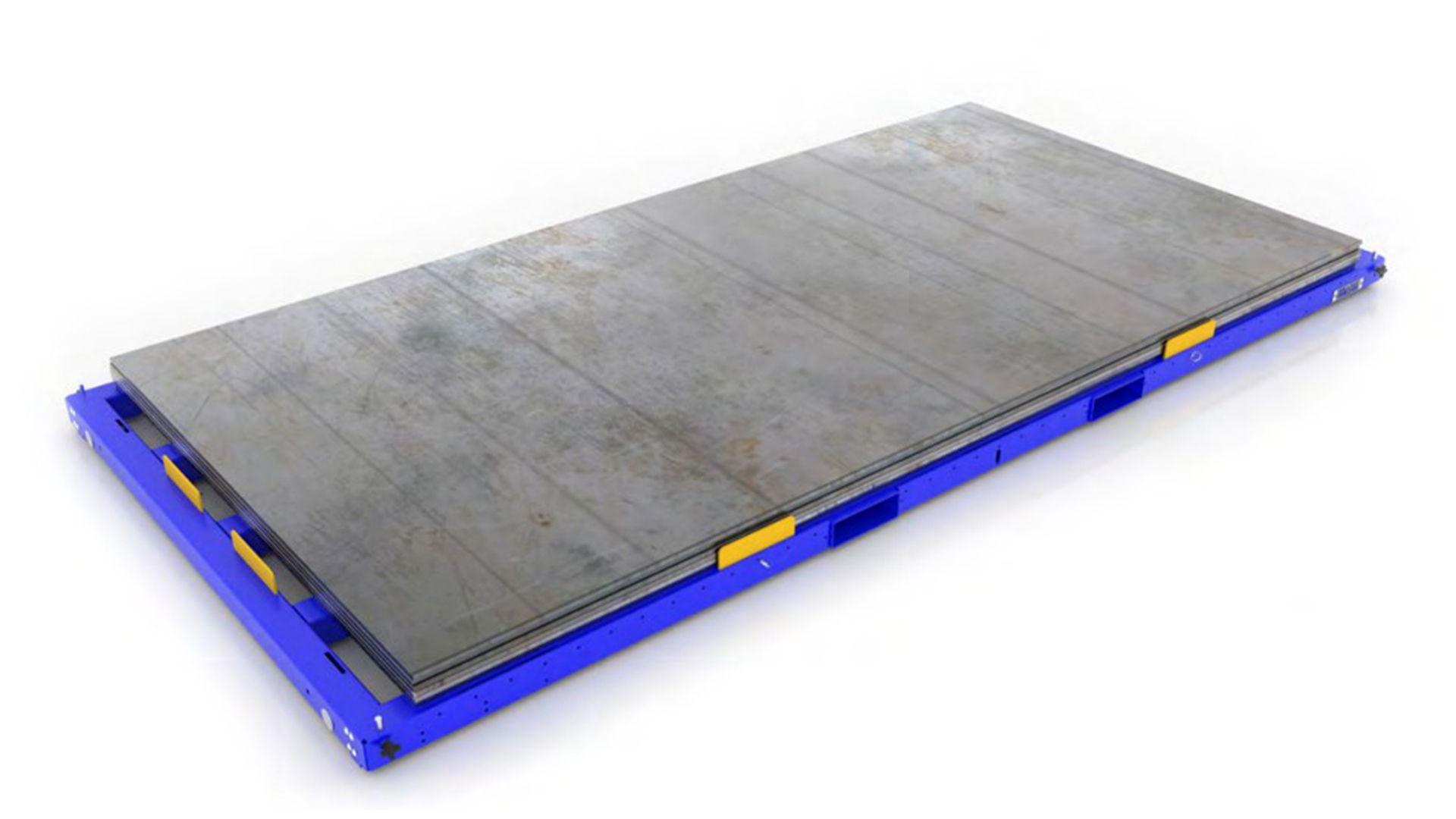

Universal Drawer

The Universal Drawer provides full-extension access to stored sheets and materials, making loading, unloading, and material selection more efficient. Drawers can be incorporated throughout a Universal storage system and configured based on material size, weight, and required clearance. Universal cassettes also provide additional flexibility, with the ability to be converted into roll-out drawers as storage requirements change.



Blue and gray loading dock plate for forklifts.

Universal Sheet Rack Specifications

  • Available Heights: 8 ft, 12 ft, 14 ft, 15 ft, 16 ft
  • Standard Drawer Sizes: 96×48, 120×48, 120×60, 144×60, 144×72
  • Drawer Load Capacity: Up to 5,000 lb UDL (uniformly distributed load)
  • Maximum Number of Drawers per Rack: Up to 13 drawers per rack, with additional cassettes above 96 inches
  • Cassette Modularity: Cassettes can be converted into drawers by adding a bearing kit
  • Adjustable Stops: Each cassette comes with 6 removable stoppers, expandable to 8
  • Laser Cutting Compatibility: Stoppers can be removed temporarily to slide sheets directly into the laser cutting machine
  • Cassette Identification: Pre-drilled holes allow for identification plates with rivets
  • Stackability: Cassettes can be stacked at full capacity using the stacking kit, eliminating wooden pallets
  • Structural Stability: Door Locks are designed to keep vertical posts parallel when drawers are extended



Popular Options

  • Hinged frames
  • Double hinged frames
  • Drawer and fixed levels combined
  • Removable stoppers for drawers
  • Cradle for cylinders and round parts
  • Solid top for drawers
  • Wire mesh top for drawers
  • UHMW protective lining for fragile parts or stainless steel.



How The Process Works

Clipboard with checkmarks and a dollar sign icon.

Step 1

Submit Project Information

Tell us what you're storing and provide material dimensions, weights and facility information.

Support icon

Step 2

Review Your Requirements

Our project team reviews your storage needs, available space, material handling methods, and operational requirements.



Clipboard with checkmarks and a dollar sign icon.

Step 3

Receive Budgetary Pricing

We'll identify the appropriate Roll Out Racks solution and provide recommendations with initial budgetary pricing.

Blueprint Icon

Step 4

Finalize Design & Pricing

We'lll work with you to confirm rack configuration, dimensions, capacities and other project requirements before finalizing your quote.

Hand holding a gear

Step 5

Coordinate Delivery & Installation

The Safety Source coordinates ordering, delivery ad applicable installation requirements to help keep your project moving from approval to completion.

Why Companies Choose The Safety Source

Application-Focused Solutions

Every facility is different. We look at what you're storing, material dimensions and weight, available floor space, and how materials are handled before recommending a solution.

Industrial & Manufacturing Experience

We work with manufacturing, automotive, fabrication, warehousing, and other industrial facilities, giving us a practical understanding of space constraints, material handling, safety, and production requirements.

Solutions Built Around Your Facility

Whether you're trying to organize sheet metal, store long materials, free up production space, or improve access to raw materials, we'll help develop a solution around your specific application.

More Than Just a Rack Supplier

Our team can help with the entire project—from selecting the appropriate rack system and configuration to coordinating the next steps for your facility.

Industrial warehouse with metal racks and a forklift.

Ready To Improve Your Storage?

Tell us about your facility and we'll help you find the right Roll Out Rack Solution.



500+

Industrial Projects Completed



Nationwide

Installation Support

20+ Years

Serving Industrial Facilities

Frequently Asked Questions

How much weight can each drawer hold?

Universal Sheet Rack drawers are available with capacities of up to 5,000 lbs UDL (uniformly distributed load) per drawer.

What sheet sizes can the rack accommodate?

Standard drawer sizes include 96" × 48", 120" × 48", 120" × 60", 144" × 60", and 144" × 72". Your application should be reviewed to determine the appropriate configuration.



How many drawers can a rack have?

Depending on the rack configuration, Universal Sheet Racks can accommodate up to 13 drawers per rack, with additional cassette storage potentially available above 96 inches.

Can drawer spacing be adjusted?

Yes. Drawer positions can be configured in 3-inch increments, allowing spacing to be optimized around the materials being stored.



Can cassettes be converted into drawers later?

Yes. Universal cassettes can be converted into roll-out drawers by adding the appropriate bearing kit, providing additional flexibility as storage requirements change.
