Roll Out Rack Pallet Rack Systems

Roll Out Pallet Systems for Faster, Safer Material Access

Bring Palletized Materials Within Reach

Bring palletized materials directly to your operators with heavy-duty roll out pallet systems designed for manufacturing, warehousing, and industrial storage applications.



Available in Rack-Mounted and Floor-Mounted Configurations

Roll Out Pallet Systems for Faster, Safer Material Access

Bring Palletized Materials Within Reach

Bring palletized materials directly to your operators with heavy-duty roll out pallet systems designed for manufacturing, warehousing, and industrial storage applications.



Available in Rack-Mounted and Floor-Mounted Configurations

Get A Budgetary Roll Out Rack Quote

Complete the form below and a racking specialist will contact you within one business day.

Value is required
Value is required
Value is required
Value is required
Value is required
Value is required
Value is required
Value is required
This field is required
Value is required
Thank you!

Trusted By Industrial Facilities Across North America

Logo of Magna with stylized text and a red dot.
Logo of Power Design with a lightning bolt icon.
Strattec logo featuring a stylized 'S' and the company name.
Logo of Chatsworth Products with blue and black text.
Logo of Bravo Ordnance with red and black text.
Logo of The Conservation Fund with blue and green elements.
Logo of Magna with stylized text and a red dot.
Logo of Power Design with a lightning bolt icon.
Strattec logo featuring a stylized 'S' and the company name.
Logo of Chatsworth Products with blue and black text.
Logo of Bravo Ordnance with red and black text.
Logo of The Conservation Fund with blue and green elements.

Improve Access to Palletized Materials

Roll Out Pallets transform static pallet positions into accessible storage locations. Heavy-duty rollers allow the platform to extend smoothly from the rack, giving employees access to materials that would otherwise be difficult to reach.



This makes the system especially valuable for manufacturing environments where employees frequently pick components, raw materials, containers, tooling, or supplies directly from pallets.



Easier Material Access

Pull the pallet out toward the operator instead of requiring employees to reach deep into the rack.



Improved Ergonomics

Reduce unnecessary bending, reaching, and crawling when retrieving products from pallet positions.



Better Space Utilization

Maintain compact pallet storage while creating convenient access to the materials stored within each position.



Built for Industrial Use

Heavy-duty steel construction and enclosed bearings provide dependable operation in demanding manufacturing and warehouse environments.

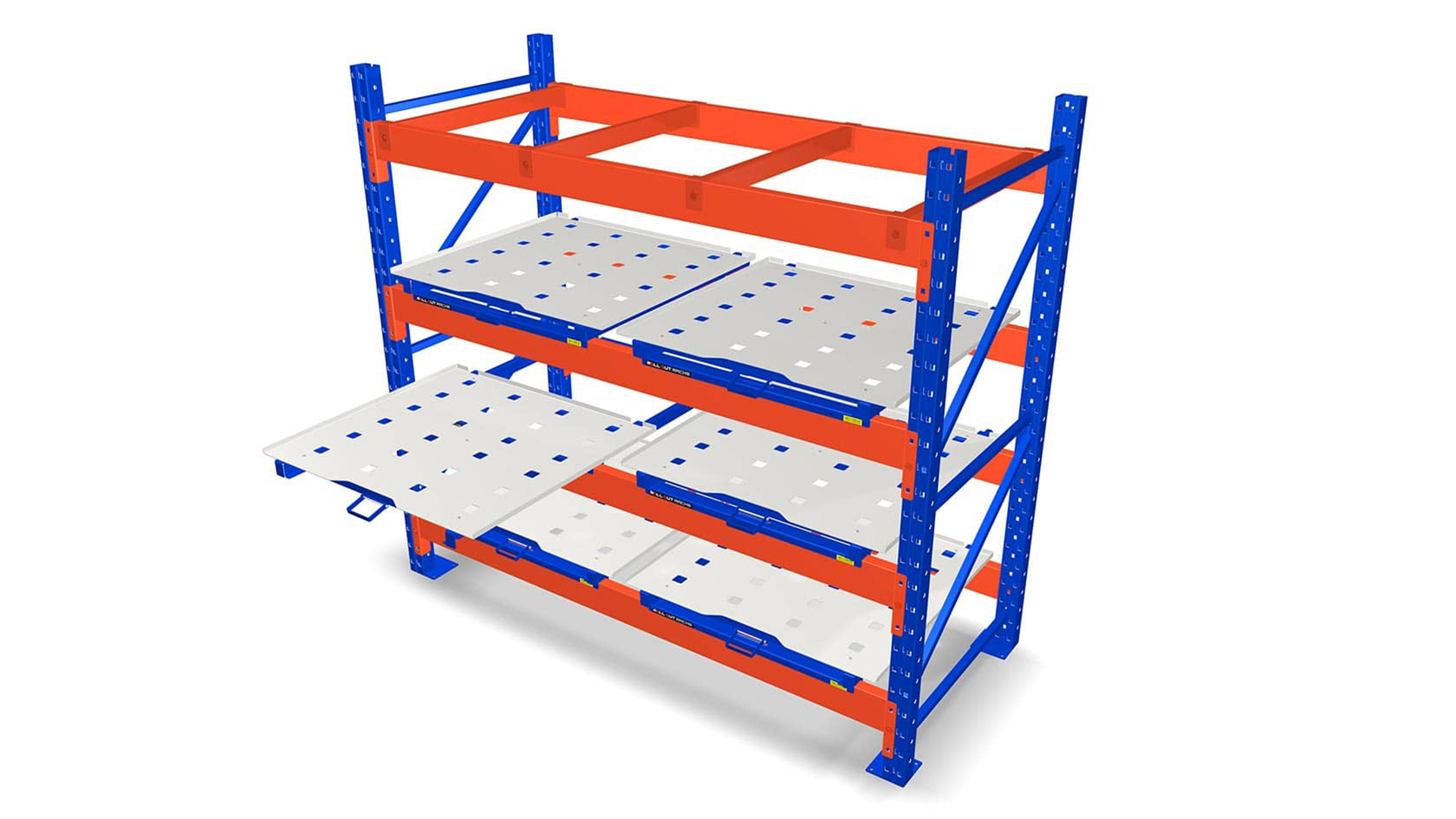

A blue and orange shelving unit with multiple shelves.

Two Roll Out Pallet Configurations

Roll Out Pallet systems are available in two configurations to accommodate different storage layouts, load requirements, and existing rack systems. Choose between rack-mounted and floor-mounted options to create easier access to palletized materials while making better use of your available storage space.



Rack-Mounted Roll Out Pallet

The rack-mounted Roll Out Pallet converts an existing pallet rack position into an accessible pull-out storage location.



The platform installs directly into compatible pallet racking and allows workers to pull stored materials into the aisle for easier picking. Its lightweight, modular construction minimizes additional load on the rack while providing a durable solution for frequently accessed inventory.



Capacity: Up to 1,000 lb UDL



Compatible with structural and roll-formed pallet racking.

Floor-Mounted Roll Out Pallet

The floor-mounted Roll Out Pallet operates on tracks installed directly on the floor underneath the pallet rack.



The platform extends outward from the rack, bringing the entire pallet into an accessible working position. Because employees no longer need to crawl or reach underneath the rack, facilities can potentially position the first rack beam lower and make better use of available vertical storage space.



A standard braking system helps secure the platform during loading and unloading.



Capacity: Up to 3,000 lb UDL



Compatible with pallet racking from North American rack manufacturers.


Roll Out Pallet Rack Specifications

Feature Rack Mounted Floor Mounted

Load Capacity



Up to 1,000 lb UDL



Up to 3,000 lb UDL



Installation



Mounted within pallet rack



Floor-mounted track system



Rack Compatibility



Structural & roll-formed rack*



Compatible with North American rack manufacturers*



Construction



Heavy-duty steel



Heavy-duty steel



Bearings



Enclosed bearings



Enclosed bearings



Platform



Multiple sizes and surfaces available



Multiple sizes and surfaces available



Top Plate



Interchangeable



Interchangeable



Lock-Out



Optional



Optional



Configuration



Modular



Modular



*Contact The Safety Source to verify compatibility with your existing pallet racking.



How The Process Works

Clipboard with checkmarks and a dollar sign icon.

Step 1

Submit Project Information

Tell us what you're storing and provide material dimensions, weights and facility information.

Support icon

Step 2

Review Your Requirements

Our project team reviews your storage needs, available space, material handling methods, and operational requirements.



Clipboard with checkmarks and a dollar sign icon.

Step 3

Receive Budgetary Pricing

We'll identify the appropriate Roll Out Racks solution and provide recommendations with initial budgetary pricing.

Blueprint Icon

Step 4

Finalize Design & Pricing

We'lll work with you to confirm rack configuration, dimensions, capacities and other project requirements before finalizing your quote.

Hand holding a gear

Step 5

Coordinate Delivery & Installation

The Safety Source coordinates ordering, delivery ad applicable installation requirements to help keep your project moving from approval to completion.

Why Companies Choose The Safety Source

Application-Focused Solutions

Every facility is different. We look at what you're storing, material dimensions and weight, available floor space, and how materials are handled before recommending a solution.

Industrial & Manufacturing Experience

We work with manufacturing, automotive, fabrication, warehousing, and other industrial facilities, giving us a practical understanding of space constraints, material handling, safety, and production requirements.

Solutions Built Around Your Facility

Whether you're trying to organize sheet metal, store long materials, free up production space, or improve access to raw materials, we'll help develop a solution around your specific application.

More Than Just a Rack Supplier

Our team can help with the entire project—from selecting the appropriate rack system and configuration to coordinating the next steps for your facility.

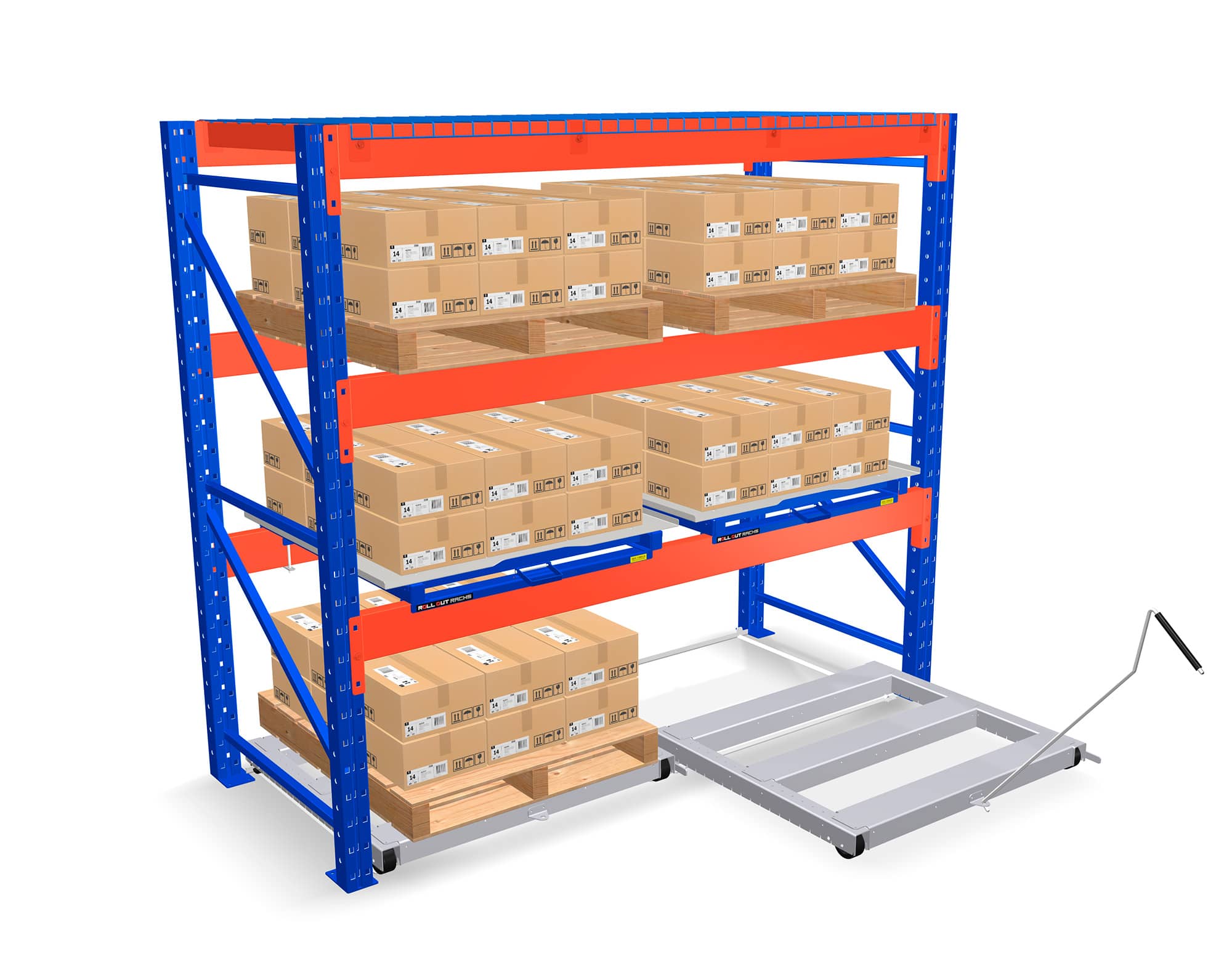

Warehouse shelving unit with stacked boxes on pallets.

Ready To Improve Your Storage?

Tell us about your facility and we'll help you find the right Roll Out Rack Solution.



500+

Industrial Projects Completed



Nationwide

Installation Support

20+ Years

Serving Industrial Facilities

Frequently Asked Questions

What is a Roll Out Pallet?

A Roll Out Pallet is a heavy-duty sliding platform that allows an entire pallet position to extend outward from a storage rack. This gives employees easier access to materials without reaching or crawling into the rack.

What is the difference between rack-mounted and floor-mounted Roll Out Pallets?

Rack-mounted systems install directly into compatible pallet racking, while floor-mounted systems travel along tracks installed on the floor beneath the rack. The best configuration depends on load capacity, existing racking, available space, and how the pallet will be accessed.



How much weight can a Roll Out Pallet hold?

Rack-mounted Roll Out Pallets are available with capacities up to 1,000 lb UDL, while floor-mounted models can support loads up to 3,000 lb UDL.

Can Roll Out Pallets be installed in existing pallet rack?

Yes. Rack-mounted Roll Out Pallets are designed for structural and roll-formed racking, while floor-mounted systems are compatible with pallet rack from North American manufacturers. Existing rack capacity and the intended application should be evaluated before installation.



Can Roll Out Pallets be customized?

Yes. The modular design allows different platform sizes, surface configurations, top plates, and optional features to accommodate different materials and applications.
