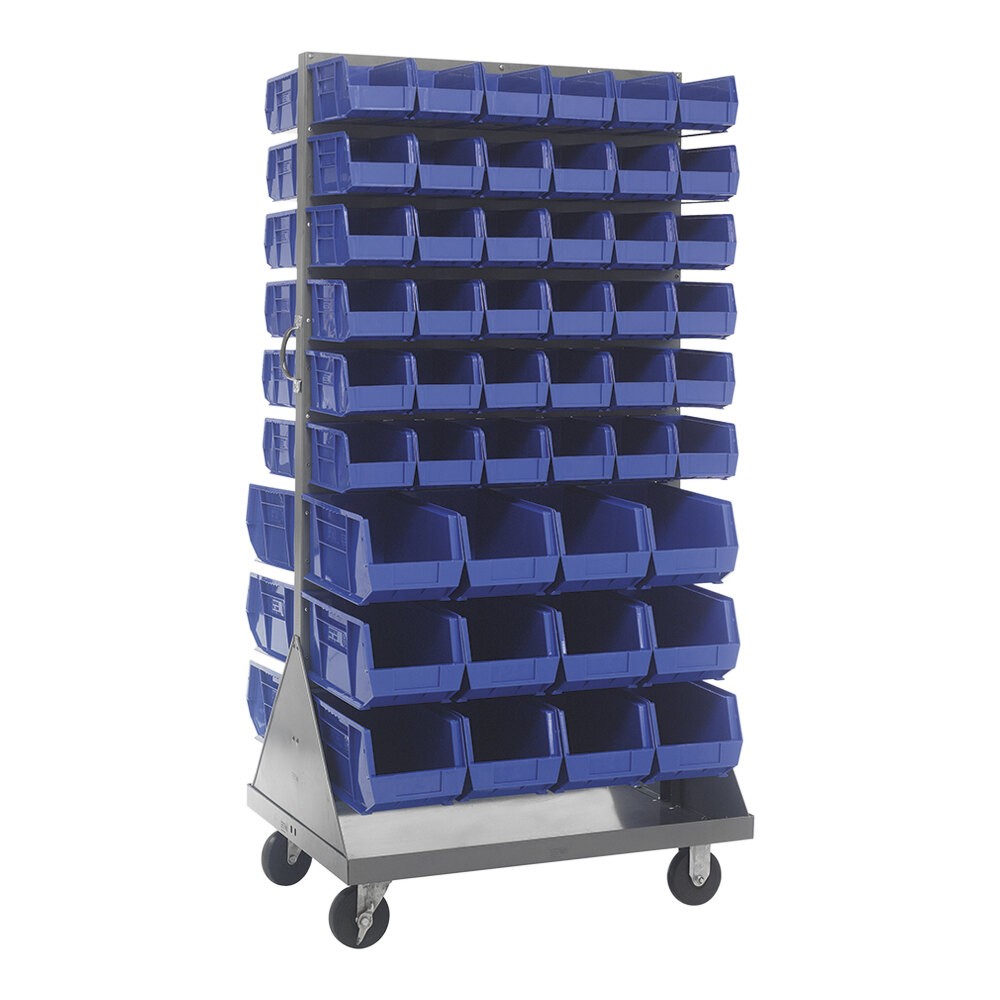

The Quantum Storage Systems QMD-36H-230240BL is a mobile, double-sided louvered rack designed to organize small parts and supplies in industrial spaces. Built from 16-gauge cold-rolled steel with a gray enamel-coated finish, this unit provides a sturdy frame capable of handling heavy use in garages, warehouses, packing stations, or shipping and receiving departments. It rolls on a total of four 5-inch casters—two rigid and two swivel—with brakes on the swivel pair to help you move the rack between work zones and lock it securely during loading and unloading. Handles on both sides offer convenient maneuverability during setup and reconfiguration.
The system ships with 96 blue polypropylene bins that attach to the louvered rack for flexible storage. The top 72 bins measure 10 7/8 inches by 5 1/2 inches by 5 inches and support up to 35 pounds each, while the bottom 24 bins are 14 3/4 inches by 8 1/4 inches by 7 inches and can hold up to 65 pounds each. Each bin features front, side, and back grips for easy attachment and removal, open hopper fronts for quick access, and molded-in front label slots to help with part identification and organization. Built-in rear hangers on the bins enable customized layout on the rack to maximize space efficiency. The rack has a total load capacity of 1,200 pounds and ships as a kit that requires assembly.
This versatile, mobile storage solution is suitable for areas with frequent material handling needs, including packing stations and shipping/receiving desks, where organized retrieval and space optimization are important. Individual bin capacities should be matched to the weight profile of the items to prevent overloading, and the brakes should be engaged during periods of idleness or during loading and unloading to maintain stability. The unit’s dimensions (36 inches wide, 25 inches deep, 72 inches high) and 96-bin arrangement are important for planning aisle clearance, rack reach, and bin access from both sides.
Features:
- Durable 16-gauge steel rack with gray enamel finish
- Includes 96 polypropylene bins (72 small, 24 large)
- Mobile design with 2 rigid and 2 swivel casters with brakes
- Front, side, and back grips for secure bin attachment
- Total capacity up to 1,200 lb
- Bins engineered for easy handling and organization
- Enables efficient space utilization in multiple work environments
- Quantity:
- 1/Each
- Shipping Weight:
- 217 lb.
- Width:
- 36 Inches
- Depth:
- 25 Inches
- Height:
- 72 Inches
- Bin Length:
- 10 7/8 - 14 3/4 Inches
- Bin Width:
- 5 Inches
- Bin Height:
- 5 - 7 Inches
- Bin Capacity:
- 35 - 65 lb.
- Brakes:
- With Brakes
- Capacity:
- 1,200 lb.
- Casters:
- With Casters
- Color:
- Blue
- Features:
- With Label Holder
- Finish:
- Enamel
- Gauge:
- 16 Gauge
- Installation Type:
- Mobile
- Material:
- Steel
- Number of Bins:
- 96 Bins
- Shape:
- Rectangle
- Type:
- Louvered Racks
- Package Size:
- Kit
