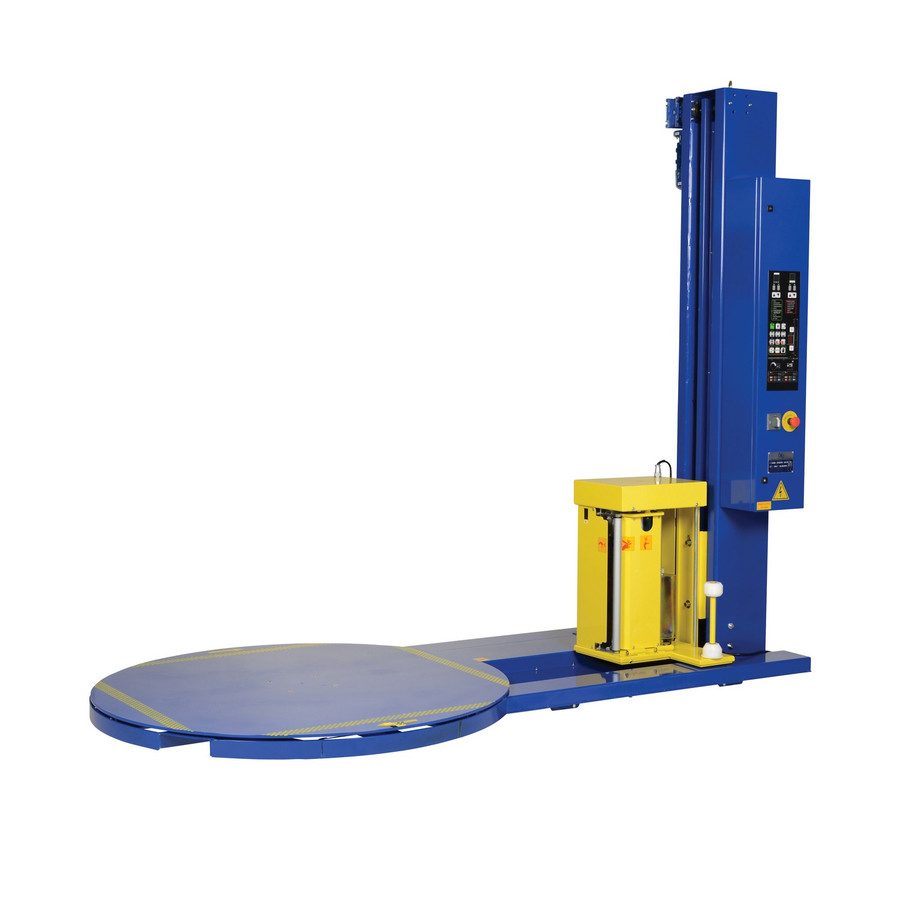

The Vestil SWA-60-AW Auto-Wrap Stretch Wrap Machine is designed to improve shipping productivity by automating the pallet-wrapping process. It features a user-friendly control center and a digital control circuit that lets operators set the number of pallet rotations and select from multiple wrapping patterns. With four standard multifunction wrapping patterns, this machine simplifies the wrapping workflow: the operator secures the film on the carousel, presses start, and removes the wrapped pallet once the cycle finishes. A powered carousel provides variable speeds with a soft start and stop, helping to minimize film waste and improve wrap consistency. Photocell sensors automatically adjust to different pallet heights, enabling easier operation across varying load sizes.
Constructed from steel, the unit is built for rugged, long-lasting use in material-handling environments. Its design accommodates substantial pallet loads with a uniform capacity of up to 4,000 lb and a maximum wrap height of 88 inches, making it suitable for a range of standard industrial pallets. The SWA-60-AW uses stretch wrap film with a 20-inch high wrap setting and supports pre-stretch configurations, with a core diameter of 3 inches and compatible with film diameters appropriate for the documented wrap height and load dimensions. The machine plugs into a standard 115/1 electrical supply via a NEMA 5-15 plug and includes a 20-foot power cord for convenient installation near packing lines and conveyors.
Practical considerations include consistent wrap quality through user-selectable speed and pattern options, which can help standardize load stability during transit. The unit’s 59-inch turntable diameter supports broad pallet footprints, while the 3-1/8 inch turntable height keeps height restrictions in mind for loading and unloading. When configuring wrap operations, users should verify pallet dimensions and film roll compatibility to ensure optimal performance and avoid under- or over-wrapping of loads.
Features:
- Automatic wrap technology for increased shipping productivity
- Adjustable wrap speed to fit user preference
- Rugged steel construction for long-lasting use
- 60 in wrap diameter and 88 in wrap height capabilities
- 115V operation with NEMA 5-15 plug
- Supports loads up to 4,000 lb
- Color:
- Blue
- Material:
- Steel
- Uniform Capacity (lb.):
- 4,000
- Turntable Diameter (in.):
- 59
- Wrap Height (in.) (based on 20 (in.) high roll material):
- 88
- Turntable Height (in.):
- 3-1/8
- Maximum Load Diameter (in.):
- 94
- Voltage/Phase:
- 115/1
- Motor Amperage:
- 15
- R.P.M Variables:
- 0-13
- 20 (in.) High Film Wrap Setting Percentage:
- 240
- 20 (in.) High Film Wrap Pre-Stretch Percentage:
- 340
- Stretch Wrap Core Diameter (in.):
- 3
- Max. Stretch Wrap Height (in.):
- 20
- Min. Stretch Wrap Height (in.):
- 10
- Max. Stretch Wrap Outside Diameter (in.):
- 11
- Power Chord Length (ft.):
- 20
- Features:
- NEMA 5-15 plug
- Package Size:
- Each
