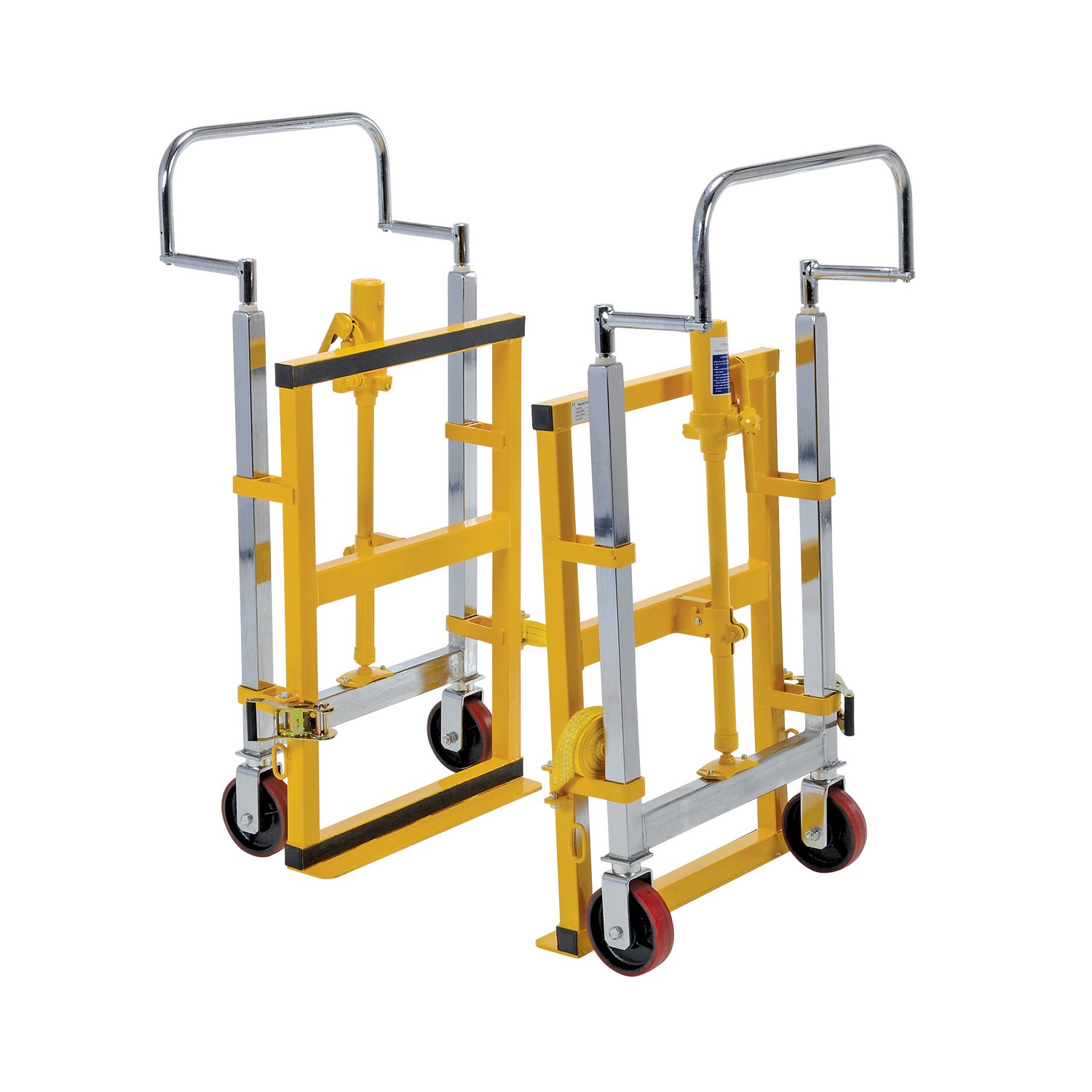

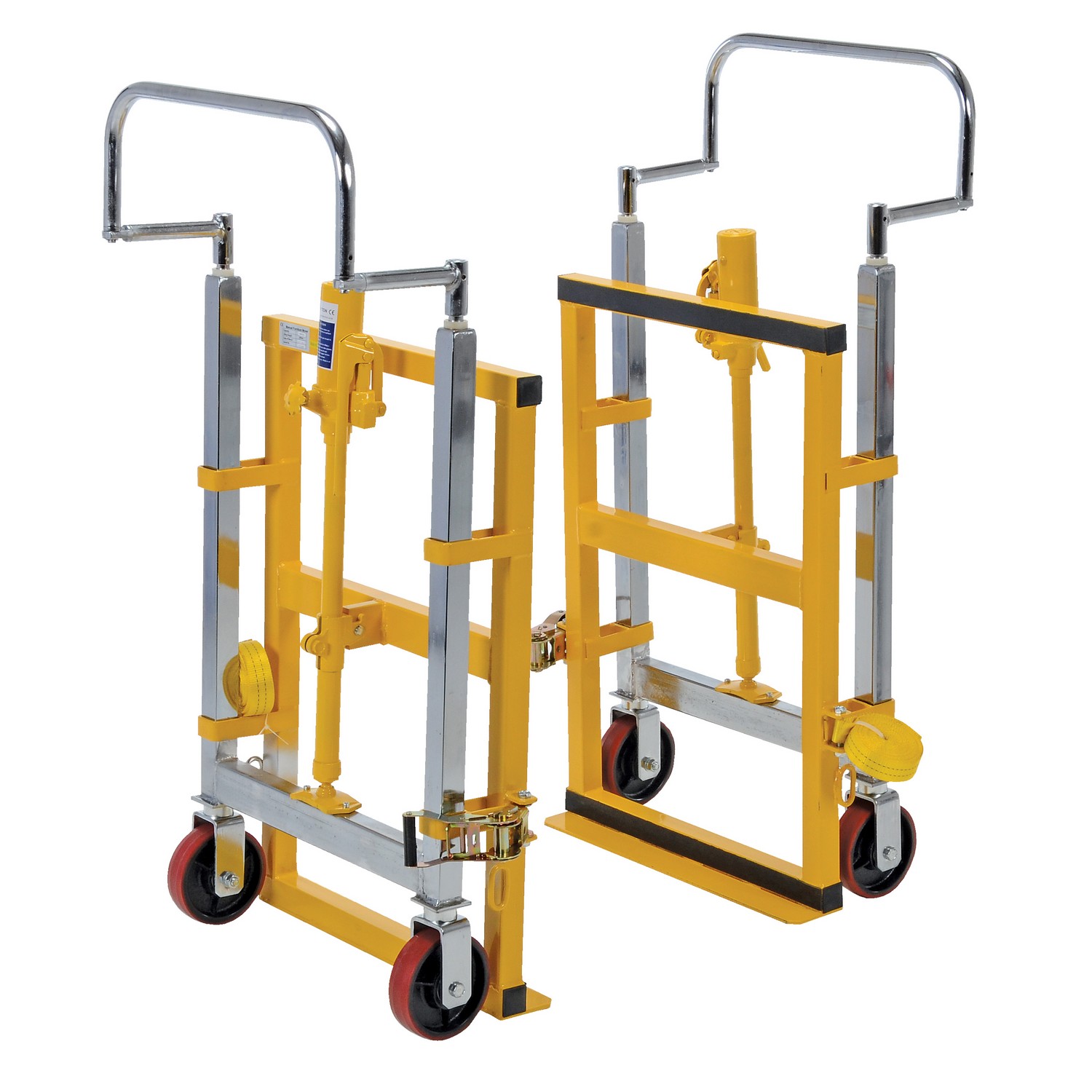

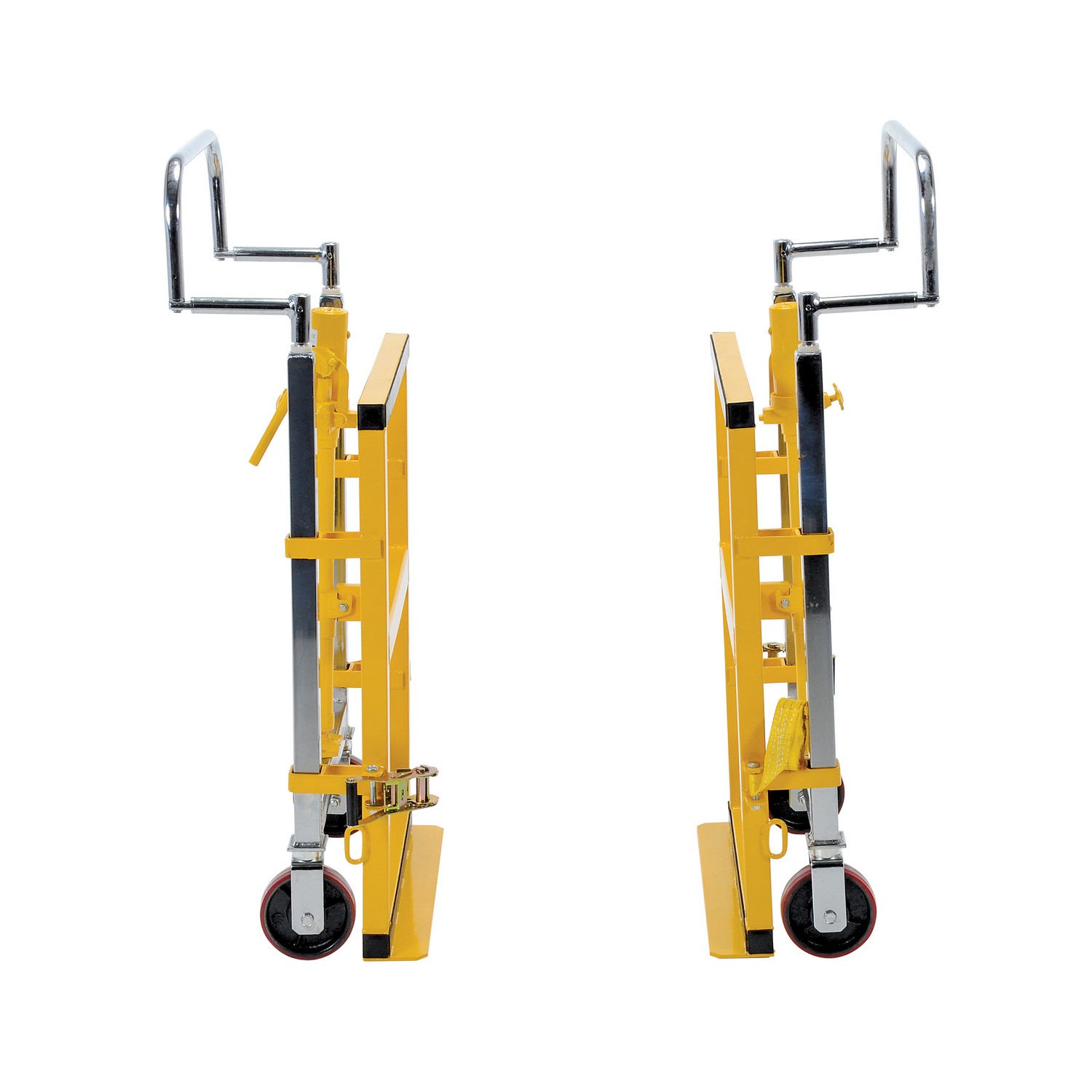

The Vestil MFM-4000 Vend. Machine & Crate Movers are engineered to simplify the relocation of heavy, bulky items such as vending machines, crates, and similar crates or small machinery. With a hydraulic lift operated by a manual hand pump, these movers allow you to lift and transport by simply sliding the nose plate under the load, securing the two Dollies with the included strap, and elevating for movement. The design centers on rugged metal construction and mobility, enabling controlled, stable handling of heavy loads without requiring disassembly.
Constructed with steel components and outfitted with poly-on-steel swivel casters, these movers provide durability and smoother rolling on typical shop floors. The included straps and nose plate dimensions are sized to accommodate larger items: a nose plate approximately 23-1/4 inches by 2-1/4 inches, with a 1/8 inch plate thickness, and strap assemblies about 190 inches long and 5 inches wide. The system features a hydraulic lift with a 10-inch lift height and a total load capacity rated at 4000 lb., making it suitable for mid-to heavy-duty material handling tasks. The lift is controlled via a hand pump, and the casters use a poly-on-steel formulation designed to balance maneuverability with load-bearing capability.
Operational guidance and practical considerations include using the nose plate to slide under the item to be moved, then coupling the two dollies with the provided strap before pumping to raise the load. This setup is intended for use in warehouse or shop-floor environments where floor conditions allow for wheel movement and where items can be safely centered on the nose plate. The MFM-4000 is sold in pairs, and the listed specifications indicate a color in yellow, a characteristic users often associate with visibility in busy workspaces. Maintenance should focus on regular inspection of the hydraulic system, straps, nose plate alignment, and caster wear to ensure safe operation between uses.
Features:
- Move bulky items vending machines
- Easy to use by sliding nose plate under item being moved
- Steel construction offers long lasting rugged use
- Poly-on-steel casters roll smoothly while transporting
- Hydraulic lift with 10 in. lift height
- Handles up to 4000 lb uniform capacity
- Color:
- Yellow
- Material:
- Steel
- Uniform Capacity (lb.):
- 4000
- Lift Style:
- Hydraulic
- Pump Warranty:
- 90 days
- Swivel Caster Diameter (in.):
- 6
- Swivel Caster Width (in.):
- 2
- Caster Material:
- Poly on Steel
- Strap Length (in.):
- 190
- Strap Width (in.):
- 5
- Strap Height (in.):
- 1-1/2
- Nose Plate Width (in.):
- 23-1/4
- Nose Plate Length (in.):
- 2-1/4
- Nose Plate Thickness (in.):
- 1/8
- Lift Height (in.):
- 10
- Handle Height (in.):
- 48-3/8
- Handle Diameter (in.):
- 22-1/4
- Package Size:
- Pair
