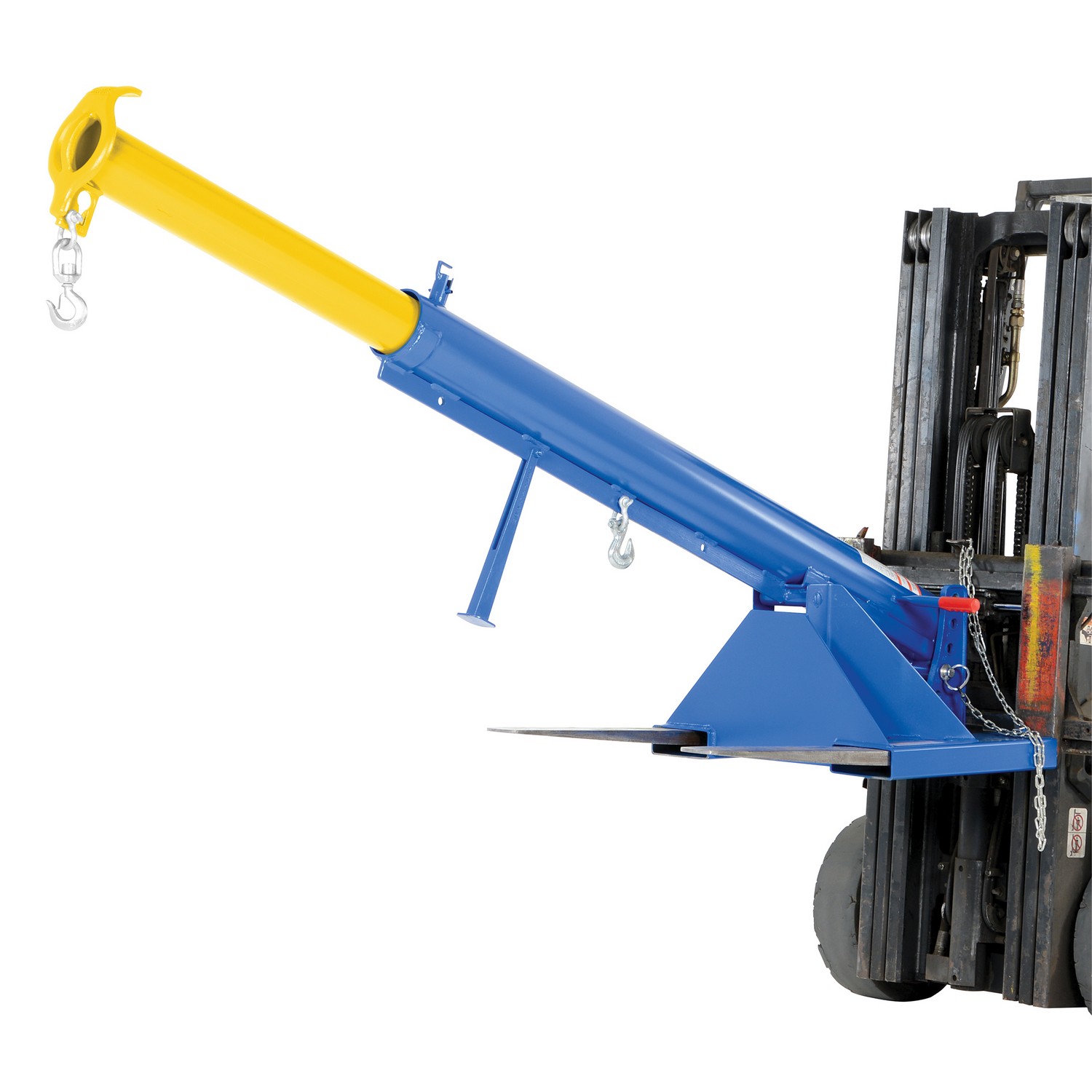

Vestil LM-OBT-4-24 Orbit Telescoping Lift Boom is a heavy-duty lifting accessory designed to transform a forklift into a versatile overhead lifting device. Constructed from structural steel with robotically welded joints, this boom emphasizes strength and durability for long-term service. It features a locking detent and a safety restraint that secures the boom to the fork truck, helping to control movement and reduce risk during operation. The unit includes two lifting hooks to accommodate multiple rigging options and raising tasks across a range of heights.
Features:
- Converts a forklift into an overhead lifting crane
- Fork pockets with safety strap to secure the boom
- Robotically welded steel construction for durability
- Operations & capacity sticker provides user instructions and safety guidance
- Orbit telescoping boom with defined hook heights for controlled lifting
- Maximum rotation 37 degrees for maneuverability
- Single-hook capacities vary with reach (e.g., 4,000 lb at 36")
- Color:
- Blue/Yellow
- Material:
- Steel
- Uniform Capacity (lb.):
- 4,000
- Fork Pocket Center (in.):
- 24
- Fork Pocket Width/Height (in.):
- 7-1/2 x 2-1/2
- Restraint Length (in.):
- 36
- Boom Style:
- Telescoping
- Minimum/Maximum Hook Point (in.):
- 36/144
- Single-Hook Capacity at 36" (lb.):
- 4000
- Single-Hook Capacity at 48" (lb.):
- 3750
- Single-Hook Capacity at 60" (lb.):
- 3500
- Single-Hook Capacity at 72" (lb.):
- 3250
- Single-Hook Capacity at 84" (lb.):
- 3000
- Single-Hook Capacity at 96" (lbs.):
- 2750
- Single-Hook Capacity at 108" (lbs.):
- 2500
- Single-Hook Capacity at 120" (lbs.):
- 2250
- Single-Hook Capacity at 132" (lbs.):
- 2000
- Single-Hook Capacity at 144" (lbs.):
- 1750
- Overall Extended Height (in.):
- 99-1/2
- Retracted Hook Height (in.):
- 6
- Extended Hook Height (in.):
- 78-5/16
- Overall Extended Length (in.):
- 146-5/8
- Max Rotation Degree:
- 37
- Boom Type:
- Orbit Boom
- OSHA:
- 1910.178(a)(4)
- Package Size:
- Each
