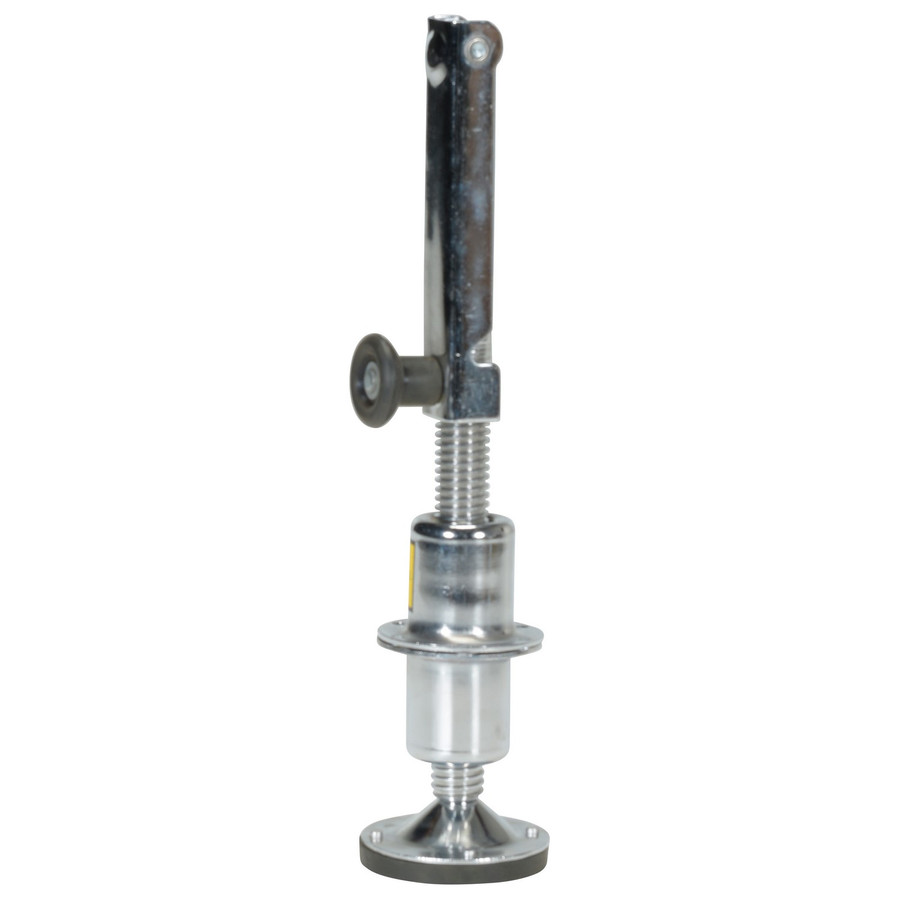

The Vestil LJ-9 Leveling Jack is a permanently installable jack designed to raise, level, and stabilize portable equipment and platforms. Its screw-style housing engages through the platform with a drilled 1-1/4 inch hole, and the platform is bolted between the upper and lower flanges to secure the level at the desired height. The unit includes a folding handle that tucks away when not in use, and a swivel base equipped with a slip-resistant rubber pad to help prevent movement on the floor surface.
Constructed from steel with a polished chrome appearance, this leveling jack provides a reliable 5,000 lb holding capacity and a lift rate of 1/4 inch per crank revolution. The screw travel spans 9 inches from minimum to maximum extension, with an extended height range from 4-1/2 inches up to 13-1/2 inches, enabling precise adjustments as equipment loads change. The combination of a compact screw diameter of 1-1/4 inches and a 3-7/8 inch swivel base helps balance stability with accessibility during installation and maintenance.
Ideal for permanent installation scenarios where equipment needs to be leveled and stabilized, the LJ-9 supports various platform and equipment applications that require controlled height adjustment. The design maintains a low-profile when folded, and the rubber pad on the base adds grip to reduce unwanted movement during operation. When selecting fasteners and installation hardware, ensure compatibility with the platform material and maintain the 1-1/4 inch screw diameter specification for proper engagement.
Features:
- Lifting design raises, levels and stabilizes portable equipment
- Rubber bottom pad provides extra grip
- Jack handle design folds down when not in use
- Designed for permanent installation
- Uniform capacity up to 5,000 lb
- Screw travel of 9 inches for flexible height adjustment
- 1/4 inch lift per crank revolution
- Color:
- Silver
- Material:
- Steel
- Uniform Capacity (lb.):
- 5,000
- Handle Length (in.):
- 8-1/2
- Swivel Base Diameter (in.):
- 3-7/8
- Screw Diameter (in.):
- 1-1/4
- Lift Rate Per Crank Revolution (in.):
- 1/4
- Minimum Extended Height (in.):
- 4-1/2
- Maximum Extended Height (in.):
- 13-1/2
- Screw Travel (in.):
- 9
- Thread Size (millimeter):
- 4
- Holding Capacity (pounds):
- 10,000
- Jaw Opening (in.):
- 3-1/4
- Package Size:
- Each
