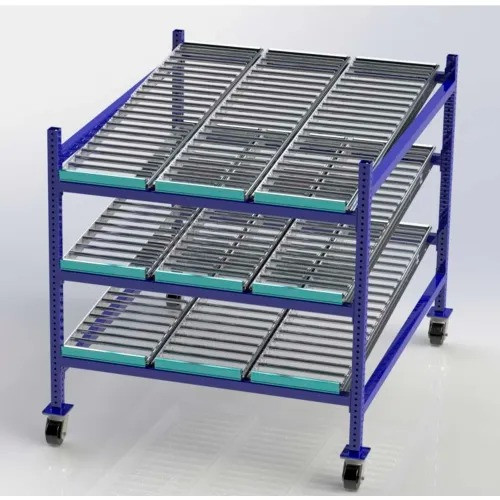

The UNEX FCM99SR48603 Flow Cell Mobile Gravity Rack is a three-level rack system designed to optimize material handling on assembly lines and in storage areas where flow-through picking improves efficiency. This mobile starter rack uses gravity feed to move items from the back toward the front, helping reduce handling time and labor costs. The unit measures 48 inches wide by 60 inches deep and 54 inches high, with a total weight of 336 pounds, and supports a substantial shelf capacity to accommodate heavy parts or components across multiple levels.
Constructed with a steel frame and aluminum shelf components, the rack features three levels with three sets of 15-inch-wide tracks per level on 3-inch centers, and a total shelf capacity of 1,000 pounds per level. It is mounted on rugged 4-inch by 2-inch polyolefin plastic swivel casters with brakes, providing mobility and locking capability to stabilize the rack during use. The roll-through track configuration (roller) enables smooth gravity-driven flow, aiding quick replenishment and order picking. Assembly is required to set up this mobile rack and ensure proper alignment of tracks and casters.
Ideal for spaces where accessible storage is limited, this Blue Unex rack helps organize components and streamline picking operations by letting items roll to the front as space becomes available. Its mobility supports reconfiguration of the workspace as needed, and its gravity-fed design reduces manual handling for compatible SKUs. When planning use, verify that items intended for gravity flow fit within the 1,000-pound per-level capacity and that clearance allows for caster movement and rolling without obstructions. The unit ships as an individual item, and shipping costs may vary by route, so include in your quote for an accurate estimate.
Features:
- Overall dimensions: 48"W x 60"D x 54"H
- Type: Rack Starter
- Weight capacity: 3000 lbs total; 1000 lbs per shelf
- Number of levels: 3
- Shelf material: Aluminum
- Material: Steel
- Wheel type: Polyolefin plastic swivel with brake
- Width:
- 48 in
- Depth:
- 60 in
- Height:
- 54 in
- Weight:
- 336 lbs
- Weight Capacity:
- 3000 lbs
- Assembly Required:
- Yes
- Type:
- Rack Starter
- Shelf Capacity:
- 1000 lbs
- Color:
- Blue
- Number of Levels:
- 3
- Wheel Type:
- Polyolefin Plastic Swivel w/Brake
- Track Configuration:
- Roller
- Mobile or Stationary:
- Mobile
- Material:
- Steel
- Manufacturers Part Number:
- FCM99SR48603
- Shelf Material:
- Aluminum
- Brand:
- Unex
- Package Size:
- Each
