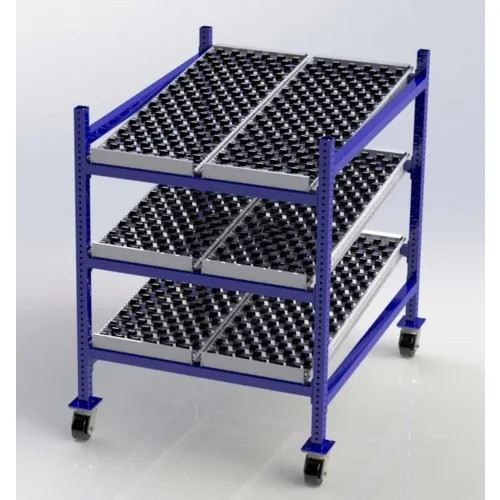

The UNEX FCM99SW36483 Flow Cell Mobile Gravity Rack is a three-level starter rack designed for high-density, gravity-fed storage and order-picking applications. Built from steel and finished in blue, this mobile rack features tilted shelves with a 1000 lb per-shelf capacity and a total shelf capacity of 3000 lbs. With three levels and a wheel-bed track configuration, the unit is configured for gravity flow, allowing items to move from pick zones toward the operator as cartons or totes are dispensed along the track. Its mobile design is supported by rugged 4" x 2" swivel casters with side brakes, enabling repositioning or reconfiguration to suit changing space layouts and workflow demands. Assembly is required, and the overall frame measures 36 inches wide by 48 inches deep by 54 inches high, with a weight of 369 pounds for stability and smooth operation when loaded.
The rack is explicitly described as a gravity flow system that leverages accessible shelf access while utilizing inaccessible storage space efficiently. The tilted shelf design helps promote gravity-fed movement of items along the span track, reducing manual handling and potentially lowering labor costs in busy picking environments. Given its weight and caster-based mobility, it is best suited for warehouses or production areas where temporary or reconfigurable storage and order-picking zones are advantageous. Note that this item is a starter rack and is sold per each, with assembly required before use.
Compatibility considerations include its steel construction and wheel-bed track arrangement, which support smooth movement on factory floors or similar surfaces when loaded up to the specified weight capacities. As with all modular gravity rack systems, verify aisle space and turning radii before deployment, and ensure the floor is rated to support the combined weight of the rack and its payload. This product is not described with any additional certifications or origin details beyond the provided specifications.
Features:
- Brand: Unex
- Type: Rack Starter
- Three levels with tilted shelves
- Weight capacity: 3000 lbs total; 1000 lbs per shelf
- Mobile, wheel bed track configuration
- Material: Steel; Color: Blue
- Dimensions: 36 in W x 48 in D x 54 in H
- Width:
- 36 in
- Depth:
- 48 in
- Height:
- 54 in
- Weight:
- 369 lbs
- Weight Capacity:
- 3000 lbs
- Assembly Required:
- Yes
- Type:
- Rack Starter
- Shelf Capacity:
- 1000 lbs
- Shelf Type:
- Tilted
- Color:
- Blue
- Number of Levels:
- 3
- Track Configuration:
- Wheel Bed
- Mobile or Stationary:
- Mobile
- Material:
- Steel
- Description:
- Mobile Gravity Flow Rack
- Manufacturers Part Number:
- FCM99SW36483
- Brand:
- Unex
- Package Size:
- Each
