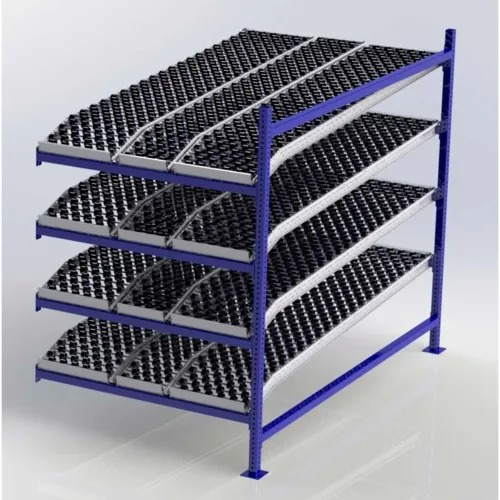

The UNEX FC99SKW48844-A Flow Cell Presentation Gravity Rack Add-On is a multi-level storage extension designed to work within a presentation gravity flow rack system. This 4-level, blue steel add-on provides an efficient wheelbed-based flow path to support prioritized picking and replenishment in high-velocity or high-density packing and assembly environments. Its design integrates seamlessly with the base rack structure to maximize available storage without replacing existing equipment, helping to optimize material handling workflows where items are staged for quick retrieval.
Constructed from welded steel components, the uprights and horizontal beams are manufactured from 1-3/4" square tube steel, with welded base plates for anchoring to the floor. The unit features a wheel bed with knuckled construction and 1.6" hex hub wheels, delivering low-friction movement that supports gravity-fed access to items on each level. Each of the four levels provides a 1,000 lb. shelf capacity, for a total system capacity of up to 3,000 lbs, with individual level load considerations important for maintaining performance. The unit ships as a stationary add-on, requiring assembly, and is powder-coated in blue for durability and corrosion resistance in industrial environments.
This add-on is specified as a 48" wide by 84" deep by 72" tall configuration, designed to be used in conjunction with existing presentation gravity flow racks. It includes two upright posts, four front-to-back beams, and the necessary cross beams per level to support a consistent rack structure. Maintenance considerations include inspecting the welded base plates and wheel hub assemblies during setup and periodically thereafter. When considering purchase, note that the item is not eligible for return or exchange, and shipping costs are calculated at quote time. The part number for this model is FC99SKW48844-A, and it is backed by Unex’s seven-year limited warranty policy.
Features:
- Width: 48 in
- Depth: 84 in
- Height: 72 in
- Weight Capacity: 3000 lbs total
- Shelf Capacity: 1000 lbs per shelf
- Number of Levels: 4
- Material: Steel
- Width:
- 48 in
- Depth:
- 84 in
- Height:
- 72 in
- Weight:
- 671 lbs
- Weight Capacity:
- 3000 lbs
- Assembly Required:
- Yes
- Type:
- Rack Add-On
- Shelf Capacity:
- 1000 lbs
- Color:
- Blue
- Number of Levels:
- 4
- Track Configuration:
- Wheel Bed
- Mobile or Stationary:
- Stationary
- Material:
- Steel
- Description:
- Presentation Gravity Flow Rack
- Manufacturers Part Number:
- FC99SKW48844-A
- Brand:
- Unex
- Package Size:
- Each
