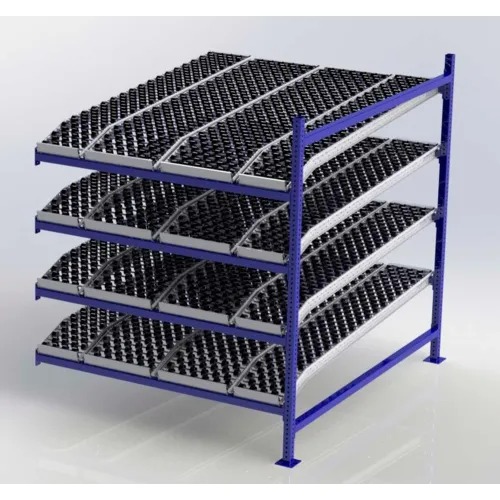

UNEX FC99SKW60724-A Flow Cell Presentation Gravity Rack Add-On, 60"W x 72"D x 72"H

The UNEX FC99SKW60724-A Flow Rack Add-On is a presentation gravity flow rack designed to expand storage in a multi-level pick environment. This 60" W x 72" D x 72" H add-on integrates with existing framework to create a four-level, knuckled wheelbed system that supports efficient order routing and consolidation. The unit features a sturdy steel construction with 1-3/4" square tube uprights and welded base plates for anchoring, and it arrives in a blue powder-coated finish. Each level is rated to support up to 1,000 lb, contributing to a total system capacity of 3,000 lb when used with compatible components. The design includes 4 front-to-back beams and 2 cross beams per level, with 1.6" hex hub wheels and a 5/16" steel axle that enable smooth gravity flow of items along the wheelbed. Assembly is required, and the product is described as a stationary add-on in the rack family.

Practical use of this add-on centers on high-efficiency picking where items can glide along the wheelbed for gravity-assisted presentation and retrieval. The configuration is suited for applications that benefit from level-by-level access and stable, floor-supported storage. Note that the item is sold as a single package unit and is not eligible for return or exchange, with freight or shipping costs calculated separately. When planning deployment, verify compatibility with your existing presentation gravity flow rack system and confirm anchoring requirements for floor installation.

Features:

• Type: Rack Add-On
• Dimensions: 60 in W x 72 in D x 72 in H
• Material: Steel
• Shelf Capacity: 1000 lbs per shelf
• Weight Capacity: 3000 lbs total
• Number of Levels: 4
• Track Configuration: Wheel Bed
• Mobile or Stationary: Stationary
