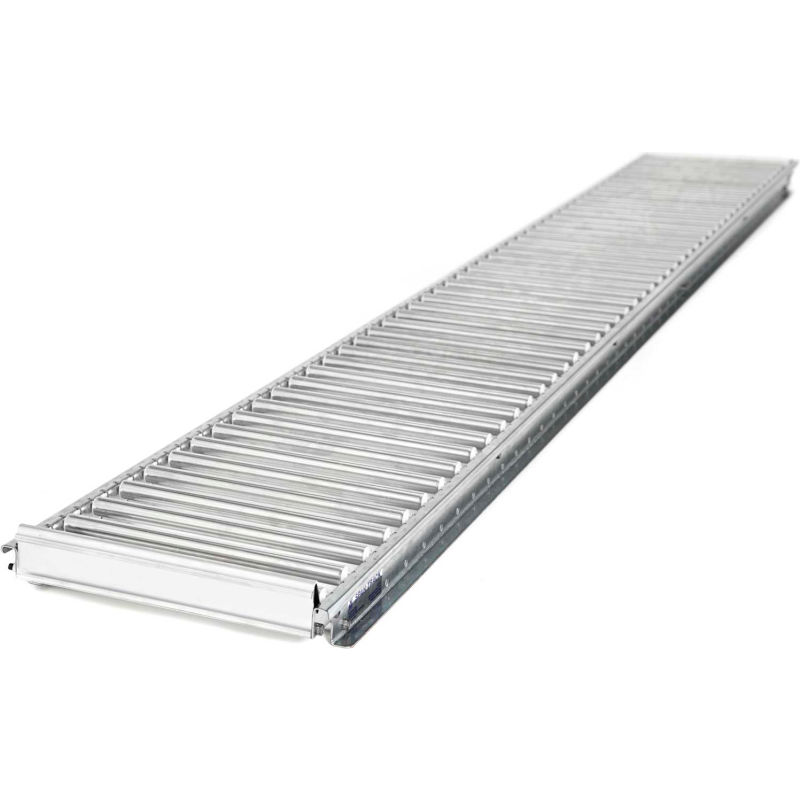

The UNEX 99S5R62X120 Span Track Drop-In Carton Flow Lane is a gravity-driven conveyor component designed for high-efficiency carton handling in pallet rack environments. Its carton flow lane uses a roller track to guide and stabilize items as they move forward by gravity, supporting orderly, single-file feeding from the rear to the front of a rack or workstation. The setup is intended for drop-in installation, enabling straightforward integration into compatible pallet rack systems without requiring complex assembly.
Constructed from steel with a compact footprint, this 120-inch long, 6-inch wide lane accommodates light-to-medium duty loads while maintaining smooth movement through its roller configuration. The unit weighs 24 pounds and carries a shelf capacity of 500 pounds, with a stated weight capacity of 50 pounds per lane, reflecting its suitability for transporting individual cartons or small groups within a controlled flow lane. The black-painted finish helps with compatibility in various facility aesthetics and can aid in identifying serviceable components in storage and warehouse environments. Importantly, installation requires no assembly, allowing for quick deployment when adding carton flow capabilities to existing racking or work cell setups.
Typical use cases include replenishment and order picking where cartons roll smoothly from the loading side toward the pick face, reducing manual handling and improving throughput. Operators should ensure compatibility with their pallet rack beams and channel dimensions, and verify that the track length and width align with existing infrastructure. This part is listed as non-returnable or exchange-restricted per the manufacturer’s policy, so confirm need and quote details prior to purchasing. For accurate shipping costs, item quotation is advised.
Features:
- Width: 6 in
- Depth: 120 in
- Height: 3 in
- Weight: 24 lbs
- Weight Capacity: 50 lbs
- Shelf Capacity: 500 lbs
- Material: Steel, Color: Black
- Width:
- 6 in
- Depth:
- 120 in
- Height:
- 3 in
- Weight:
- 24 lbs
- Weight Capacity:
- 50 lbs
- Assembly Required:
- No
- Type:
- Carton Flow Lane
- Shelf Capacity:
- 500 lbs
- Color:
- Black
- Track Configuration:
- Roller
- Material:
- Steel
- Description:
- Pallet Rack Carton Flow
- Manufacturers Part Number:
- 99S5R62X120
- Brand:
- Unex
- Package Size:
- Each
