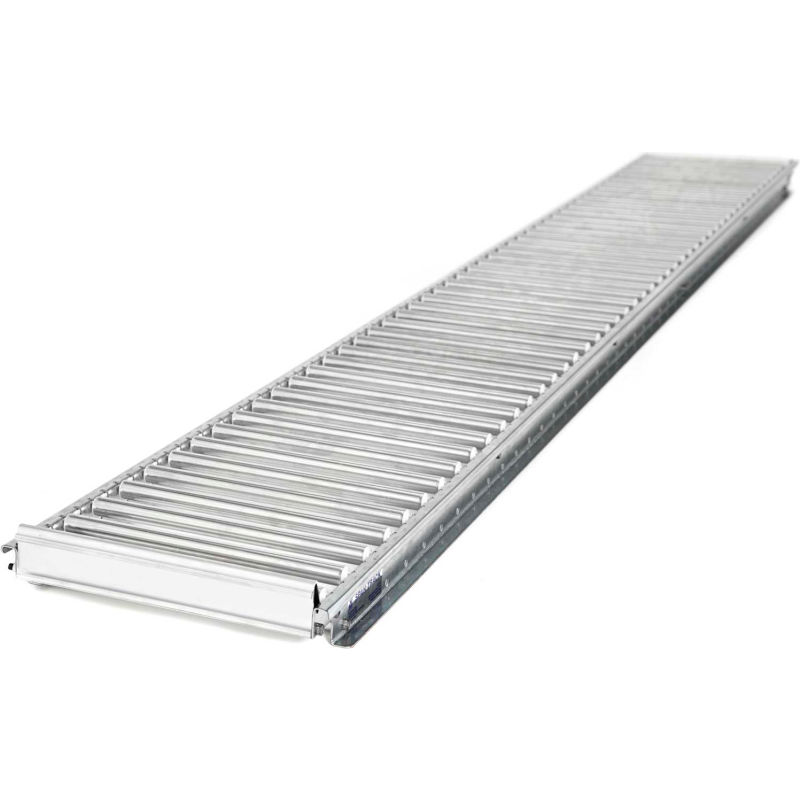

The UNEX 99S5R152X96 Span Track Drop-In Carton Flow Lane is a gravity-driven conveyor solution designed for carton flow within pallet rack systems. This track applies a roller-based, gravity-fed design to help move boxed items along a 96-inch by 15-inch footprint, with a compact 3-inch height that minimizes headroom requirements in rack corridors. Constructed from steel with a black finish, the system is built to operate without additional power, relying on the weight of the load and the incline of the lane to transport cartons or small palletized items from one station to the next. The setup is compatible with standard pallet rack configurations and is described as a universal construction suitable for use with step or structural beams, making it adaptable for varied storage layouts.
Key features include a 50-pound weight capacity per lane and a shelf rating of up to 320 pounds, suggesting the system is suitable for moderate-weight shipments and dense carton flow in industrial settings. The 15-inch width and 96-inch length define a long, narrow channel that can be integrated into longer flow lanes or used to extend existing carton flow lines, while the roller track configuration enhances item movement and reduces friction during loading and unloading. Assembly is not required, which can simplify installation in compatible rack structures. This product is sold as an individual unit, with packaging listed as Each, and notes indicate the item is not eligible for return or exchange, so confirming fit and compatibility before purchase is important.
When planning usage, verify that your rack supports universal drop-in track applications and that the lane’s weight and shelf capacities align with your typical carton sizes and weights. Consider the incline and spacing of your system to maintain smooth gravity flow, and account for shipping costs per your quote workflow since this item’s shipping charges may vary. The manufacturer part number is UNEX99S5R152X96, and the product is categorized under material handling as a carton flow lane designed for pallet rack environments.
Features:
- Width: 15 in
- Depth: 96 in
- Height: 3 in
- Weight: 29 lbs
- Weight Capacity: 50 lbs
- Shelf Capacity: 320 lbs
- Track Configuration: Roller
- Width:
- 15 in
- Depth:
- 96 in
- Height:
- 3 in
- Weight:
- 29 lbs
- Weight Capacity:
- 50 lbs
- Assembly Required:
- No
- Type:
- Carton Flow Lane
- Shelf Capacity:
- 320 lbs
- Color:
- Black
- Track Configuration:
- Roller
- Material:
- Steel
- Description:
- Pallet Rack Carton Flow
- Manufacturers Part Number:
- 99S5R62X96
- Brand:
- Unex
- Package Size:
- Each
