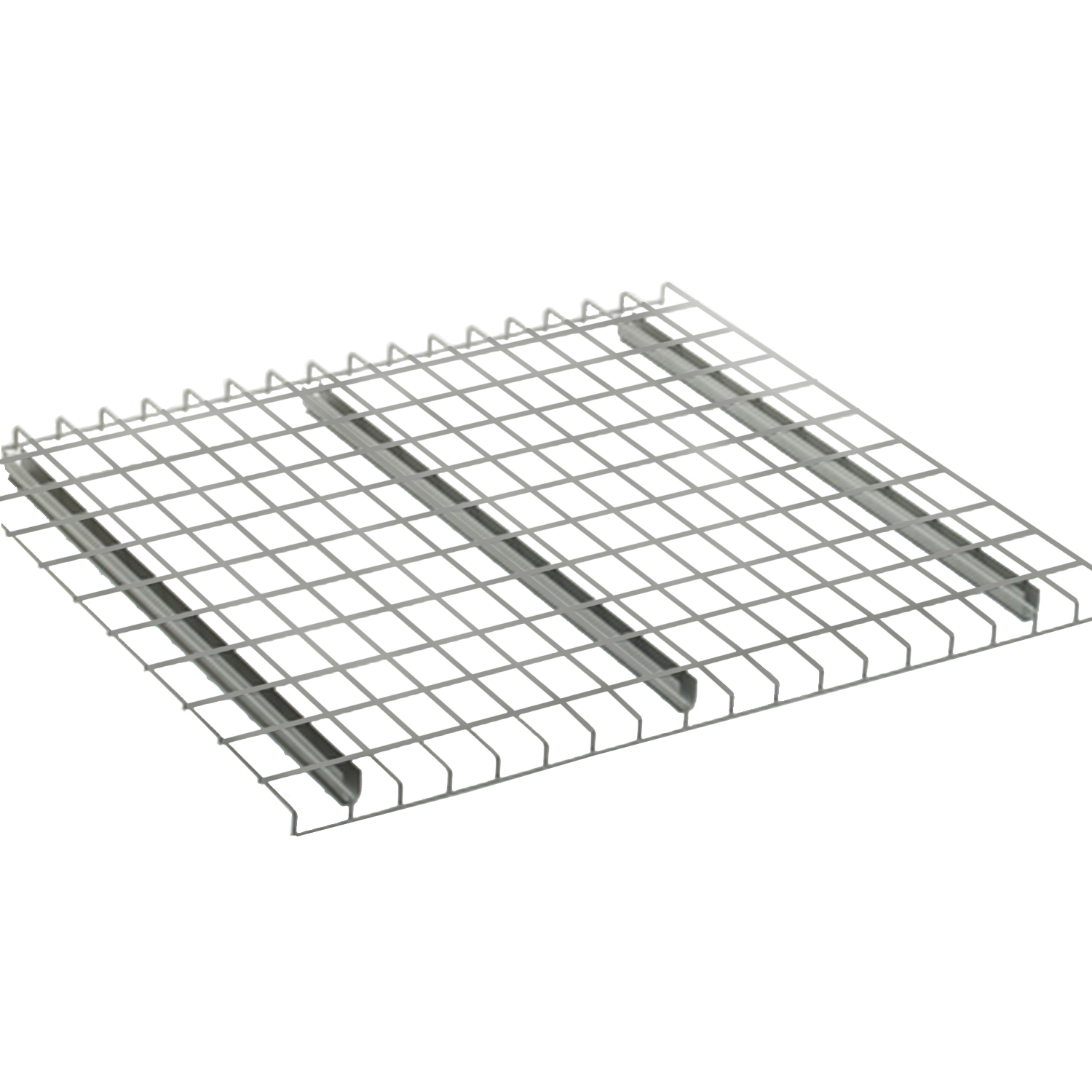

The Worldwide Material Handling 42" x 52" step channel gray water fall wire mesh deck is designed for pallet rack systems to improve safety and efficiency in warehouse storage. This welded wire mesh decking offers an open grid that supports full pallets or assorted items while allowing light to pass through and reducing dust buildup. The design helps meet local fire code considerations and provides a robust alternative to traditional wood decking in pallet racks.

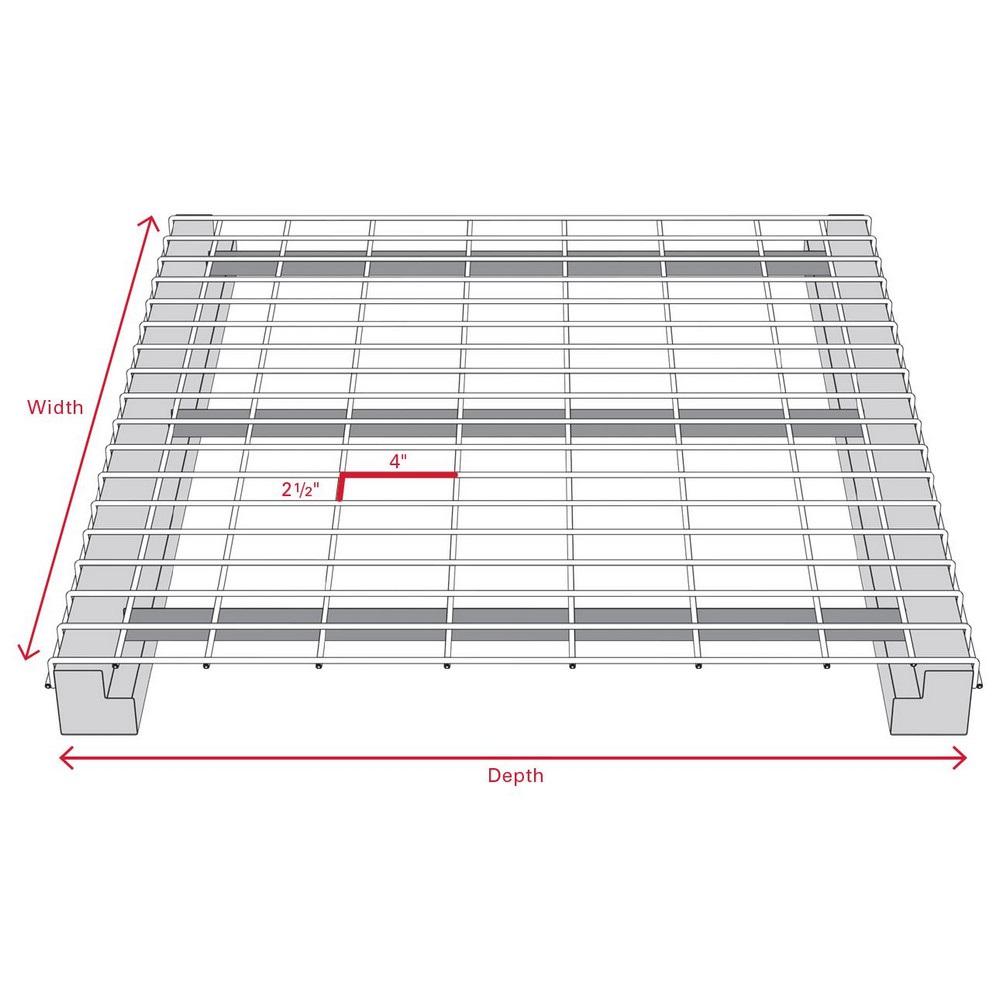

Key construction details include a standard 2.5" x 4" x 6 gauge wire mesh pattern with support channels available in 14 or 16 gauge. The front and rear waterfall are 1.5", contributing to a stable resting surface when dropped into pallet rack beams. The deck is finished with a durable powder coat and is also available with an electrogalvanized finish, enhancing corrosion resistance in appropriate environments. Capacities are based on uniform distributed load (UDL), and the product can be customized to fit varying pallet rack configurations. Optional accessories such as snap-in, hanging, and flue dividers are available to tailor the deck to specific storage needs.
This unit ships as a single deck per package and is designed for simple, tool-free installation by dropping into position on standard pallet rack beams. When selecting this decking, consider your warehouse layout, load distribution, and any required accessories to ensure a proper fit and supported performance for your storage requirements.
Features:
- Standard 2.5" x 4" x 6 ga. wire mesh pattern
- 13/4" front and rear waterfall
- ANSI MH26.2 compliant construction
- Durable powder coat finish
- Electrogalvanized finish available
- 3,500 LBS capacity (UDL)
- Custom designs and sizes available
- Capacity:
- 3,500 LBS
- Package Size:
- Each
