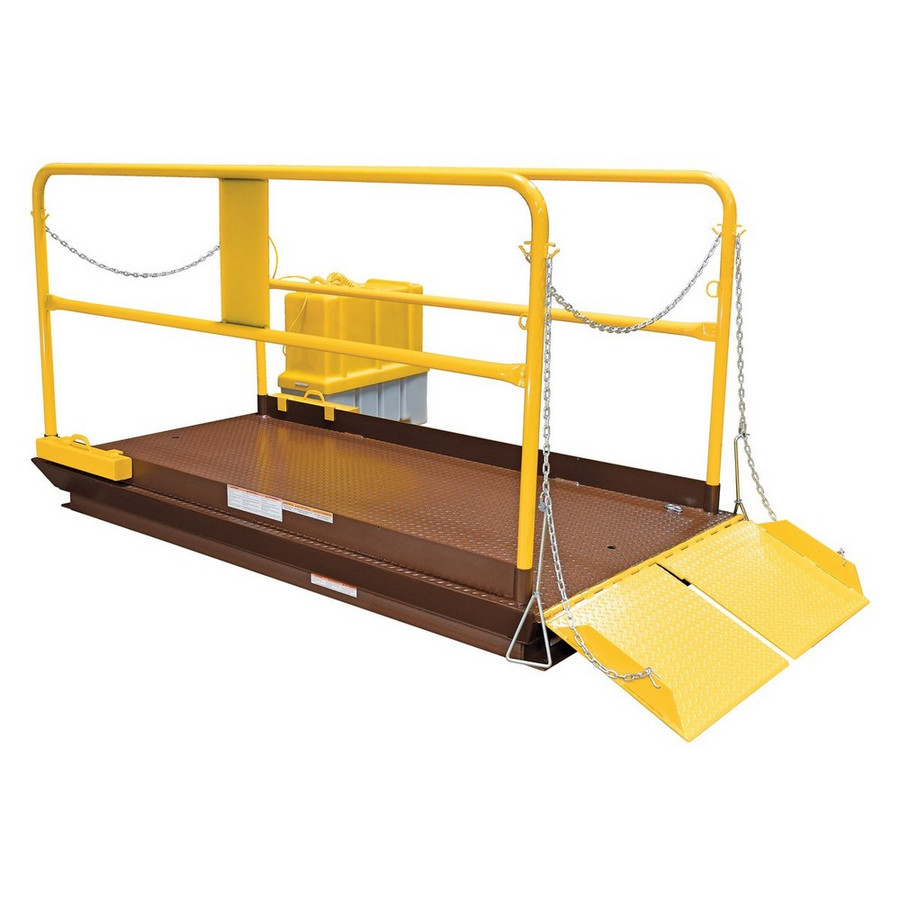

Vestil WL-100-6-810 Steel Premium Truck Scissor Dock Lift provides a practical solution for loading and unloading cargo from semi-trailers where a permanent dock is unavailable. Designed to bridge the gap between dock level and trailer bed, this lift raises and lowers material to align with the trailer floor, helping to improve ergonomics and throughput in yard or temporary dock applications. The unit features a diamond plate deck for a secure, non-slip surface and is equipped with safety-focused components to support reliable operation in demanding environments.
Constructed to handle demanding material handling tasks, the lift uses hydraulic cylinders protected by safety velocity fuses to mitigate risk if a hydraulic line were to fail. An upper travel limit switch automatically cuts power when the platform reaches its maximum height, preventing over-travel, while the pre-wired control box and magnetic starter simplify electrical installation and startup. The platform is surrounded by high-visibility safety yellow removable handrails and fixed toe boards, with beveled toe-guards and electric toe-guards around the perimeter to help prevent slips or trips during operation. The external 6.5 HP, 460V, 3-phase 60 Hz motor can be located up to 8 feet away from the lift, offering flexible routing for power and control wiring.
This model provides a rated capacity of 6,000 lb and an overall frame width of 86 inches, making it suitable for a variety of trailers and material handling workflows. Its design aims to improve loading efficiency in environments without built-in loading docks, and it is delivered as a complete system that can be integrated into existing operations with appropriate electrical and structural considerations. When planning use, ensure compatibility with site electrical provisions and compatible dock heights to maximize the lift’s effectiveness and safety for semi-trailer loading tasks.
Features:
- Designed to service semi-trailers when loading dock is unavailable
- Tread plate surface provides a safe non-slip grip
- Safety velocity fuses protect the hydraulic cylinders
- Upper travel limit switch cuts power at max raised height
- 6,000 lb capacity with a wide 86 in overall frame width
- Uniform Capacity (lb.):
- 6,000
- Overall Frame Width (in.):
- 86
- Package Size:
- Each
