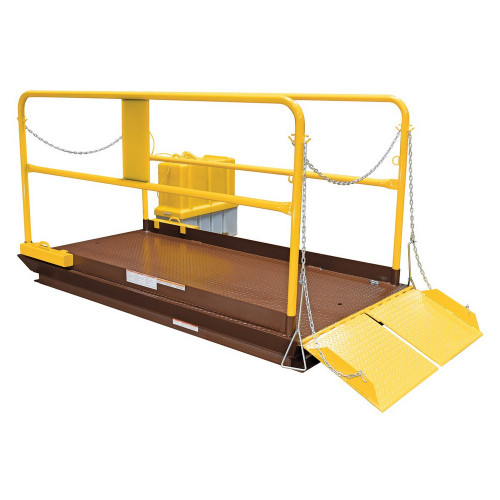

The Vestil WL-100-5-78 is a premium steel truck scissor dock lift designed to bridge semi-trailers when a permanent loading dock is unavailable. It provides a safe, efficient platform for loading and unloading goods by raising and lowering a heavy-duty deck to match trailer floor height, enabling smoother transitions and reducing manual handling. The unit features a diamond plate deck made from heavy-gauge steel to withstand repeated use in industrial environments, and a 5,000 lb capacity that supports a wide range of palletized loads.
Construction details include safety-focused hydraulic components with a safety velocity fuse to guard against line breaks, and an upper travel limit switch that automatically cuts power when the platform reaches its maximum height. The platform is surfaced with a tread plate for enhanced slip resistance and includes high-visibility safety yellow removable handrails with fixed toe boards, beveled toe-guards, and electric toe-guards around the platform perimeter to improve on-site safety. A 6.5 HP, 460V, 3-phase external motor is standard, with the option for the control system to be located up to 8 feet from the lift, connected via a 20-foot coil cord to a pre-wired control box with a magnetic starter and overload relay.
The WL-100-5-78 is sized for practical dock operations with an overall frame width of 62 inches and a load-bearing platform designed to support common warehouse pallet flows. This model is suited for facilities needing a mobile, temporary docking solution that remains robust in demanding environments. When planning installation and use, verify trailer height compatibility, electrical requirements, and proper anchoring for stable operation, while ensuring safe travel of personnel around the lift area.
Features:
- Unique design services semi-trailers when loading dock is unavailable
- Tread plate surface provides a safe non-slip grip
- Safety velocity fuses protect the hydraulic cylinders
- Upper travel limit switch cuts power to unit when max raised height is reached
- Uniform 5,000 lb capacity
- Overall frame width: 62 inches
- Uniform Capacity (lb.):
- 5000
- Overall Frame Width (in.):
- 62
- Package Size:
- Each
