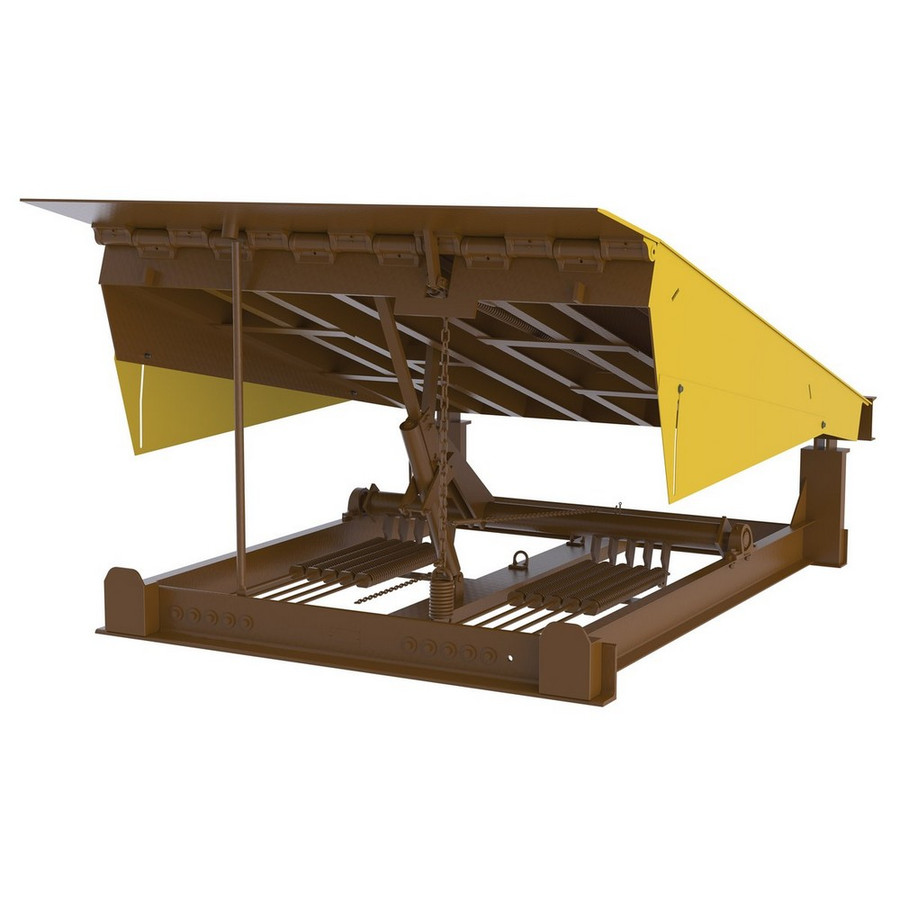

The Vestil RR-710-40 Mechanical Dock Leveler is a pit-mounted solution designed to bridge the gap between a loading dock and trailers, simplifying the process of loading and unloading goods. It uses a spring-operated mechanical pull-chain to raise and lower the deck, allowing operators to position the leveler to the desired trailer height within the unit’s service range. The deck is constructed from heavy-duty diamond plate steel, with a 1/4 inch thick checkered plate surface that provides traction and durability under demanding palletized loads. A 16-inch lip extends the deck to help span the trailer sill, while telescoping side-mounted toe guards cover the opening across the full service range to help reduce pinch points and debris entry during operation. The leveler includes two laminated bumpers for impact absorption and alignment at the dock edge. The system is designed for minimal maintenance and is rated for a uniform capacity of 40,000 pounds, with a service range that accommodates elevations above and below the dock for flexible trailer accommodations.
Features:
- Pit-mounted dock leveler supports easy trailer loading/unloading
- Spring-operated mechanical pull-chain for simple operation
- Telescopic side-mounted toe guards cover opening across full service range
- Uniform 40,000 lb capacity for demanding applications
- Steel checkered plate deck (1/4 inch)
- Complies with CS 202-56, OSHA and ANSI MH14.5
- Uniform Capacity (lb.):
- 40,000
- Steel Checkered Plate Deck (in.):
- 1/4
- Package Size:
- Each
