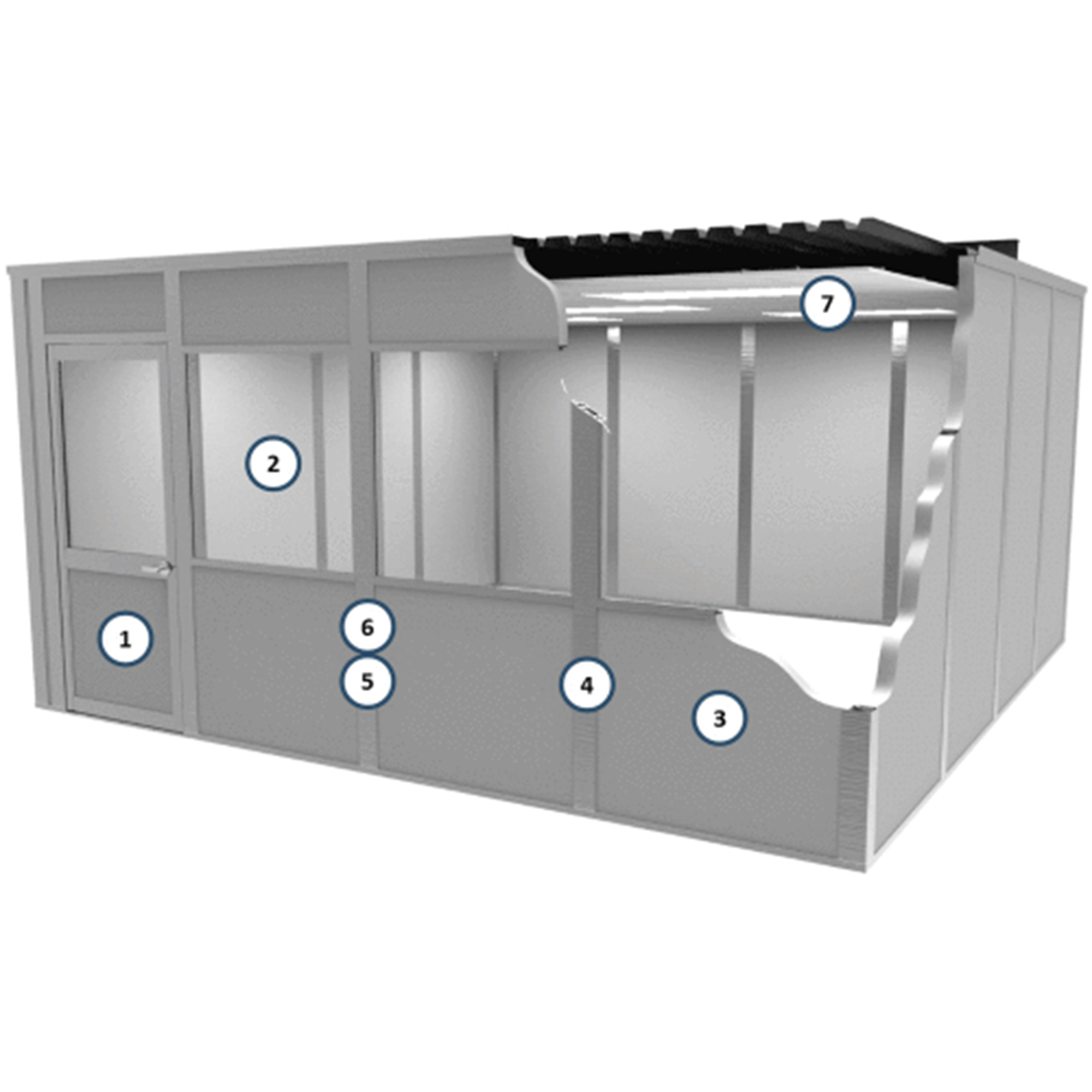

The Porta-King G_DW812400 is an in-plant office solution designed to create a quick, climate-controlled enclosure inside a facility. This modular room arrives as a complete package that includes wall panels, a connecting post, roof deck, acoustical ceiling system, a door, and all necessary hardware to erect a four-wall layout. The unit is specified as a Class A fire-rated assembly with an STC rating of 31, making it suitable for industrial environments where fire safety and sound attenuation are considerations, while maintaining a clean interior and exterior finish.
Construction features include a 1/2" vinyl-finished drywall interior and exterior surface laminated to a solid UL Class 1 expanded polystyrene (EPS) insulating core. This combination provides both a durable, easy-to-clean surface and enhanced sound attenuation, helping to minimize noise transfer in busy plant settings. The panels are offered in white or gray to match facility aesthetics, and the overall configuration results in an 8'2" high structure with a 12' wide by 8' deep footprint, one 3' x 7' door, and integrated electrical provisions with two 115V duplex outlets.
Typical applications include creating offices, break rooms, or control areas within a warehouse or manufacturing floor. The system is pre-engineered for straightforward installation to minimize downtime, and Porta-King provides detailed layout and packing lists with orders to assist on-site assembly. The package is sized for a 4-wall layout with a standard ceiling height of 7'6" and a 100A load center supporting a single-phase, 4-circuit electrical configuration, ensuring basic power needs are addressed within the enclosure.
Features:
- 1/2" vinyl finished drywall interior and exterior surfaces
- UL Class 1 EPS insulating core
- STC 31 sound attenuation for nosier environments

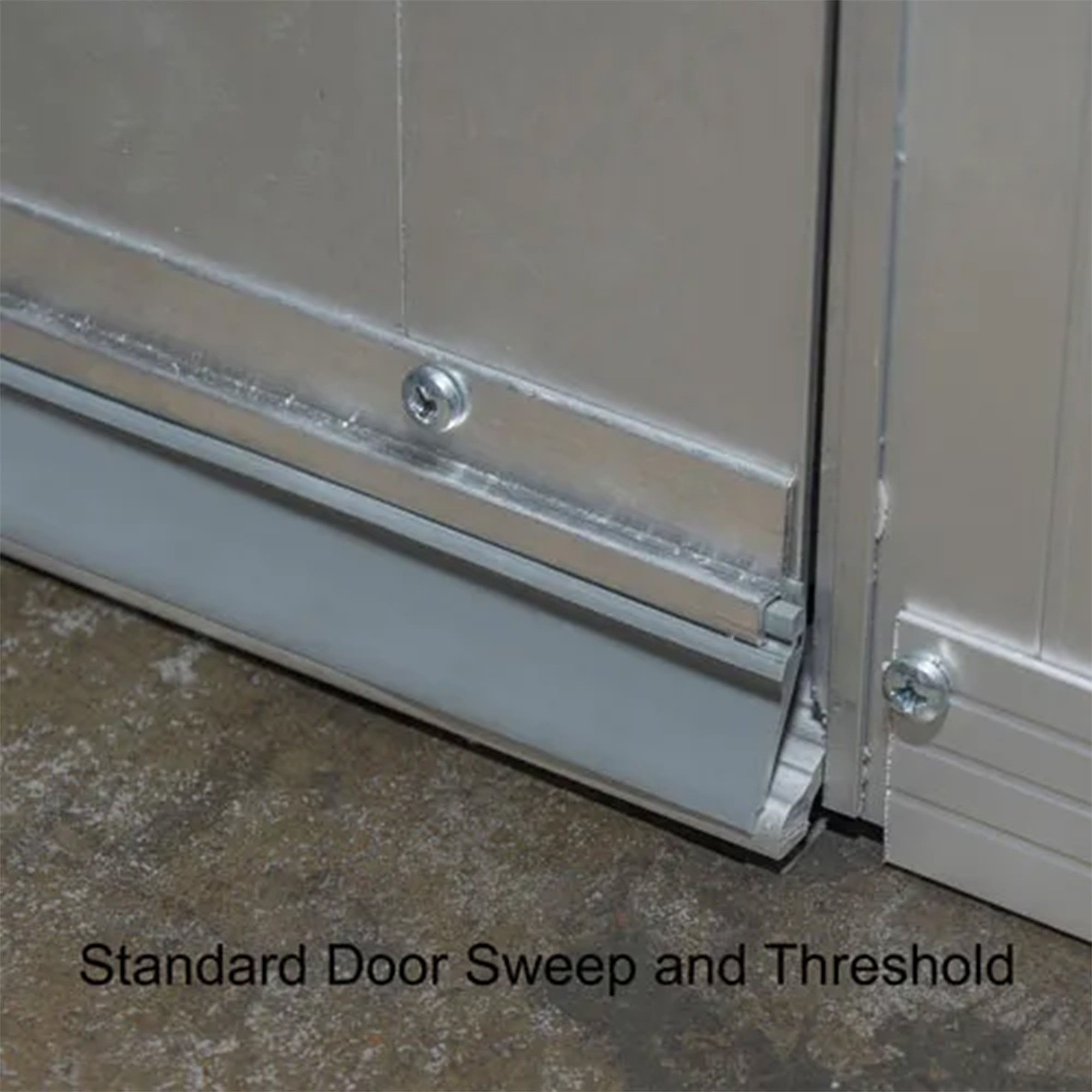

- 4-wall layout with 3'x7' door
- Includes (2) 115V duplex outlets and one light fixture
- Class A fire rating
- White vinyl with gray color-matching option
- Width:
- 12'
- Depth:
- 8'
- Height:
- 8'2"
- Weight:
- 1,775 lbs
- Ceiling Height:
- 7'6"
- Door Size:
- 3'x7'
- Wall Thickness:
- 3"
- Load center:
- 100A, Single Phase, 4-Circuit in
- Color:
- White
- STC Rating:
- 31
- Number Of Doors:
- 1
- Outlets:
- (2) 115V Duplex
- Wall Material:
- Vinyl Covered Drywall Int. & Ext.
- Layout:
- 4 Wall
- Light Fixtures:
- 1
- Fire Rating:
- Class A
- Package Size:
- Each
