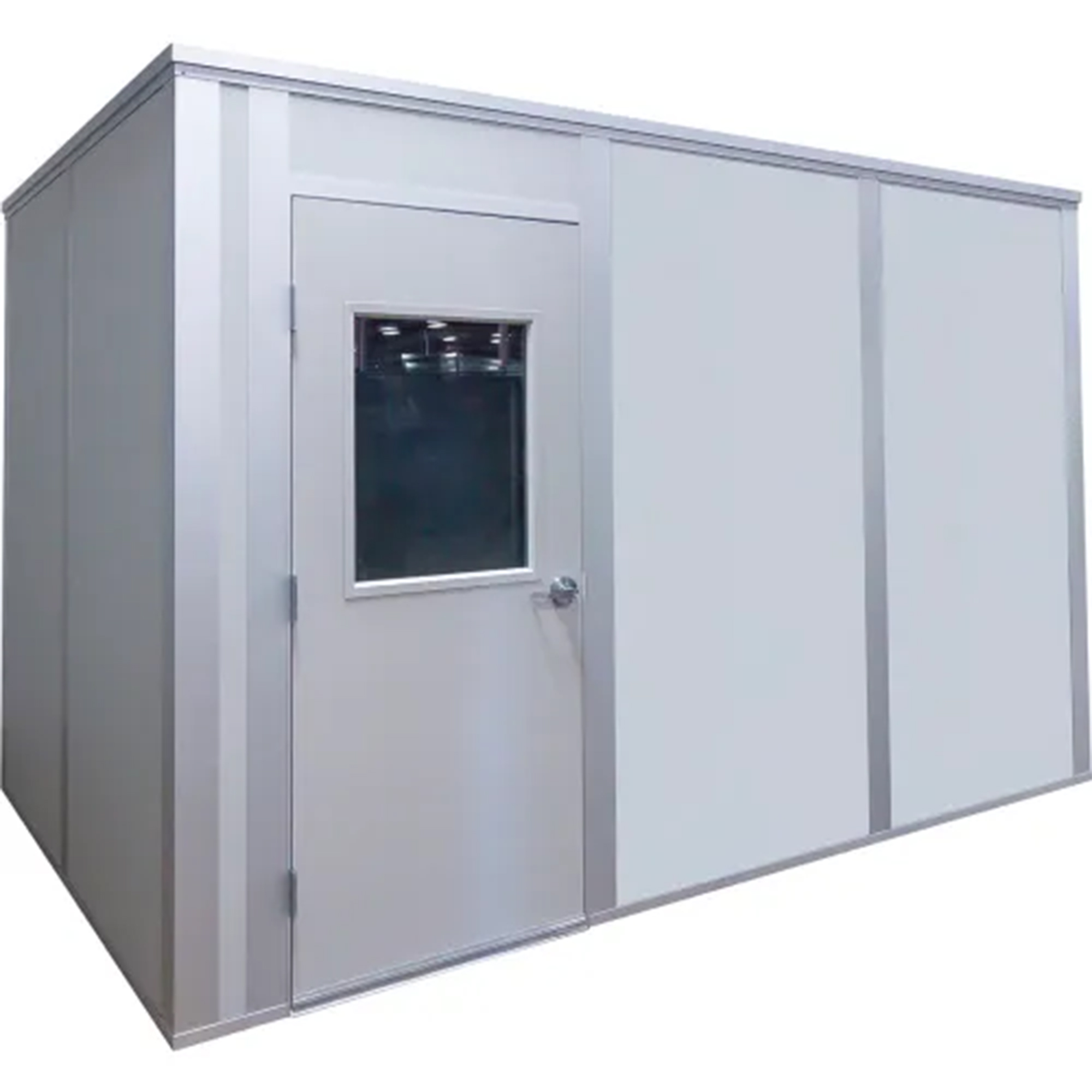

The Porta-King G_DG121240 inplant office is a prefabricated, modular interior room designed to fit inside a larger facility, delivering a climate-controlled, enclosed workspace within industrial environments. This 12 by 12 unit uses a vinyl-covered hardboard interior and exterior surface laminated to a solid UL Class 1 EPS insulating core, providing both structural rigidity and sound attenuation for noisier plant settings. The combination supports a compact, stand-alone office area with typical features such as an interior/exterior wall finish suitable for high-traffic spaces, a 3x7 door, and an 8'2" overall height with a 7'6" ceiling height, making it compatible with standard loading and movement within warehouses or manufacturing floors. The unit is offered in gray or white color matches to blend with existing interiors and equipment layouts.

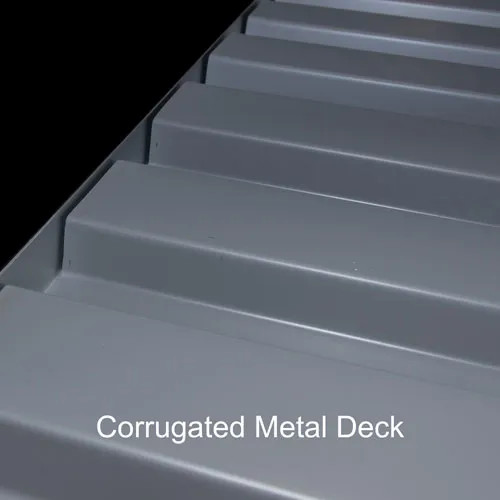

Construction is purpose-built for quick on-site installation, with pre-engineered components and detailed instructions included to facilitate efficient setup. The package covers all wall panels, connecting posts, roof deck, acoustical ceiling system, door, and hardware necessary to construct the specified 4-wall layout, helping to minimize downtime during deployment. Sound attenuation is a noted feature of this panel arrangement, making it suitable for offices, break rooms, or control areas where reduced noise transmission is beneficial. The product carries a Class A fire rating and includes electrical provisions such as four 115V duplex outlets and two light fixtures, reflecting practical readiness for a functional workspace out of the box.
When planning installation, consider the unit’s dimensions (12' W x 12' D x 8'2
Features:
- 1/2" vinyl finished drywall interior and exterior surfaces
- Solid EPS insulating core (UL Class 1)
- STC 31 sound attenuation for nosier environments
- 4-wall inplant office layout, 12' x 12' footprint
- Single 3'x7' door, 4 outlets, 2 light fixtures
- Gray color match option (also available in white)
- Width:
- 12'
- Depth:
- 12'
- Height:
- 8'2"
- Weight:
- 2,125 lbs
- Ceiling Height:
- 7'6"
- Door Size:
- 3'x7'
- Wall Thickness:
- 3"
- Load center:
- 100A, Single Phase, 4-Circuit in
- Color:
- Gray
- STC Rating:
- 31
- Number Of Doors:
- 1
- Outlets:
- (4) 115V Duplex
- Wall Material:
- Vinyl Covered Hardboard Int. & Ext.
- Layout:
- 4 Wall
- Light Fixtures:
- 2
- Fire Rating:
- Class A
- Package Size:
- Each
