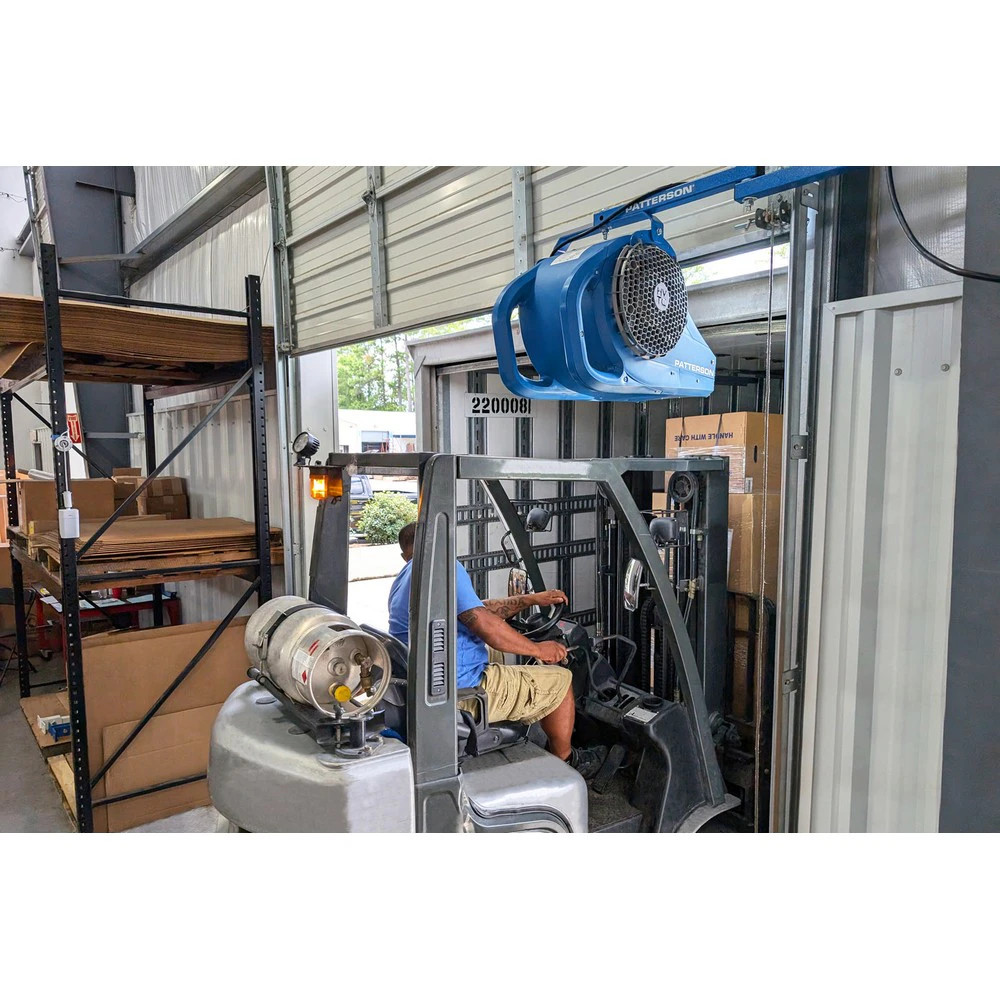

The Patterson FHVTCB-IDL-L-MOUNT loading dock fan is a high-velocity solution designed to purge trailer interiors quickly during manual loading and unloading. Engineered to deliver strong airflow without occupying substantial vertical space, this model mounts at the dock and uses a compact 9.5 x 11 inch blower to channel air efficiently into 53-foot trailers. It supports a continuous duty cycle and operates in typical warehouse environments, with the option to add integrated 15-watt LED dock lights for enhanced visibility at the work point.
Constructed with a high-impact polypropylene fan housing and protected by inlet guards, the unit is designed to withstand the rigors of frequent dock use while maintaining a relatively low sound footprint for a device of its class. The design emphasizes powerful airflow for rapid trailer purge, with performance characteristics such as a 1075 RPM blower and a reported decibel level of 75 dB at 3 feet, helping facilities gauge operational noise in relation to workspace acoustics. The system is available with optional outlet guards and integrated lighting, offering a practical, multi-functional upgrade for crowded loading bays.
When planning deployment, consider its fixed 90° orientation and mounting footprint to ensure compatibility with existing dock configurations. The product data indicates a standard enclosure and continuous-duty operation, which aligns with typical dock-area needs where fans run for extended periods during cycles. Packaging is listed as per-unit, so order quantities should reflect per-site requirements. If lighting is chosen, verify electrical wiring provisions for the 15W LED option and the corresponding control arrangement. This model retains the manufacturer part number PATFHVTCB-IDL-L-MOUNT for precise ordering and service references.
Features:
- Purge 53' Truck Trailer in Minutes
- Dominates Airflow, Not Your Budget
- More CFM Than Other Dock Fans
- Compact Design for Clearance
- Integrated LED Dock Lights Optional (15W)
- High Impact Polypropylene Housing
- Continuous Duty with 104°F Ambient Tolerance
- Wheel (Blower):
- 9.5 inches x 11 inches
- Fan Housing:
- High Impact Polypropylene
- Inlet Guards:
- .5 inches Opening
- Outlet Guards (optional):
- .5 inches Opening
- RPM:
- 1075
- Decibels:
- 75 @ 3'
- Enclosure:
- ODP Standard
- Frame:
- 48
- Ambient Temperature:
- 104°F
- Duty Cycle:
- Continuous
- Integrated LED Dock Lights:
- 15W (optional)
- Package Size:
- Each
