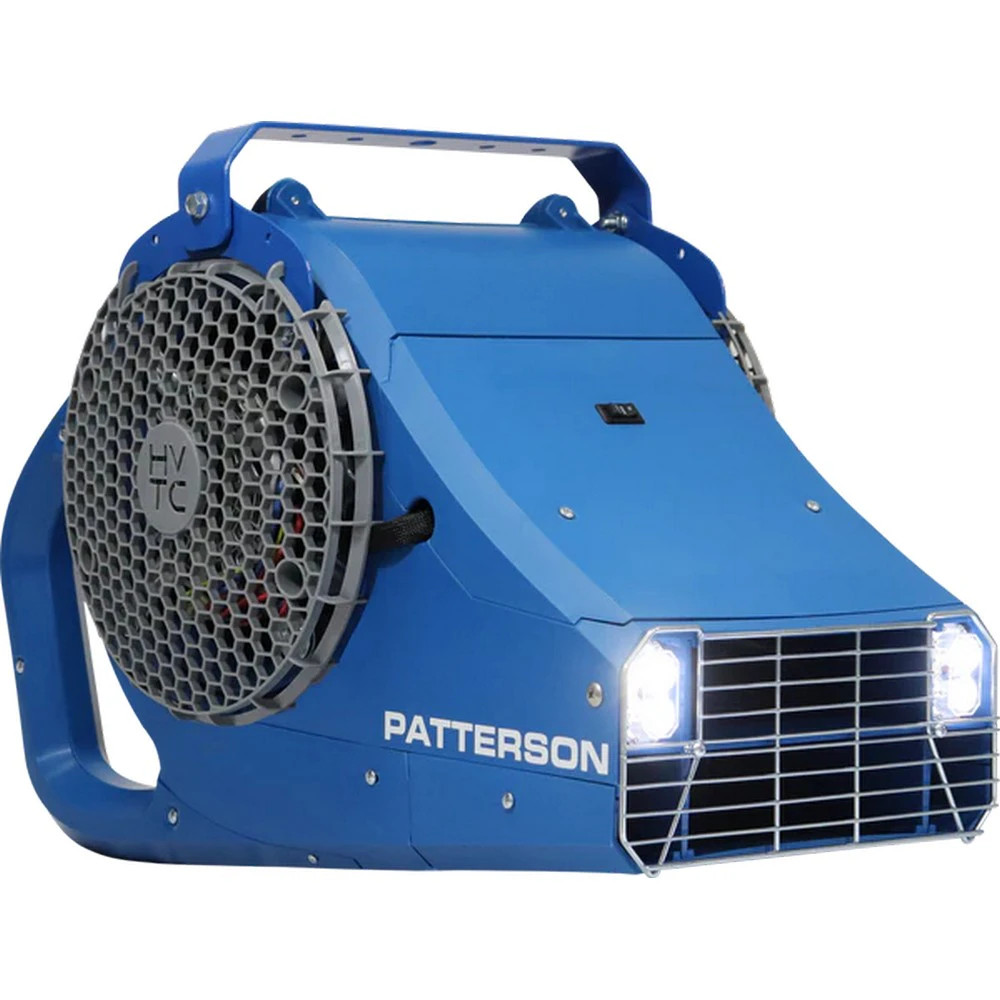

The Patterson FHVTCB-IDL-SWITCH is a high-velocity dock fan designed to purge a 53-foot trailer quickly during loading and unloading. It combines strong airflow with compact dimensions to fit tight dock-space profiles while delivering substantial cooling power for manual trailer handling. The unit is configured for 208-230V operation and offers optional integrated 15-watt LED dock lighting, plus a four-way switch on the power cord to simplify control of both fan and light functions.
Construction details indicate a blower wheel with a 9.5 x 11 inch footprint housed in a high-impact polypropylene enclosure, with inlet and optional outlet guards available at a .5 inch opening. The fan runs at 1075 RPM and is specified for continuous duty in ambient conditions up to 104°F, aligning with typical dock-side usage. An industry-standard enclosure and durable materials support steady operation in demanding environments, while the low-noise rating (75 dB at 3 feet) helps minimize disruption during near-dock activity.
Practically, this model emphasizes efficient airflow—pushing air through the trailer bulkhead to purge it in minutes—while maintaining a compact profile that preserves clearance near the door. The 4-way power/light switch and LED lighting option address convenience and visibility for dock personnel. If selecting, verify the installation space to ensure the unit’s mounting footprint and guards meet your trailer and dock configuration, and confirm power availability for 208–230V operation and any lighting integration requirements.
Features:
- Purge 53' Truck Trailer in Minutes
- Dominates Airflow, Not Your Budget
- More CFM Than Other Dock Fans
- Compact Yoke Mount Design for Clearance
- Integrated LED Dock Lights (15W) Optional
- High Impact Polypropylene Housing
- Continuous Duty with 104°F Ambient Rating
- Wheel (Blower):
- 9.5 inches x 11 inches
- Fan Housing:
- High Impact Polypropylene
- Inlet Guards:
- .5 inches Opening
- Outlet Guards (optional):
- .5 inches Opening
- RPM:
- 1075
- Decibels:
- 75 @ 3'
- Enclosure:
- ODP Standard
- Frame:
- 48
- Ambient Temperature:
- 104°F
- Duty Cycle:
- Continuous
- Integrated LED Dock Lights:
- 15W (optional)
- Package Size:
- Each
