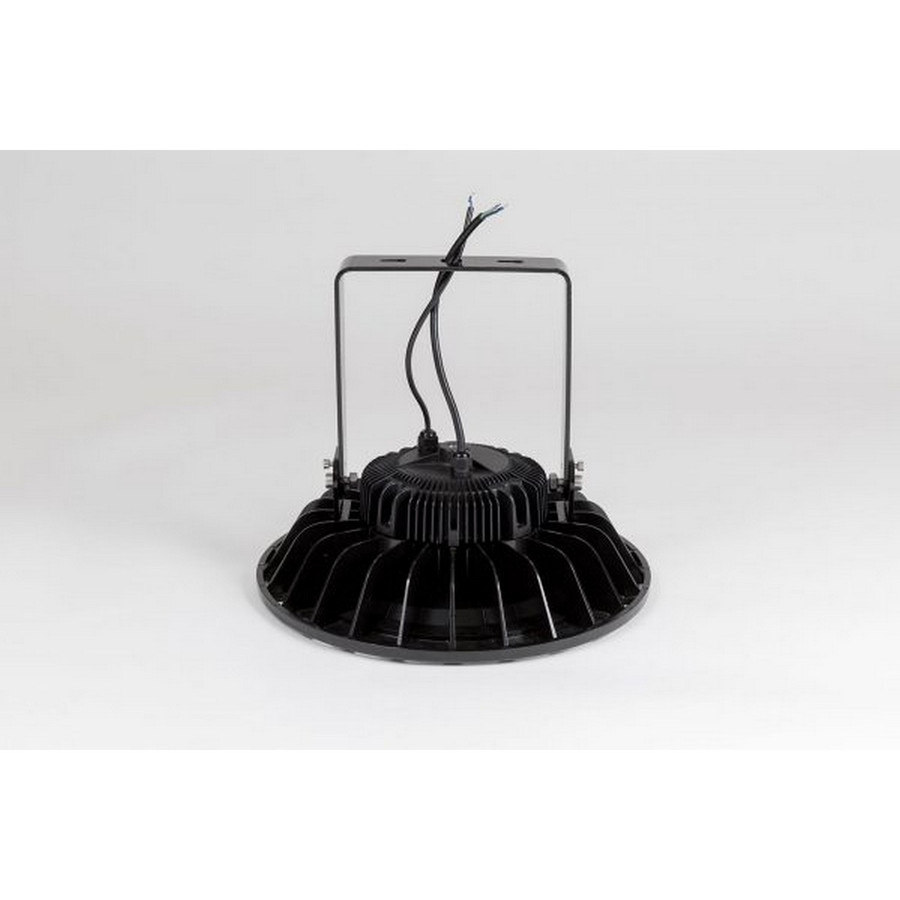

The Litetronics HB125B150DLHV is a 125-watt LED high bay designed to replace traditional HID and fluorescent lighting in high-ceiling spaces. With a compact 16-inch round form and an IP66 rating, this fixture is built to withstand indoor and outdoor environments and resist dust and water exposure appropriate to demanding industrial settings. It delivers up to 15,000 lumens and a 5000K color temperature, aiming to provide bright, neutral-white illumination across large work areas such as warehouses, garages, gymnasiums, transit facilities, and industrial spaces. The fixture is compatible with 120–277V electrical supply and supports 1–10V dimming, enabling adjustable output to match different tasks and occupancy patterns. Its 84 CRI helps ensure color differentiation for safer and more accurate work, particularly in environments where precise visual detail matters.
Construction and distinguishing features include a frosted lens for glare control and a round housing that integrates a rugged design suitable for rigorous use. The unit is listed as UL and is RoHS compliant, with DLC Listed as well, indicating alignment with common energy-efficiency and performance standards used in commercial projects. The HB125B150DLHV weighs approximately 16 pounds and is designed for straightforward installation with a snap-lock hook mounting approach, supporting flexible placement in high bays and similar installations. The fixture provides a long service life, with a claimed life rating of over 100,000 hours and a 10-year warranty, offering considerable maintenance savings over time.
When planning installations, consider the 125W LED option as a drop-in upgrade from legacy HID or fluorescent systems in large spaces that require consistent, wide-area illumination. The fixture’s wide operating temperature range and IP66 rating support reliable performance in varying conditions, but exact performance will depend on mounting height, spacing, and room geometry. It is packaged as a single unit, ready for on-site mounting with standard electrical connections, and should be installed in accordance with local codes and the manufacturer’s guidelines.
Features:
- 125W LED high bay with 15000 lumens
- 5000K cool white color temperature
- 120-277V input voltage
- 1-10V dimming
- IP66 rated; suitable for wet locations
- UL Listed; DLC Listed
- Frosted glass lens; black finish
- Package Size:
- Each
- Package Includes:
- 1/Each
- Wattage:
- 125
- Lumens:
- 15000 Lumens
- Lumens Per Watt:
- 120
- Fluorescent Equal:
- T8 4 lamp, T8 6 lamp, T5 4 lamp
- HID Equal:
- 400 Watt
- Input Voltage:
- 120-277V
- Color Temp:
- 5000K
- CRI:
- 84
- Dimmable:
- 0-10V Dimming
- UL Listed:
- Yes
- DLC Listed:
- Yes
- DLC Premium Listed:
- No
- Wet Location:
- Yes
- Damp Location:
- Yes
- Hazardous Location:
- No
- Certifications:
- RoHS
- Color Finish:
- Black
- Lens Type:
- Frosted Glass
- Mounting Type:
- Snap lock hook
- Shape:
- Round
- Motion Sensor Included:
- No
- Emergency Battery Included:
- No
- Operating Temperature Range:
- -20°F - 113°F
- Life Rating L70:
- >100,000 Hours
- Warranty:
- 10 Years
- IP Rating:
- IP66
