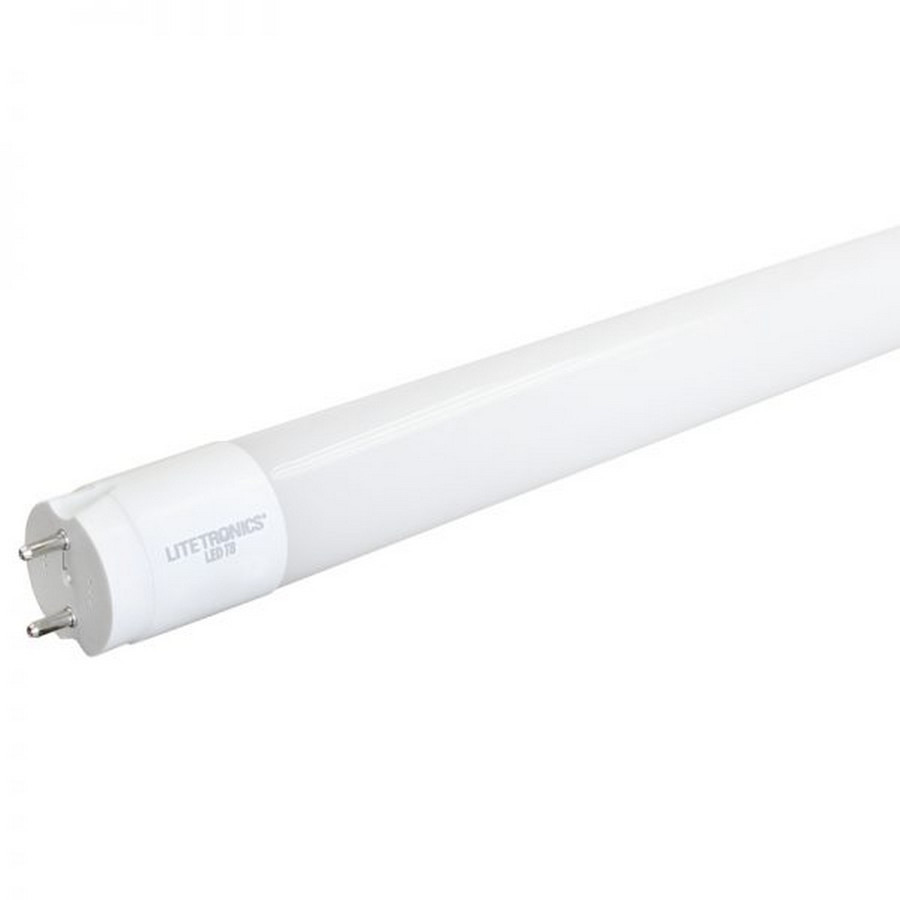

The Litetronics LT14T84835B2 is a 14-watt LED T8 tube designed for ballast-bypass (direct-wire) operation, delivering approximately 1800 lumens at 3500K with a high color rendering in a 4-foot layout. This model uses a double-ended ballast bypass configuration, integrating the driver within the end caps and providing a single, continuous light source from one end to the other. With a 120–277V input, it is intended for easy installation in appropriate fluorescent fixtures that support T8 form factors while simplifying wiring by removing the ballast from the circuit. The product carries UL recognition in related safety listings and adheres to DLC standards that help with utility program eligibility, along with RoHS compliance for restricted substances. The design emphasizes a compact thermal path and a broad 330-degree beam pattern to promote uniform illumination in various fixture styles.
Key features include a 50,000-hour L70 rated life and a five-year warranty, reflecting a long-term maintenance perspective for institutions and industrial environments. The color temperature of 3500K provides a neutral, white-well lighting appearance suitable for settings such as restaurants, retail, schools, hospitals, warehousing, factories, and allied fixture types like strip lights, wraps, and cove lighting. The unit is non-dimmable and ships as a single lamp per package, with a standard bulb-shaped T8 form factor that fits compatible tombstone layouts in bypass installations. While bypass wiring reduces ballast complexity and potential failure points, ensure the existing fixture supports direct-wire operation and that any local electrical codes are followed during installation.
In terms of compatibility and practical handling, verify that the fixture is intended for ballast bypass TLEDs and that the installation configuration meets safety and electrical requirements. This model is not designed for wet locations and is specified for indoor use. With a robust warranty and a DLC-listed profile, it is positioned to help facilities managers streamline lighting upgrades while maintaining consistent lumen output and color across replacement cycles.
Features:
- Wattage: 14W with 1800 lumens
- Color Temperature: 3500K
- Voltage: 120-277V
- Bypass double end configuration
- UL Listed, RoHS compliant
- Not dimmable; Long life (L70 50,000 hours)
- Warranty: 5 years
- Package Size:
- Each
- Package Includes:
- 1/Each
- Wattage:
- 14
- Lumens:
- 1800 Lumens
- Lumens Per Watt:
- 128.571428571429
- Input Voltage:
- 120-277V
- Color Temp:
- 3500K
- CRI:
- 83
- Dimmable:
- No
- UL Listed:
- Yes
- ETL Listed:
- No
- DLC Listed:
- Yes
- DLC Premium Listed:
- No
- Wet Location:
- No
- Damp Location:
- No
- Hazardous Location:
- No
- Certifications:
- RoHS
- Mounting Type:
- Bulb
- Shape:
- T8
- Motion Sensor Included:
- No
- Emergency Battery Included:
- No
- Operating Temperature Range:
- -4° to 113°F
- Life Rating L70:
- 50,000 Hours
- Warranty:
- 5 Years
