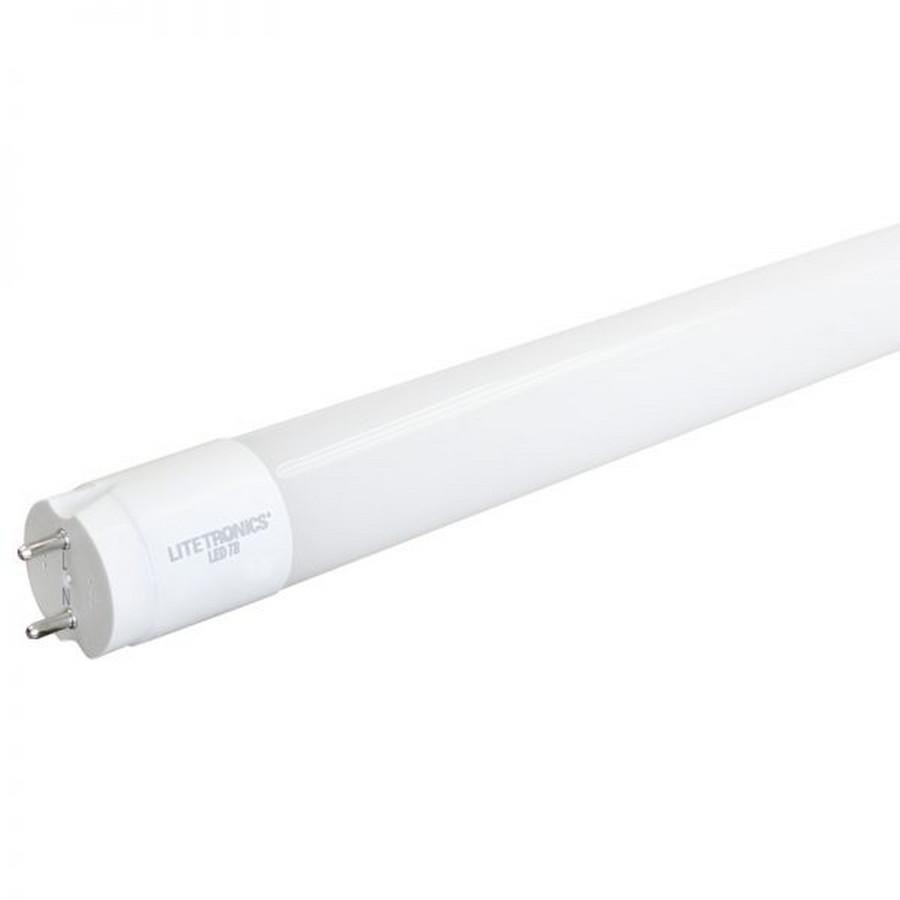

Single ended Ballast Bypass TLED Saves Energy and Simplifies Your Wiring at the Same Time.
The Litetronics 2 and 4 single end ballast bypass LED lamps offer the same exceptional 330 degree beam angle characteristic of our newest generation of TLED products. Ideally suited to reduce wire bulk in tight packaging situations, they are fused to protect against fire or overload. The drivers are integrated within the end cap, providing both strong thermal performance and seamless light from one end of the tube to the other. Designed to meet UL specifications 1598 and 1598B, the Litetronics single end bypass TLEDs protect from any shock that could occur when touching both ends. Whats more they offer an lpw rating of over 120, and the same 50,000 hour average rated life and 5 year warranty as the other members of our TLED family.
Save with The Safety Source
At The Safety Source, we keep our prices low without compromising the quality our customers expect from us. Place your order through our secure website with confidence. If you would like assistance with your order, please call us at 1-866-688-7233 or message us online now. Get the best deal with The Safety Source.
Product Features:
- 330 degree beam angle
- 5 year warranty and 50,000 hour rated life
- Up to 120 LPW
- Fits in existing linear fluorescent fixtures
- Suitable for enclosed fixtures
- Frosted glass for increased light diffusion
- Fused for fire and overload protection
- DLC approved
Applications:
- Restaurants
- Retail
- Schools
- Hospitals
- Warehouse
- Factories
- Strip Light Fixtures
- Wraps
- Cove Lighting
Downloads:
Product Specifications:
| Package Size | Each |
|---|---|
| Package Includes | 1/Each |
| Wattage | 9 |
| Lumens | 1150 Lumens |
| Lumens Per Watt | 127.777777777778 |
| Input Voltage | 120-277V |
| Color Temp | 3500K |
| CRI | 83 |
| Dimmable | No |
| UL Listed | Yes |
| ETL Listed | No |
| DLC Listed | Yes |
| DLC Premium Listed | No |
| Wet Location | No |
| Damp Location | No |
| Hazardous Location | No |
| Certifications | RoHS |
| Mounting Type | Bulb |
| Shape | T8 |
| Motion Sensor Included | No |
| Emergency Battery Included | No |
| Operating Temperature Range | -4° to 113°F |
| Life Rating L70 | 50,000 Hours |
| Warranty | 5 Years |
