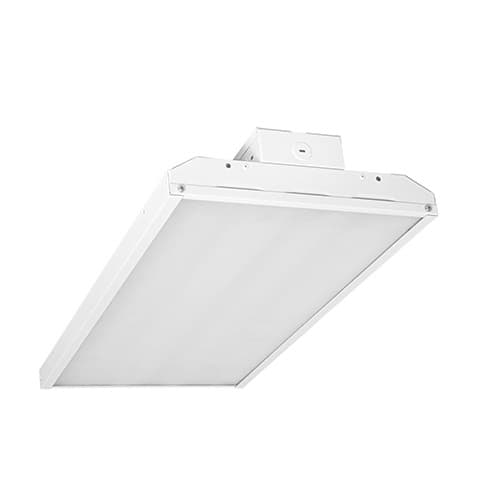

TCP HB21000150LS1 210W 1x2 LED Linear High Bay w/ Sensor, 600W HID Retrofit, Dim, 120V-277V, 5000K

The TCP HB21000150LS1 is a high-performance linear LED high bay fixture designed for large indoor spaces with high ceilings. This 210W unit delivers the light output needed to replace traditional 250W or 400W HID configurations while offering modern efficiency and control options. The fixture is specified as dimmable and operates over a wide voltage range from 120V to 277V, making it adaptable to various electrical systems and reducing the need for multiple part variants. Its 5000K color temperature provides a neutral, daylight-like appearance suitable for task-oriented environments, and the expected 27,500 lumens of output helps illuminate expansive areas with a wide beam profile.

Construction features include a post-painted steel frame with rounded edge corners and no scalloping, assembled with pop rivets to create a clean, durable housing. The unit is rated IP65, indicating protection against dust and water jets from any direction, which supports use in potentially damp or dusty installations. The fixture comes pre-equipped with practical mounting and installation hardware: two hangers, a 5 ft. jack chain, a hub mount kit for .75 inch conduit or stem mounts, and a 6 ft. pre-wired cord, facilitating quick installation in a typical facility setting. The design also emphasizes a wide beam spread achieved through an angled LED arrangement, contributing to a clean light distribution with reduced glare.

Applications for this TCP LED high bay include warehouses, manufacturing floors, distribution centers, and other industrial spaces where consistent, high-output lighting is required. The product is offered in a few selectable options, including the possibility of battery backup and motion sensor integrations for enhanced control and reliability. Compatibility considerations include the hardwired connection and the included mounting hardware, with dimensions of 23.8 inches long, 3.8 inches wide, and 17.5 inches high, and a weight around 10 pounds. The fixture is DLC Premium certified, which may be relevant for project-specific rebates and procurement programs. Warranty coverage is listed as 5 years, aligning with typical industry expectations for this class of luminaire.

Features:

• 210W LED high bay for 600W HID retrofit
• 27500 lm output with 5000K color temperature
• Dimmable with line dimming; optional battery backup or motion sensor available
• IP65 rated; rugged steel frame with rounded edge corners
• Includes: 2 hangers, 5 ft. jack chains, hub mount kit for .75 in conduit/stem, 6 ft. pre-wired cord
• Dimensions: 23.8 in L x 3.8 in W x 17.5 in H
• 120V-277V, 210W, DLC Premium
