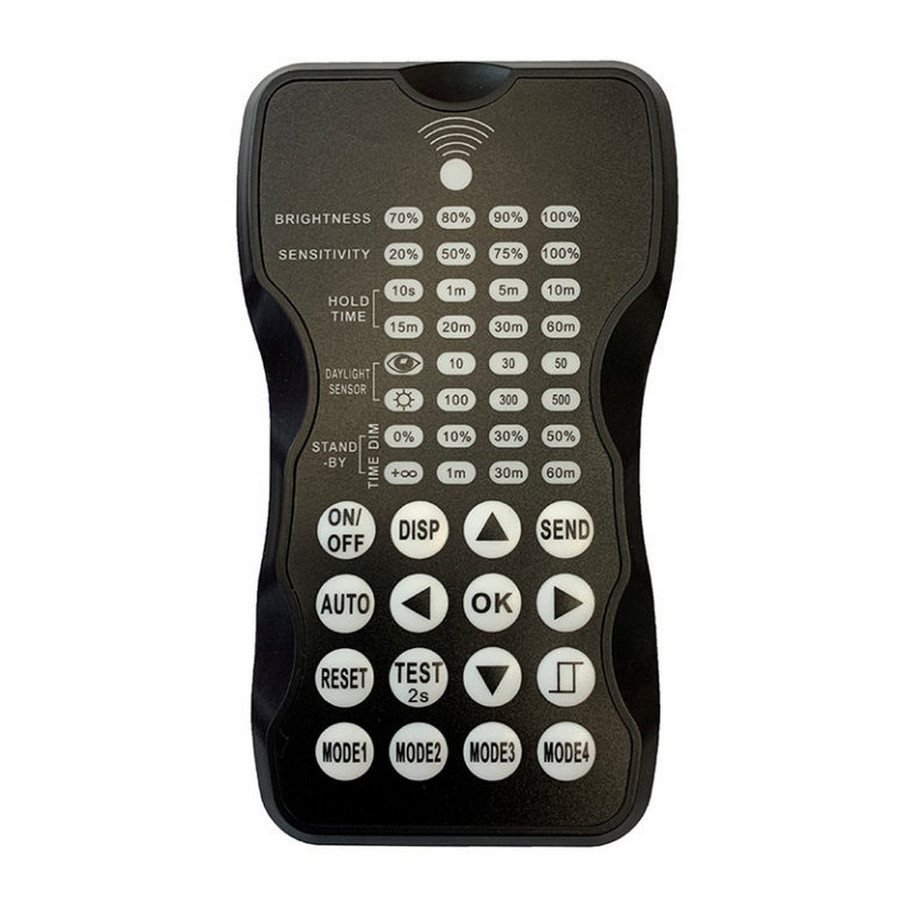

Litetronics SCR053 Remote Control For Pir & Microwave Sensors

The Litetronics SCR053 remote control is a handheld device designed for fine-tuning lighting and sensor behavior from ground level after installation. It provides a practical way to adjust how connected lighting responds to occupancy and available daylight, helping facilities optimize energy use without accessing each fixture directly.

From the unit, you can set the brightness level during occupancy, adjust the sensing sensitivity, and configure the hold time to determine how long the area remains lit after movement ceases. Daylight harvesting settings let you specify the natural light threshold that will influence output, while stand-by dim/time controls determine the low-light level and duration after the hold period ends. The controller supports pre-programming up to four distinct modes, which can be saved and transferred between fixtures for consistent behavior across a lighting system.

Due to its purpose and typical use with PIR and microwave sensor-enabled fixtures, this remote is most appropriate for compatible LED high bay installations that operate within 32°F to 122°F (0°C to 50°C). It uses two AAA 1.5V batteries and is packaged as an individual unit. When planning deployment, verify compatibility with your specific sensor-equipped luminaires and consider how the four programmable modes can streamline consistent occupancy-based lighting across multiple fixtures.

Features:

• Brightness – Set the output level (in %) during occupancy
• Sensitivity – Adjust occupancy sensing sensitivity
• Hold time – Define how long the sensor holds after vacancy
• Daylight harvesting – Threshold for natural light assessment
• Stand-by dim/time – Set light level and duration after hold time
• Pre-program 4 modes – Save and transfer modes across fixtures
