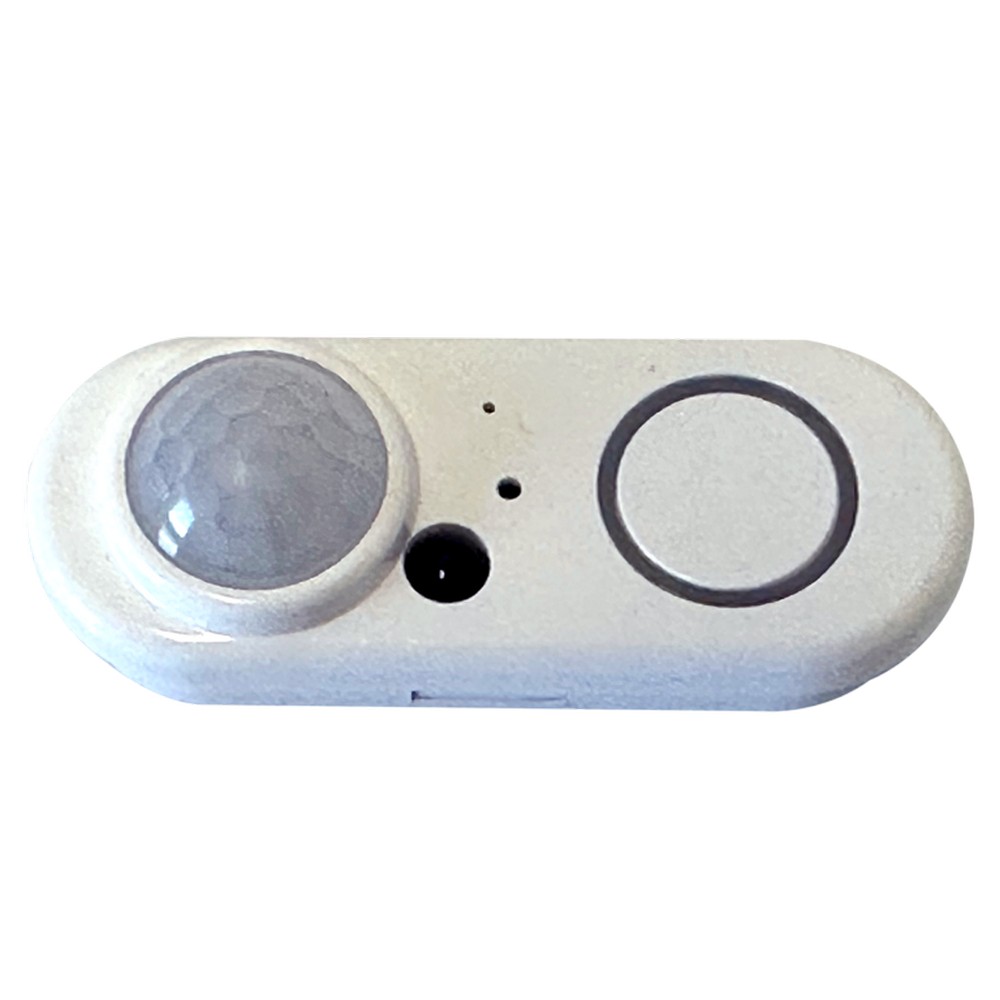

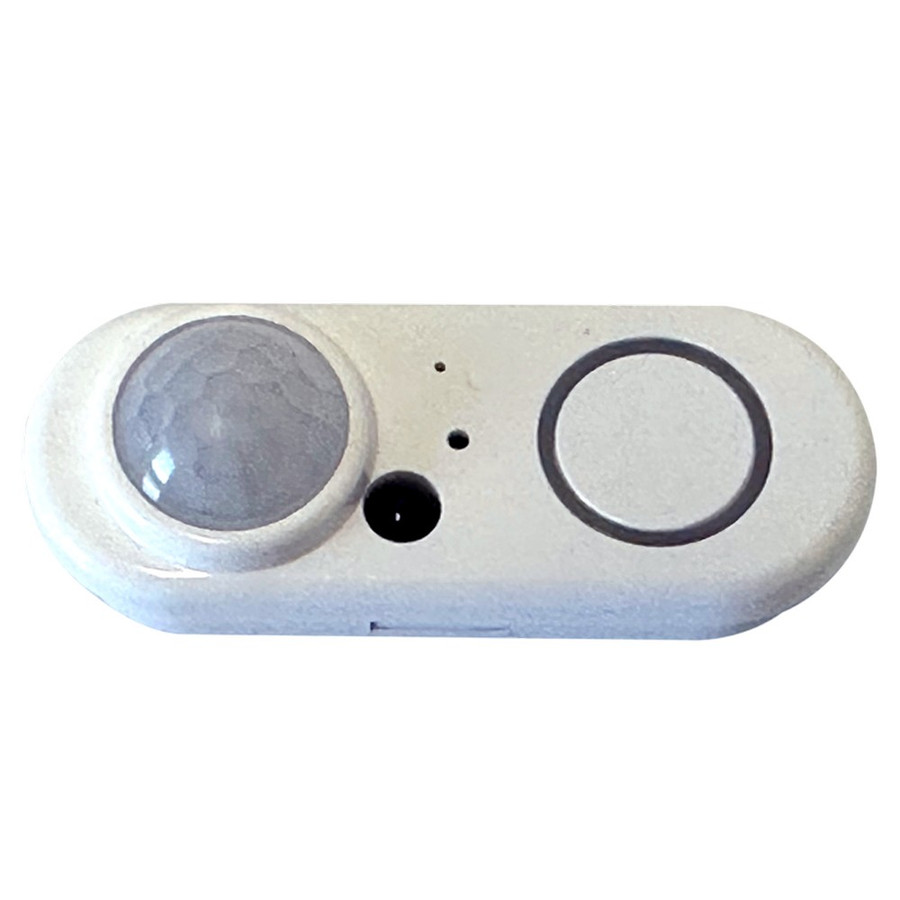

The Litetronics SC010 is a pluggable Bluetooth-enabled PIR sensor designed for integration with select LED panels to support occupancy sensing and daylight harvesting. Its compact, low-profile linear form minimizes height above the luminaire, helping preserve fixture aesthetics while adding smart lighting control capabilities. With integrated Bluetooth connectivity, the SC010 allows configuration and adjustments to be made remotely, enabling convenient setup without direct access to the sensor itself.
This sensor is capable of detecting motion over a coverage area up to 16 feet and supports mounting heights up to 15 feet, making it suitable for many overhead lighting applications in commercial or industrial spaces. The SC010 operates across a wide temperature range, from -22°F to 131°F (-30°C to 55°C), which helps ensure reliable performance in varying climates and environments. By incorporating daylight harvesting, the sensor can help reduce energy use by dimming or turning off lighting when ambient daylight is sufficient, while occupancy sensing can ensure lights are energized only when spaces are in use. These features can contribute to energy efficiency and reduced operating costs when deployed with compatible fixtures.
For installation and operation, the device is packaged as an individual unit (Package Size: Each) and relies on compatible fixtures to enable its smart sensing functions. When evaluating suitability, confirm that your LED panel is among the fixtures supported by Litetronics for the SC010 and verify that remote configuration aligns with your facility’s control strategy and BT-enabled devices. The item is listed with Bluetooth connectivity, underscoring the need for a compatible device or app to adjust settings remotely and maximize the benefits of occupancy sensing and daylight harvesting.
Features:
- Plug-In footprint for easy installation
- Detection coverage area: 16 ft
- 15 ft mounting height
- Temperature range: -22°F to 131°F (-30°C to 55°C)
- Integrated Bluetooth Connectivity
- Daylight Harvesting capable
- Occupancy Sensing
- Low-profile linear design with minimal height above luminaire
- Bluetooth:
- Yes
- Package Size:
- Each
