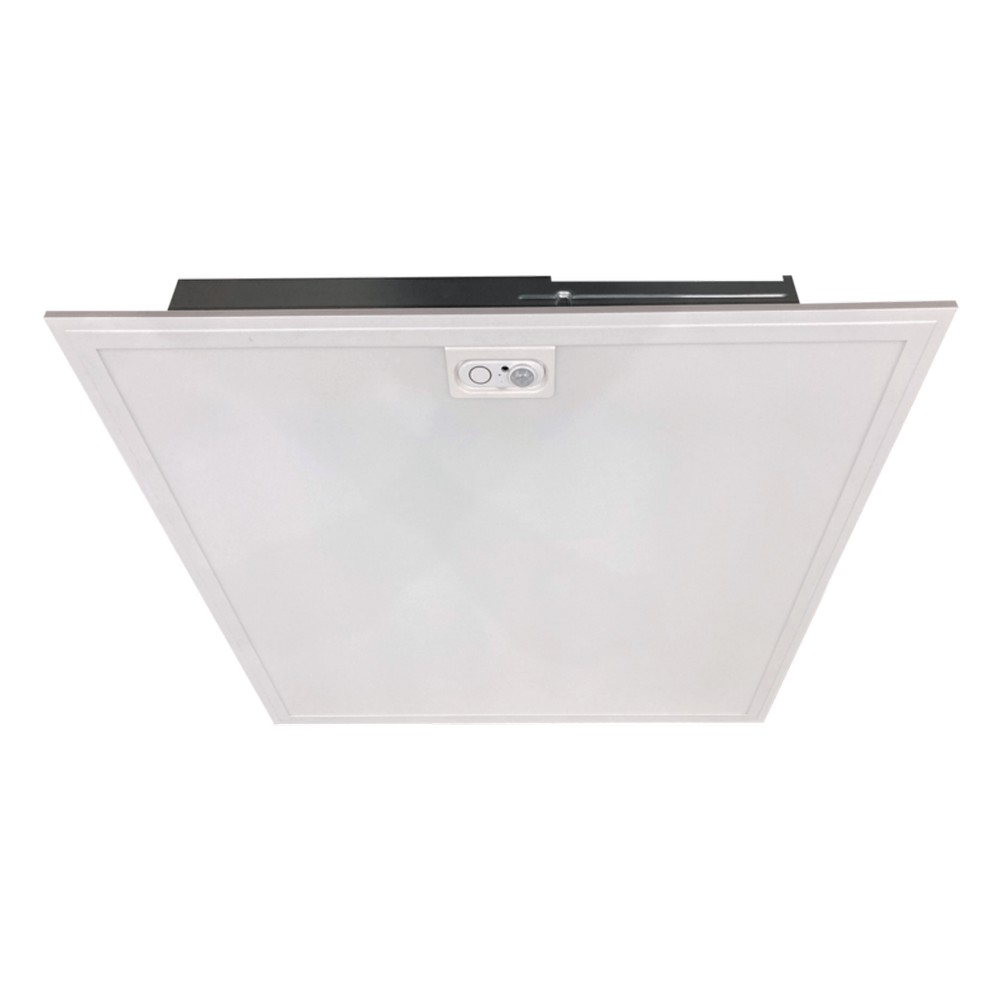

The Litetronics PT2AN is a 2’ x 2’ LED light panel designed to retrofit into standard grid ceilings and deliver high-efficiency illumination for commercial interiors. It combines a modern, low-profile panel with smart features that support energy management and occupant comfort, including occupancy sensing and daylight harvesting. The integration with the LiteSmart app and Bluetooth connectivity enables group control, scene configurations, and custom settings from mobile devices, simplifying commissioning and day-to-day adjustments. This generation supports quick setup via IR programming when used with the SCR054 control (sold separately), streamlining installation in new or existing layouts.
Constructed as a 2x2 luminaire with a white finish, the PT2AN offers a broad 110-degree beam angle and a rated lifetime suitable for long-term installations. It provides selectable color temperatures and wattage options, delivering up to 6,250 lumens with a color rendering index of 80, and a luminous efficacy around 125 lumens per watt. The unit operates on a wide voltage range (120–277 V) and is suitable for damp locations, helping reduce energy use without sacrificing illumination quality. The fixture emphasizes efficiency and control, supporting rapid on/off behavior with instant-on and instant-bright performance characteristics while maintaining a power factor that aligns with modern electrical systems.
Practical use of the PT2AN includes ceiling grid installations in offices, retail, or educational spaces where a clean aesthetic and smart control are advantageous. It can be surface-mounted, suspended, or recessed into drywall ceilings, providing flexibility for varying architectural conditions. For maintenance and sizing considerations, refer to the package and mounting guidelines, and plan for the 10-year warranty horizon typical of this family, which reflects its long-term suitability for commercial environments.
Features:
- FCC compliant
- Instant On and Instant Bright
- Dimmable operation
- Selectable CCT: 3500K, 4000K, 5000K
- 2x2 LED panel, 6250 lumens
- 125 lm/W, 110° beam angle
- Voltage range: 120-277V
- Shape:
- 2x2
- Brand:
- LED Light Panel
- Watts:
- 36
- Voltage:
- 120-277
- Average Rated Life:
- 100000
- Luminaire Lumens:
- 6250
- CRI:
- 80
- Color Temp:
- 3500K | 4000K | 5000K
- Finish:
- White
- Operating Temp:
- -4°F to 104°F (-20 Degrees C to 40 Degrees C)
- Power Factor:
- >
- Warranty:
- 10 Years
- Beam Angle:
- 110°
- THD:
- ? 20%
- Lumens/Watt:
- 125
- Suitable for Damp Locations:
- Yes
- Package Size:
- Each
