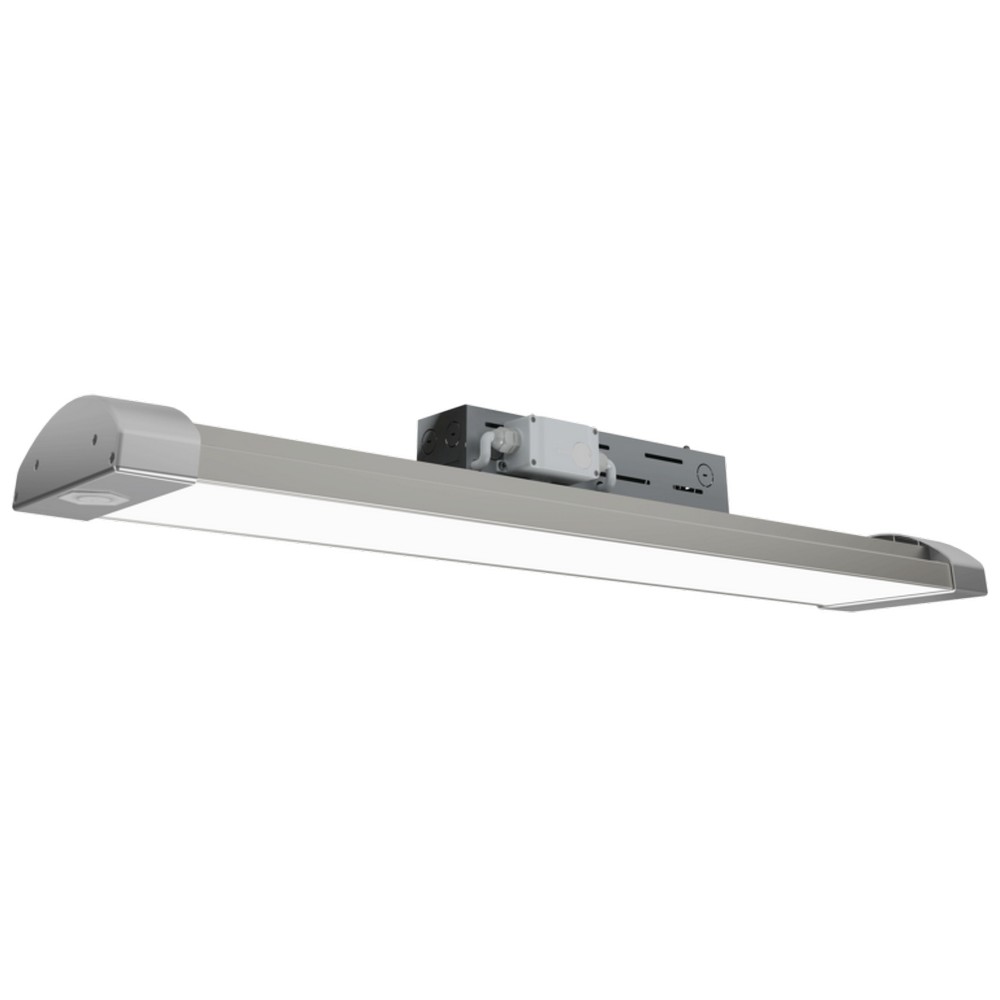

The Litetronics LHB248 is a high-performance LED linear high bay designed for industrial and warehouse applications where high light levels and flexibility are essential. Delivering 248 watts of power with a luminous output around 39,840 lumens, this fixture provides bright, wide-area illumination suitable for tall-ceiling spaces. It operates at a 120–277 V range and offers selectable correlated color temperatures of 4000K or 5000K, enabling installers to tailor color temperature to the specific task or environment. The design emphasizes energy efficiency with a high lumen-per-watt ratio and a solid dimmable capability, contributing to potential energy savings in facilities where lighting is a significant operational cost.

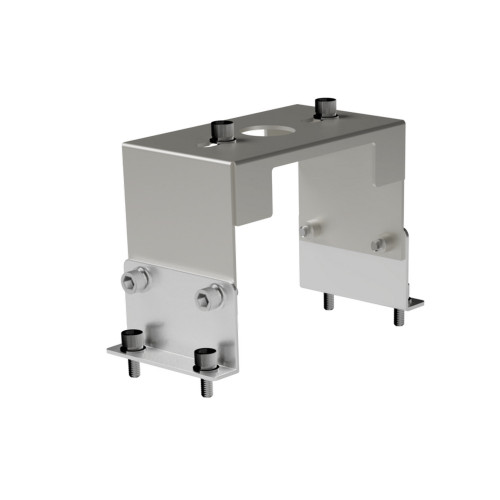

Constructed to support varied installation scenarios, the unit ships with suspension cables and a 10-foot cord for straightforward mounting and power delivery. A single mounting kit accommodates both pendant and surface mounts, simplifying upgrades from traditional linear fluorescent fixtures and reducing installation complexity. The high bay is compatible with sensing options, including a pluggable sensor for occupancy and daylight harvesting, which can be adjusted via remote control, and a Smart Sensor that offers group-level management through the LiteSmart mobile app. These features help optimize energy use in spaces with changing occupancy or daylight conditions, provided the appropriate control components are installed.
In terms of performance and longevity, the fixture offers a robust 100,000-hour average rated life and a color rendering index around 80, with a 110-degree beam angle to help illuminate large work areas evenly. The combination of selectable CCT, controllable sensing options, and durable construction makes the LHB248 a versatile option for warehouses, manufacturing floors, and other high-ceiling environments that require reliable illumination with flexible control capabilities.
Features:
- Dimmable
- Instant On
- FCC compliant
- DLC Premium
- 248W LED Linear High Bay
- Selectable Color Temperature (4000K / 5000K)
- Lumens: 39,840, Lumens per Watt: 160
- CRl 80, Color Temp options for flexibility
- Voltage: 120-277V
- Brand:
- LED Linear High Bay
- Watts:
- 248
- Voltage:
- 120-277
- Average Rated Life:
- 100,000
- Luminaire Lumens:
- 39,840
- CRI:
- 80
- Color Temp:
- 4000, 5000
- Operating Temp:
- '-4°F - 113°F
- Power Factor:
- >
- Warranty:
- Up to 10 Years
- Beam Angle:
- 110°
- Lumens/Watt:
- 160
- Package Size:
- Each
