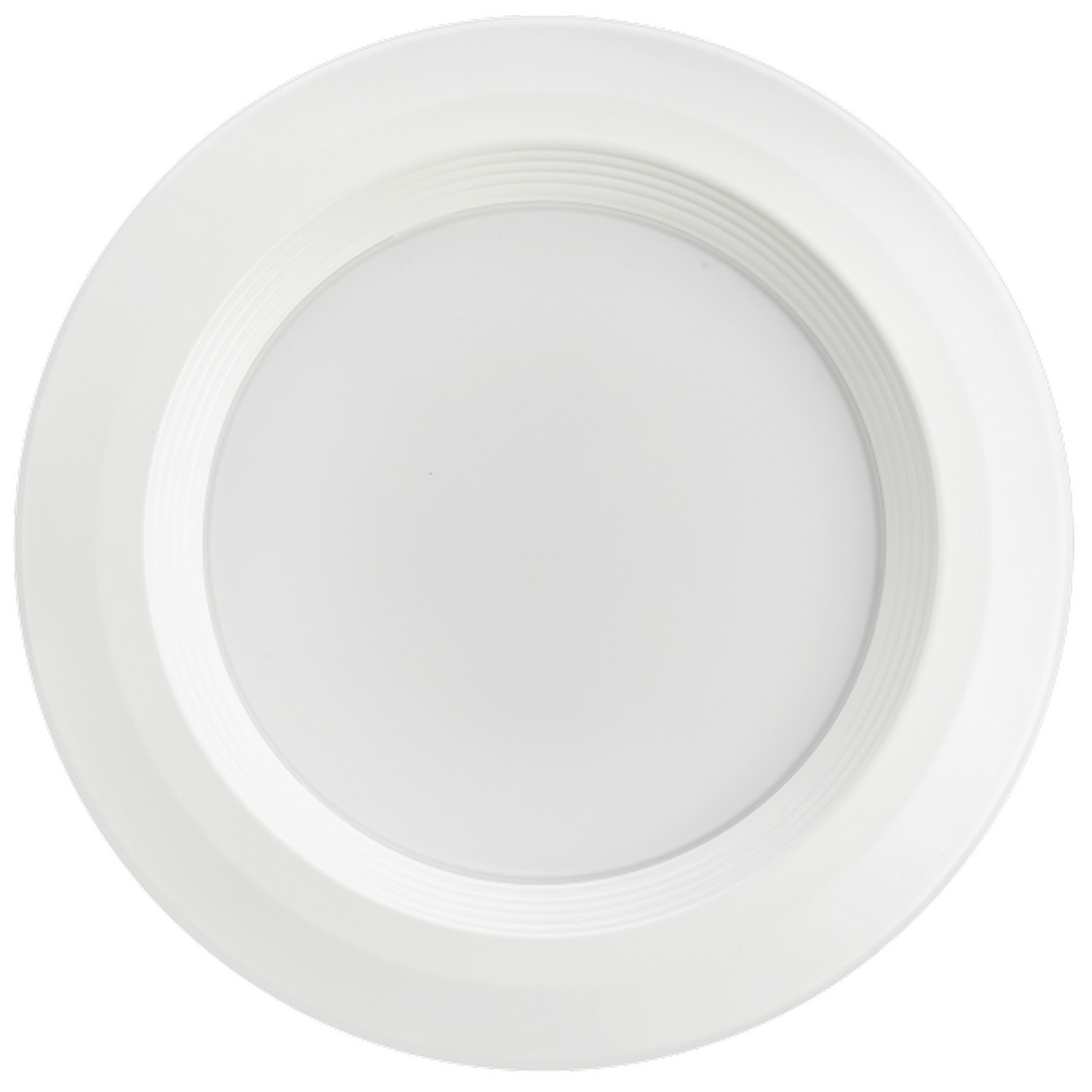

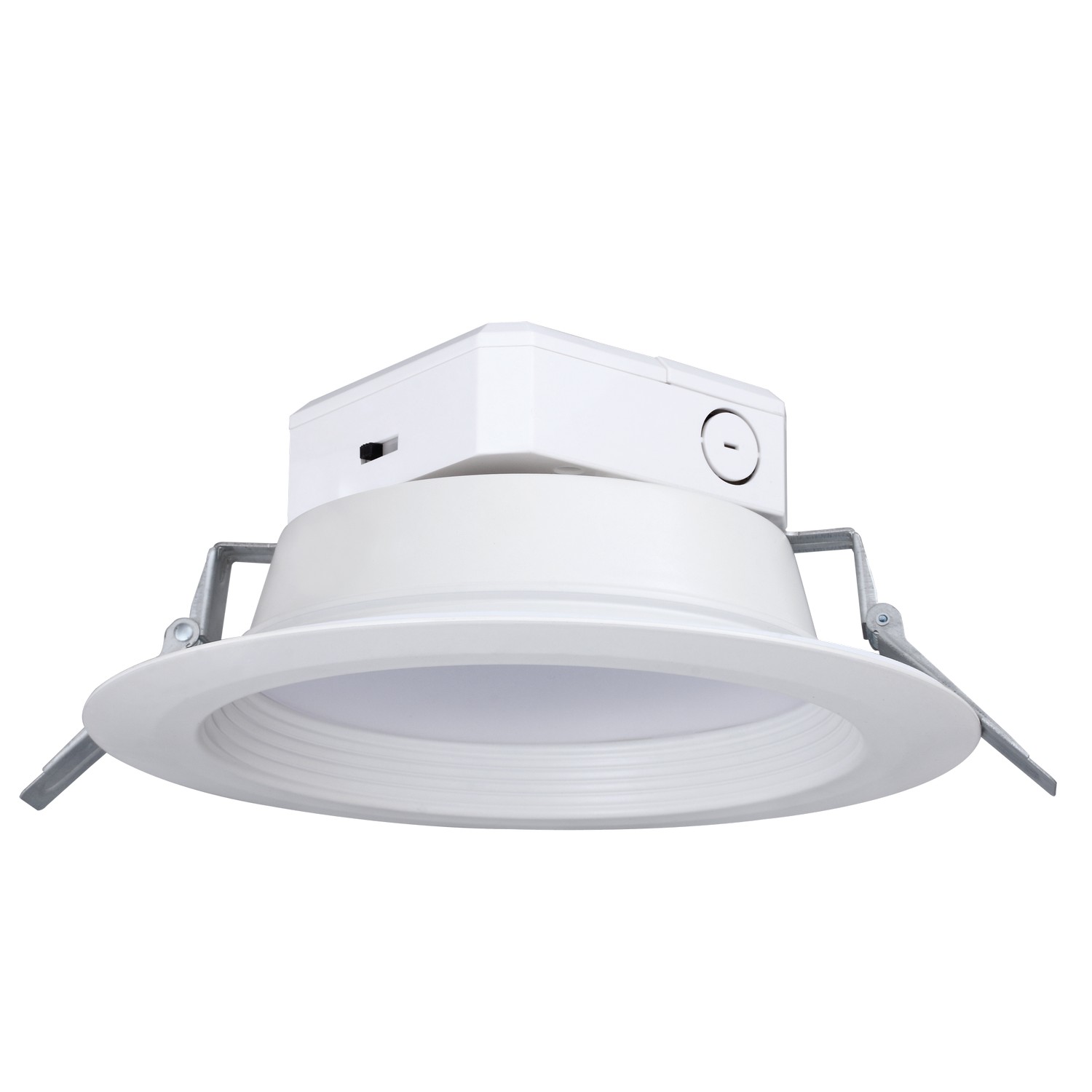

ETI DL-8-30-903-MV-D 8"/10" 4 CCT Color Preference Commercial Downlight, 3000 Lumens, 90CRI - 0-10V Dimming

The ETI DL-8-30-903-MV-D is a configurable commercial downlight designed to deliver high-quality illumination with flexible color options. This 8-inch/10-inch fixture supports four selectable correlated color temperatures (CCT)—3000K, 3500K, 4000K, or 5000K—allowing both installers and end users to tailor the light to specific spaces or tasks. The selectable CCT feature is intended to reduce inventory and adapt to varied user needs, as it can be chosen before or after installation. With a 3000 lumen output and a color rendering index of 90, the downlight aims to provide bright, vibrant lighting suitable for commercial environments while maintaining efficiency with a reported 75 lumens per watt performance. The unit operates on a 120-277V multi-voltage supply and is 0-10V dimmable, enabling integrated lighting control and smoother on/off transitions in dimming circuits.

Construction and key features include 40W of input power and an IC-rated design permitting direct contact with ceiling insulation, which can simplify installation in insulated ceilings and enhance energy efficiency by reducing heat transfer concerns. The downlight also meets NECA 410.16 requirements, which informs its compliance with certain electrical and installation standards. A 100-degree beam angle provides a broad yet focused coverage pattern, suitable for general area lighting in offices, lobbies, and other commercial spaces. The product is built to accommodate both new construction and can-less installations, supporting versatile installation scenarios where traditional housings aren’t present or preferred.

When selecting this downlight, consider room size, mounting depth, and the need for uniform color temperature consistency across areas. The 120-277V input and 0-10V dimming support common building automation and dimming systems, enabling smoother integration into existing electrical and control schemes. This unit’s four CCT options help reduce stocking multiple fixed-tone fixtures while offering precise, user-preferred illumination. No additional specifications beyond those provided are assumed here, and any installation planning should verify compatibility with existing ceiling and control systems.

Features:

• Color Preference Technology with 4 CCTs: 3000K, 3500K, 4000K, 5000K
• 40W LED downlight delivering ~3000 lumens
• 90 CRI for accurate color rendering
• 0-10V dimmable for lighting control
• 120-277V universal input
• IC Rated for direct contact with insulation
• Meets NECA 410.16 requirement
